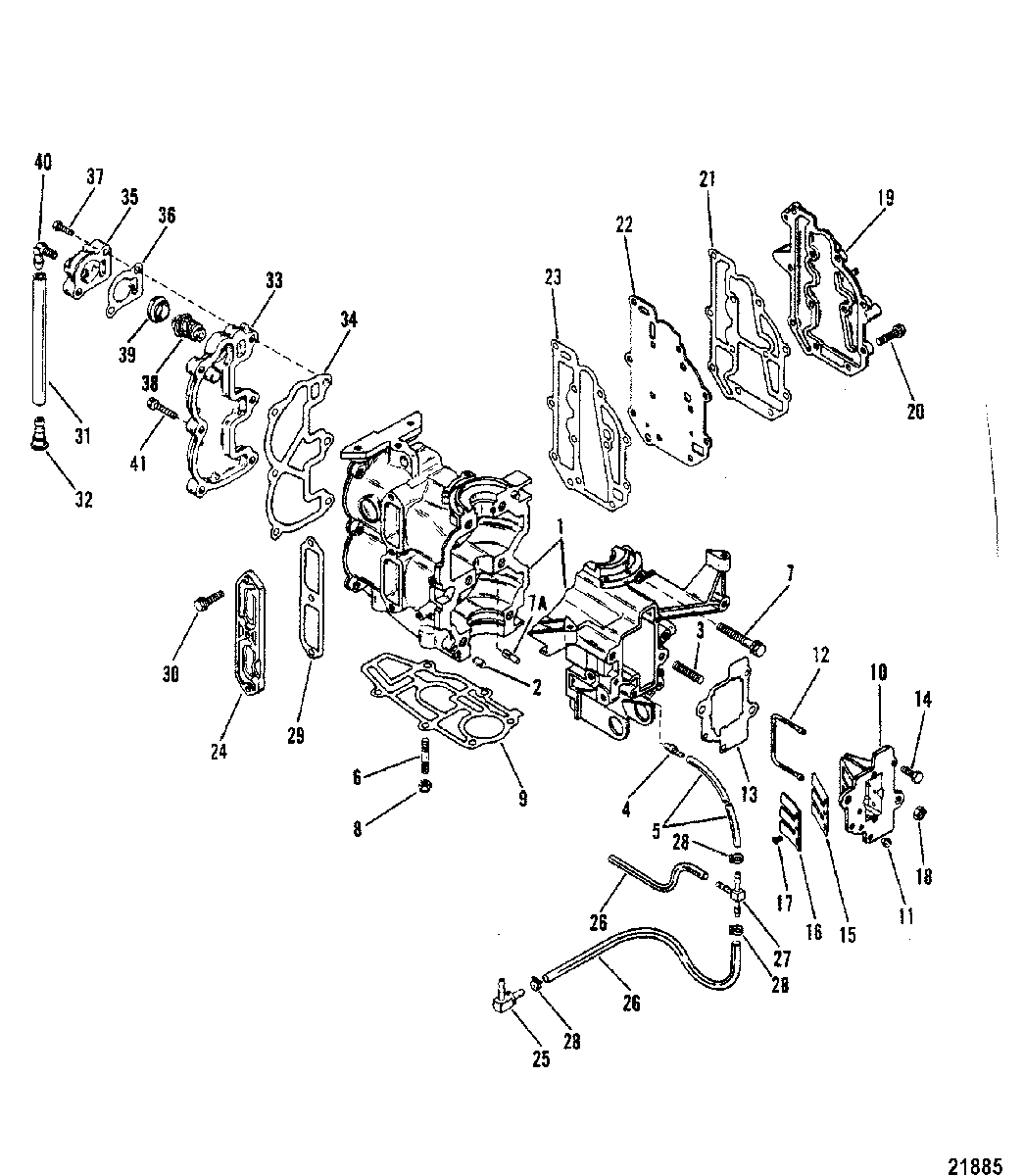

CYLINDER BLOCK AND COVERS для Mercury - 15 9542620 THRU 9792199

№

Артикул

Название
1

875-8473T20 CYLINDER BLOCK ASSEMBLY
(USEW/W/MC-20/20A/20B CARB)

CYLINDER BLOCK ASSEMBLY
(USEW/W/MC-20/20A/20B CARB)

62 620 ₽
1

875-8473T21 CYLINDER BLOCK ASSEMBLY
(6/8/9.9)

CYLINDER BLOCK ASSEMBLY
(6/8/9.9)

61 170 ₽
1

881-9727T2 CYLINDER BLOCK
(15)

CYLINDER BLOCK
(15)

0 ₽
2

17-85171 PIN, Dowel, CYLINDER BLOCK

PIN, Dowel, CYLINDER BLOCK

280 ₽
3

16-424632 STUD, CARBURETOR

STUD, CARBURETOR

880 ₽
4

21-426982 CHECK VALVE, BLEED HOSE

CHECK VALVE, BLEED HOSE

1 340 ₽
5

32-99130100 HOSE, BLEED

HOSE, BLEED

2 940 ₽
6

16-8161949 STUD, CYLINDER BLOCK

STUD, CYLINDER BLOCK

810 ₽
7

10-421251 SCREW, (M8 x 55), CRANKCASE TO CYLINDER BLOCK

SCREW, (M8 x 55), CRANKCASE TO CYLINDER BLOCK

340 ₽
7A

17-17866 PIN, Groove
(15)

PIN, Groove
(15)

270 ₽
8

11-401386 NUT, (M6), CYLINDER BLOCK STUD

NUT, (M6), CYLINDER BLOCK STUD

330 ₽
9

27-191861 GASKET, Powerhead

GASKET, Powerhead

1 590 ₽
10

828435A3 REED BLOCK ASSEMBLY

REED BLOCK ASSEMBLY

13 570 ₽
11

21-42657A3 CHECK VALVE

CHECK VALVE

460 ₽
12

26-42137 SEAL, REED BLOCK

SEAL, REED BLOCK

210 ₽
13

27-195982 GASKET, REED BLOCK

GASKET, REED BLOCK

660 ₽
14

10-4000171 SCREW, (M6 x 16), REED BLOCK

SCREW, (M6 x 16), REED BLOCK

100 ₽
15

34-825141 REED

REED

720 ₽
16

828435A3 STOP, Reed

STOP, Reed

13 570 ₽
17

10-4005764 SCREW, (M3.5 x 8), REED ATTACHING

SCREW, (M3.5 x 8), REED ATTACHING

0 ₽
18

11-400213 NUT, (M8) Stainless Steel, CARBURETOR STUD

NUT, (M8) Stainless Steel, CARBURETOR STUD

180 ₽
19

8M0048005 COVER, EXHAUST

COVER, EXHAUST

6 030 ₽
20

10-40062129 SCREW, (M6 x 25), EXHAUST COVER TO CYLINDER BLOCK

SCREW, (M6 x 25), EXHAUST COVER TO CYLINDER BLOCK

70 ₽
21

27-19185 GASKET, EXHAUST COVER

GASKET, EXHAUST COVER

590 ₽
22

42365 PLATE, Baffle

PLATE, Baffle

3 410 ₽
23

27-19184 GASKET, BAFFLE PLATE

GASKET, BAFFLE PLATE

590 ₽
24

19107F1 COVER, Intake
FITTING IS INSTALLED IN BLOCK

COVER, Intake
FITTING IS INSTALLED IN BLOCK

5 120 ₽
25

22-56759 FITTING, Barbed
FITTING IS INSTALLED IN BLOCK

FITTING, Barbed
FITTING IS INSTALLED IN BLOCK

710 ₽
24

17863A1 COVER ASSEMBLY, Intake
ELBOW IS INSTALLED IN INTAKE COVER

COVER ASSEMBLY, Intake
ELBOW IS INSTALLED IN INTAKE COVER

0 ₽
25

22-15133 FITTING
ELBOW IS INSTALLED IN INTAKE COVER

FITTING
ELBOW IS INSTALLED IN INTAKE COVER

810 ₽
26

32-99130100 HOSE

HOSE

2 940 ₽
27

22-59169003 FITTING

FITTING

870 ₽
28

56762 TIE STRAP, (4.00 Inches)

TIE STRAP, (4.00 Inches)

30 ₽
29

27-192031 GASKET, INTAKE COVER

GASKET, INTAKE COVER

430 ₽
30

10-40062129 SCREW, (M6 x 25), COVER TO CYLINDER BLOCK

SCREW, (M6 x 25), COVER TO CYLINDER BLOCK

70 ₽
31

32-8M0108355 LINE, (57.00 Inches Bulk), TELL TALE

LINE, (57.00 Inches Bulk), TELL TALE

5 260 ₽
32

22-94848 FITTING, TELL TALE HOSE-BOTTOM COWL

FITTING, TELL TALE HOSE-BOTTOM COWL

320 ₽
33

1033-8906A02 COVER ASSEMBLY

COVER ASSEMBLY

23 220 ₽
34

27-19207002 GASKET

GASKET

1 270 ₽
35

8M0039352 COVER, THERMOSTAT

COVER, THERMOSTAT

18 660 ₽
36

27-19205002 GASKET

GASKET

390 ₽
37

10-40062129 SCREW, (M6 x 25)

SCREW, (M6 x 25)

70 ₽
38

14586 THERMOSTAT (120)

THERMOSTAT (120)

6 280 ₽
39

27-62386001 GASKET, THERMOSTAT

GASKET, THERMOSTAT

350 ₽
40

22-291112 CONNECTOR (STRAIGHT)(NEW DESIGN)

CONNECTOR (STRAIGHT)(NEW DESIGN)

630 ₽
40

22-996642 ELBOW (OLD DESIGN)

ELBOW (OLD DESIGN)

200 ₽
41

10-40062129 SCREW, (M6 x 25), COVER ATTACHING

SCREW, (M6 x 25), COVER ATTACHING

70 ₽
-

12893T97 POWERHEAD ASSEMBLY
(6) (Use with WMC-20/20A Carb)

POWERHEAD ASSEMBLY
(6) (Use with WMC-20/20A Carb)

214 250 ₽
-

12893T97 POWERHEAD ASSEMBLY
(6) (Use with WMC-20B Carb)

POWERHEAD ASSEMBLY
(6) (Use with WMC-20B Carb)

214 250 ₽
-

811686T97 POWERHEAD ASSEMBLY, Complete
(6/8/9.9)

POWERHEAD ASSEMBLY, Complete
(6/8/9.9)

145 480 ₽
-

19072T88 POWERHEAD ASSEMBLY, Complete
(15)

POWERHEAD ASSEMBLY, Complete
(15)

210 080 ₽
