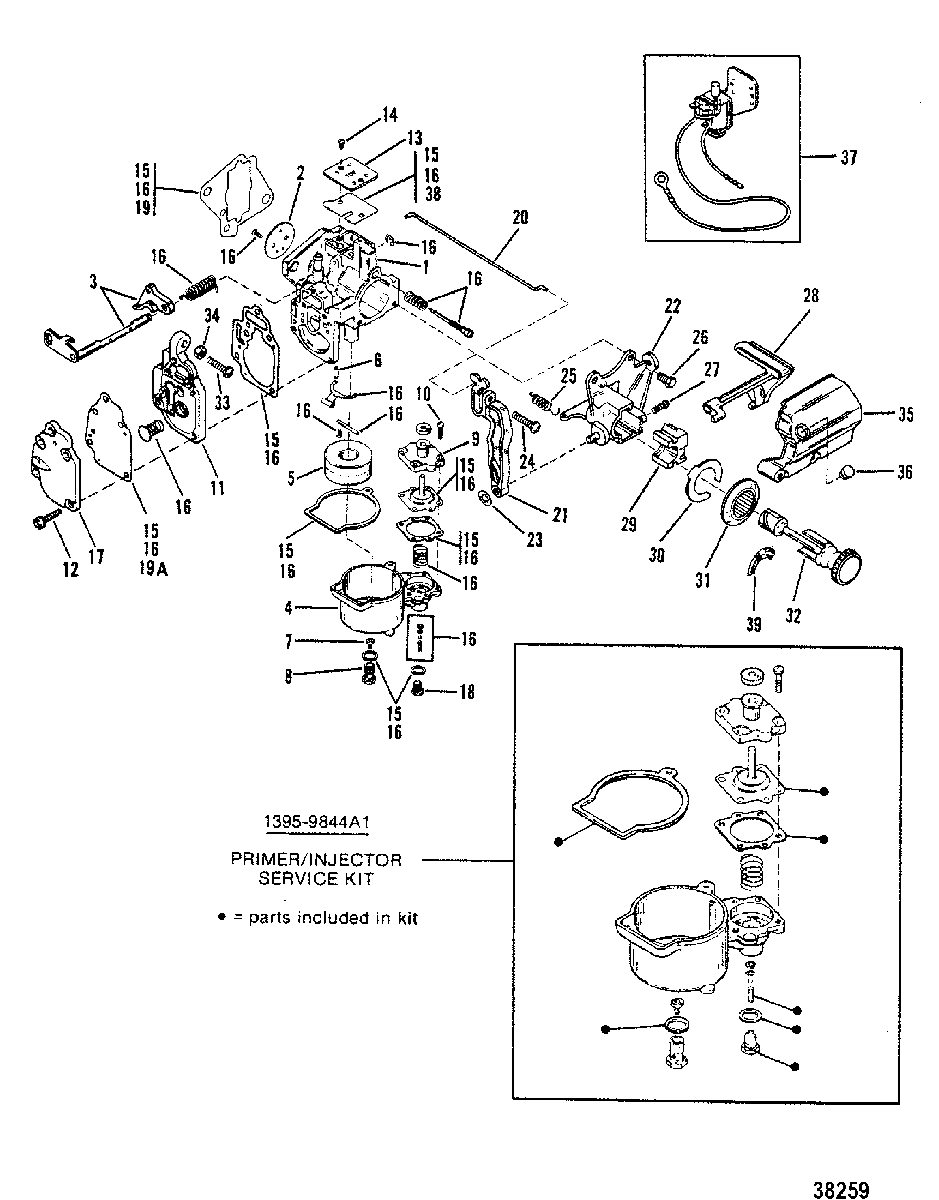

CARBURETOR , WMC 1717B17C1818A18B20/20A/20B23 для Mercury - 15 9542620 THRU 9792199
-
№АртикулНазвание
-
11392-9503T21 CARBURETOR (6)(WMC-20B)CARBURETOR (6)(WMC-20B)
-
11392-9266T22 CARBURETOR (8)(WMC-18B)CARBURETOR (8)(WMC-18B)
-
11392-8846A24 CARBURETOR (9.9)(WMC-23)CARBURETOR (9.9)(WMC-23)
-
21395-9473 VALVE, ThrottleVALVE, Throttle
-
2815133 VALVE, Throttle (WMC-23)VALVE, Throttle (WMC-23)
-
31395-804707 SHAFT, Throttle (WMC-17/18/20)SHAFT, Throttle (WMC-17/18/20)
-
31395-804707 SHAFT (WMC-17C/18A/18B/20A/20B)SHAFT (WMC-17C/18A/18B/20A/20B)
-
3813022 SHAFT, Throttle (WMC-23)(INCL.SCREW/SPRING)SHAFT, Throttle (WMC-23)(INCL.SCREW/SPRING)
-
41395-9164 BOWL, FuelBOWL, Fuel
-
51395-91691 FLOATFLOAT
-
61395-803861 VALVEVALVE
-
71399-5315 JET, Main Fuel (.042) (6)JET, Main Fuel (.042) (6)
-
71399-5317 JET, (.046) (8)JET, (.046) (8)
-
71399-5213 JET, Main (.056) (9.9)JET, Main (.056) (9.9)
-
71395-6359 JET, (.052) (9.9)JET, (.052) (9.9)
-
81395-9171 PLUG, JET RETAINERPLUG, JET RETAINER
-
9813618 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
101395-9697 SCREW (WMC-17/18/20)SCREW (WMC-17/18/20)
-
101395-9697 SCREW (WMC-17B/17C/18A/18B/20A/20B/23)SCREW (WMC-17B/17C/18A/18B/20A/20B/23)
-
111395-9702 BODYBODY
-
121395-9643 SCREW, FUEL PUMP COVERSCREW, FUEL PUMP COVER
-
131395-9177 PLATE (WMC-17/18/20)PLATE (WMC-17/18/20)
-
131395-9699 PLATE (WMC-17B/17C/18A/18B/20A/20B/23)PLATE (WMC-17B/17C/18A/18B/20A/20B/23)
-
141395-9696 SCREW (WMC-17/18/20)SCREW (WMC-17/18/20)
-
141395-9696 SCREW (WMC-17B/17C/18A/18B/20A/20B/23)SCREW (WMC-17B/17C/18A/18B/20A/20B/23)
-
151395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
161395-96481 REPAIR PARTS KITREPAIR PARTS KIT
-
161395-8237072 REPAIR KIT (WMC-23)REPAIR KIT (WMC-23)
-
171395-9637 COVER, FUEL PUMPCOVER, FUEL PUMP
-
181395-9762 PLUGPLUG
-
1927-192061 GASKET, CarburetorGASKET, Carburetor
-
19A1395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
20445541 IDLE WIREIDLE WIRE
-
21128053 LEVER, Fast IdleLEVER, Fast Idle
-
2212803 BRACKET, PrimerBRACKET, Primer
-
2311-821979 PUSH NUTPUSH NUT
-
2410-12110 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
2524-11277 SPRING, TensionSPRING, Tension
-
2610-40056110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
2610-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
2710-79965 SCREW, (#8-32 x .500) Stainless SteelSCREW, (#8-32 x .500) Stainless Steel
-
28112731 LEVER, PrimerLEVER, Primer
-
2911280 CAM BLOCKCAM BLOCK
-
3053-11278 CLIP, RetainingCLIP, Retaining
-
3112804A1 BEZEL ASSEMBLY, ChokeBEZEL ASSEMBLY, Choke
-
32128022 PRIMER KNOBPRIMER KNOB
-
3310-40056110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
3310-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
-
3411-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
3517442 COVERCOVER
-
3619-47579 PLUGPLUG
-
371395-823433 CHOKE, ElectricCHOKE, Electric
-
3827-44426 GASKET, ELECTRIC CHOKEGASKET, ELECTRIC CHOKE
-
3937-129701 DECAL (SLOW/FAST)DECAL (SLOW/FAST)
