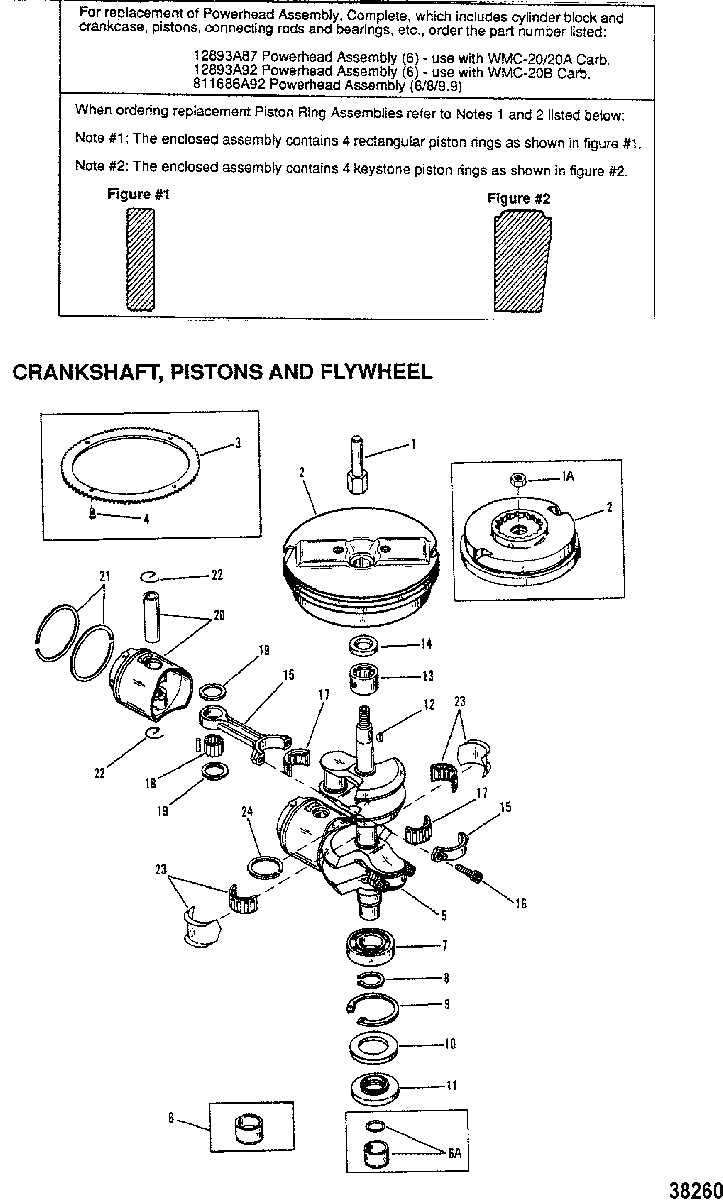

CRANKSHAFT, PISTONS AND FLYWHEEL (6/8/9.9) для Mercury - 15 9542620 THRU 9792199

  • №
    Артикул
    Название
  • 1
    42691 SHAFT, FLYWHEEL
    (USE WITH STUB SHAFT)
    SHAFT, FLYWHEEL
    (USE WITH STUB SHAFT)
  • 1A
    11-818591 NUT, (M14)
    NUT, (M14)
  • 2
    260-859231T6 FLYWHEEL ASSEMBLY
    (USE WITH STUB SHAFT)
    FLYWHEEL ASSEMBLY
    (USE WITH STUB SHAFT)
  • 2
    260-859231T19 FLYWHEEL ASSEMBLY
    (USE WITH NUT)
    FLYWHEEL ASSEMBLY
    (USE WITH NUT)
  • 3
    43-99301 RING GEAR, FLYWHEEL
    RING GEAR, FLYWHEEL
  • 4
    10-88190313 SCREW, (M5 x 13), RING GEAR TO FLYWHEEL
    SCREW, (M5 x 13), RING GEAR TO FLYWHEEL
  • 5
    400-8M0083309 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 6
    818630A1 SEAL, Oil (DESIGN I)
    SEAL, Oil (DESIGN I)
  • 6A
    818630A1 SLEEVE (INCLUDES O-RING - DESIGN II)
    SLEEVE (INCLUDES O-RING - DESIGN II)
  • 7
    30-41341 BEARING, Ball, LOWER
    BEARING, Ball, LOWER
  • 8
    53-20940 RING, Snap (SMALL) (OLD DESIGN)
    RING, Snap (SMALL) (OLD DESIGN)
  • 9
    53-42132 RING, Retaining
    RING, Retaining
  • 10
    12-13031 WASHER, LOWER
    WASHER, LOWER
  • 11
    26-125661 SEAL, Oil - Lower
    SEAL, Oil - Lower
  • 12
    28-20094 KEY, Woodruff
    KEY, Woodruff
  • 13
    31-878158 BEARING, Roller
    BEARING, Roller
  • 14
    26-125671 SEAL, Oil - Upper
    SEAL, Oil - Upper
  • 15
    637-8477A2 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 16
    10-823460 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 17
    31-42076A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 18
    29-42186 BEARING, Needle, PISTON END
    BEARING, Needle, PISTON END
  • 19
    12-8M0012297 BEARING, Thrust
    BEARING, Thrust
  • 20
    773-9756T2 PISTON ASSEMBLY
    PISTON ASSEMBLY
  • 21
    39-42079A4 RING ASSEMBLY
    (CONTAINS 4 RECTANGULAR PISTON RINGS AS SHOW IN FIGURE #1)
    RING ASSEMBLY
    (CONTAINS 4 RECTANGULAR PISTON RINGS AS SHOW IN FIGURE #1)
  • 21
    39-18514A4 RING SET, Piston
    (CONTAINS 4 KEYSTONE PISTON RINGS AS SHOWN IN FIGURE #2)
    RING SET, Piston
    (CONTAINS 4 KEYSTONE PISTON RINGS AS SHOWN IN FIGURE #2)
  • 22
    40-42202 LOCK RING
    LOCK RING
  • 23
    41373A1 BEARING KIT, Center Main, MAIN BEARING
    BEARING KIT, Center Main, MAIN BEARING
  • 24
    26-818901 SEAL, MAIN BEARING
    SEAL, MAIN BEARING
  • -
    12893T97 POWERHEAD ASSEMBLY, COMPLETE
    (6)(USE WITH WMC-20/20A CARB.)
    POWERHEAD ASSEMBLY, COMPLETE
    (6)(USE WITH WMC-20/20A CARB.)
  • -
    12893T97 POWERHEAD ASSEMBLY, COMPLETE
    (6) (USE WITH WMC-20B CARB.)
    POWERHEAD ASSEMBLY, COMPLETE
    (6) (USE WITH WMC-20B CARB.)
  • -
    811686T97 POWERHEAD ASSEMBLY, Complete
    (6/8/9.9)
    POWERHEAD ASSEMBLY, Complete
    (6/8/9.9)
