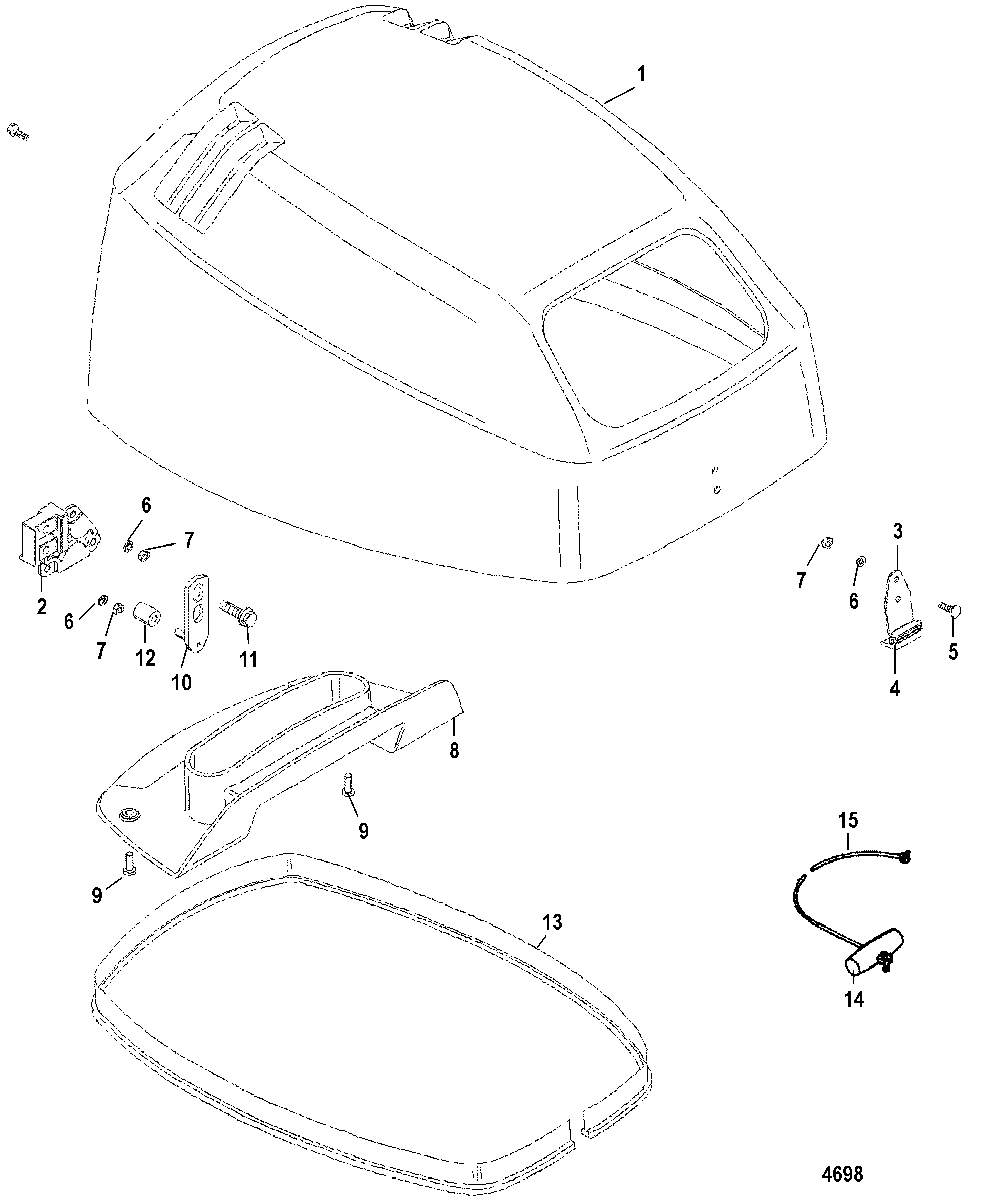

Top Cowl для Mercury - 15 (4-STROKE) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    114-852413T3 TOP COWL ASSEMBLY
    (BLACK)
    TOP COWL ASSEMBLY
    (BLACK)
  • 1
    114-852413T4 TOP COWL ASSEMBLY
    (SILVER)
    TOP COWL ASSEMBLY
    (SILVER)
  • 2
    852490F BRACKET
    BRACKET
  • 3
    827702T COVER
    COVER
  • 4
    826649 LATCH
    LATCH
  • 5
    10-8231872 SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 6
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 7
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 8
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 9
    NSS NOT SOLD SEPARATE, Screw (#10 X .5)
    NOT SOLD SEPARATE, Screw (#10 X .5)
  • 10
    852491A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 11
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 12
    18745 ROLLER
    ROLLER
  • 13
    8M0043391 SEAL, Cowl
    SEAL, Cowl
  • 14
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start
    ROPE AND HANDLE KIT, Manual/Emergency Start
  • 15
    NSS NOT SOLD SEPARATE, Rope
    NOT SOLD SEPARATE, Rope
