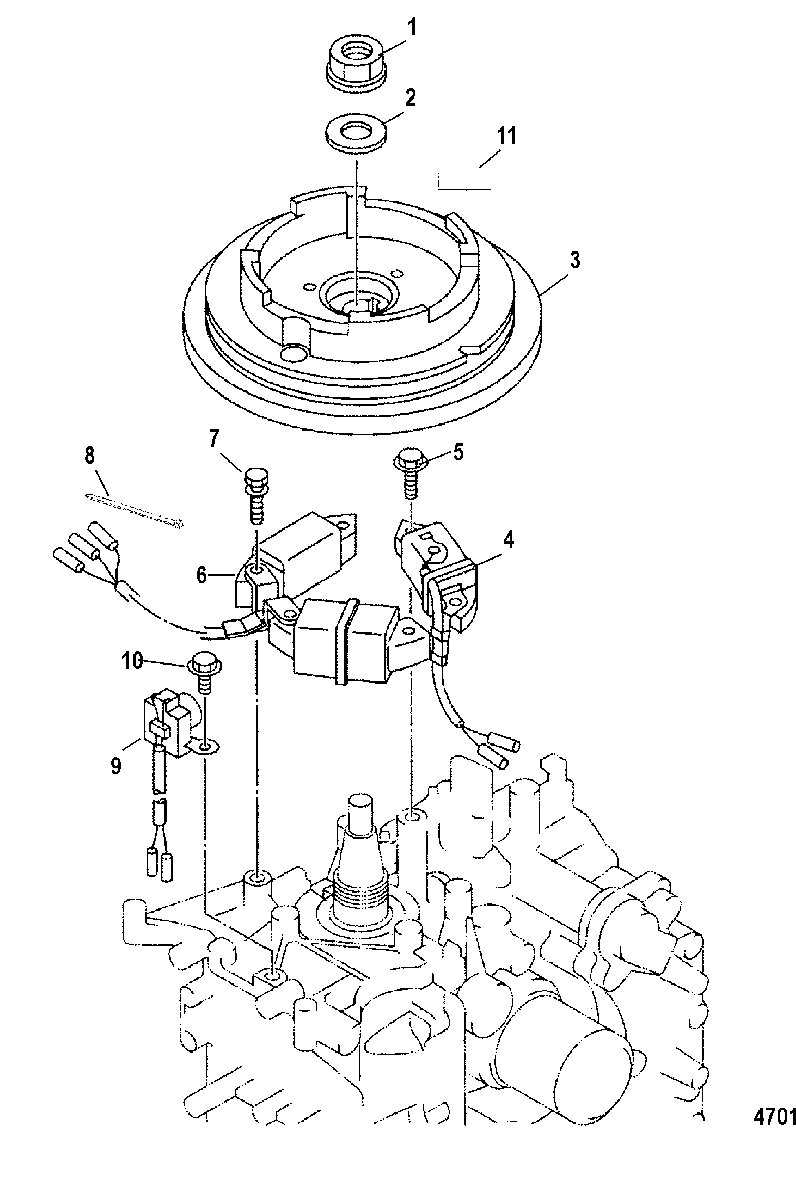

Flywheel для Mercury - 15 (4-STROKE) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    11-96650M NUT, (M16)
    NUT, (M16)
  • 2
    12-96651M WASHER
    WASHER
  • 3
    856031 FLYWHEEL
    (MANUAL)
    FLYWHEEL
    (MANUAL)
  • 3
    835397 FLYWHEEL
    (ELECTRIC)
    FLYWHEEL
    (ELECTRIC)
  • 4
    835399T COIL, Charging
    COIL, Charging
  • 5
    10-853536 BOLT, (M6 x 25)
    BOLT, (M6 x 25)
  • 6
    835387 COIL, Lighting
    (MANUAL)
    COIL, Lighting
    (MANUAL)
  • 6
    855944 COIL, Lighting
    (ELECTRIC)
    COIL, Lighting
    (ELECTRIC)
  • 7
    855782 BOLT (M6 X 30)
    (MANUAL)
    BOLT (M6 X 30)
    (MANUAL)
  • 7
    10-853531 BOLT, (M6 x 40)
    (ELECTRIC)
    BOLT, (M6 x 40)
    (ELECTRIC)
  • 8
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 9
    835395 PULSER
    PULSER
  • 10
    10-811188T BOLT, (M6 x 16)
    BOLT, (M6 x 16)
  • 11
    NSS NOT SOLD SEPARATE, Decal-Warning Neutral
    NOT SOLD SEPARATE, Decal-Warning Neutral
