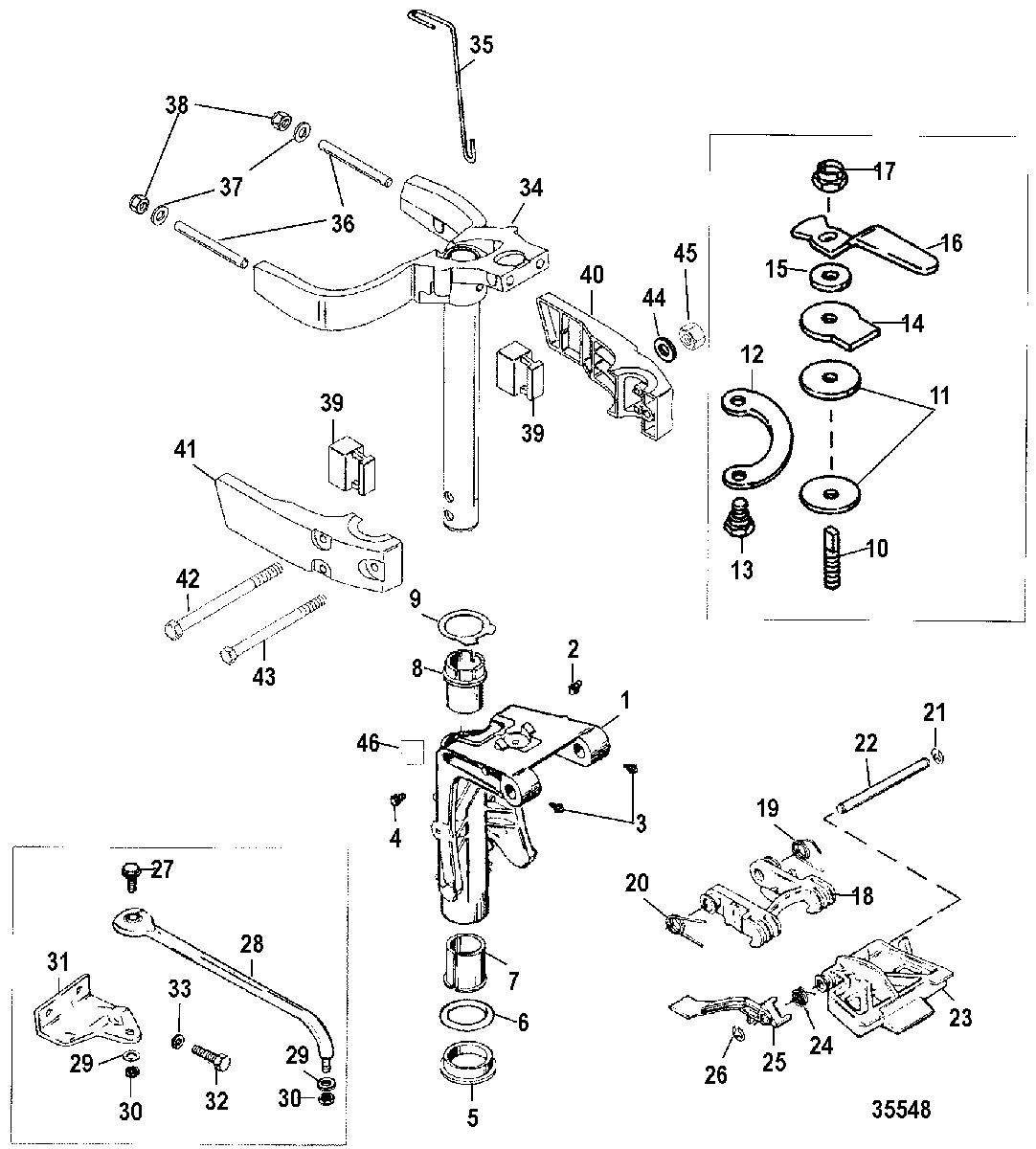

Swivel Bracket для Mercury - 15 (4-STROKE) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    3415-822237A3 SWIVEL BRACKET
    (BLACK)
    SWIVEL BRACKET
    (BLACK)
  • 1
    3415-822237A3 SWIVEL BRACKET
    (GRAY)
    SWIVEL BRACKET
    (GRAY)
  • 2
    22-74036 FITTING, Grease
    FITTING, Grease
  • 3
    22-74036 FITTING, Grease
    FITTING, Grease
  • 4
    22-74036 FITTING, Grease
    FITTING, Grease
  • 5
    23-855628A1 BUSHING
    BUSHING
  • 6
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 7
    NSS NOT SOLD SEPARATE, Bushing
    NOT SOLD SEPARATE, Bushing
  • 8
    NSS NOT SOLD SEPARATE, Bushing
    NOT SOLD SEPARATE, Bushing
  • 9
    NSS NOT SOLD SEPARATE, Washer
    NOT SOLD SEPARATE, Washer
  • 10
    821961 ROD
    HANDLE
    ROD
    HANDLE
  • 11
    8165621 DISC
    HANDLE
    DISC
    HANDLE
  • 12
    821958A1 PLATE KIT
    HANDLE
    PLATE KIT
    HANDLE
  • 13
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    HANDLE
    SCREW, (M6 x 13) Stainless Steel
    HANDLE
  • 14
    821957 BRAKE PLATE
    HANDLE
    BRAKE PLATE
    HANDLE
  • 15
    12-29330 WASHER
    HANDLE
    WASHER
    HANDLE
  • 16
    821959 HANDLE
    HANDLE
    HANDLE
    HANDLE
  • 17
    11-8M0042636 NUT, (.375-24)
    HANDLE
    NUT, (.375-24)
    HANDLE
  • 18
    98830A4 HOOK ASSEMBLY, Reverse Lock
    HOOK ASSEMBLY, Reverse Lock
  • 19
    24-96018 SPRING
    SPRING
  • 20
    24-97427 SPRING
    NON-HANDLE
    SPRING
    NON-HANDLE
  • 20
    24-879894 SPRING
    HANDLE
    SPRING
    HANDLE
  • 21
    53-13194 RING, Retaining
    HANDLE
    RING, Retaining
    HANDLE
  • 22
    17-13195 PIN
    HANDLE
    PIN
    HANDLE
  • 23
    12756 BRACKET
    HANDLE
    BRACKET
    HANDLE
  • 24
    24-12754 SPRING
    HANDLE
    SPRING
    HANDLE
  • 25
    12758 LEVER
    HANDLE
    LEVER
    HANDLE
  • 26
    53-13194 RING, Retaining
    HANDLE
    RING, Retaining
    HANDLE
  • 27
    10-849838 SCREW, (.375-24 x 1.25)
    ELECTRIC - NON-HANDLE
    SCREW, (.375-24 x 1.25)
    ELECTRIC - NON-HANDLE
  • 28
    41323A03 LINK ROD ASSEMBLY
    ELECTRIC - NON-HANDLE
    LINK ROD ASSEMBLY
    ELECTRIC - NON-HANDLE
  • 29
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
    ELECTRIC - NON-HANDLE
    WASHER, (.390 x .625 x .062) Stainless Steel
    ELECTRIC - NON-HANDLE
  • 30
    11-8M0042636 NUT, (.375-24)
    ELECTRIC - NON-HANDLE
    NUT, (.375-24)
    ELECTRIC - NON-HANDLE
  • 31
    96186A2 BRACKET ASSEMBLY
    (BLACK) ELECTRIC - NON-HANDLE
    BRACKET ASSEMBLY
    (BLACK) ELECTRIC - NON-HANDLE
  • 31
    96186A2 BRACKET, Ride Guide
    (GRAY) ELECTRIC - NON-HANDLE
    BRACKET, Ride Guide
    (GRAY) ELECTRIC - NON-HANDLE
  • 32
    10-1993325 SCREW, (M10 x 25 MM)
    ELECTRIC - NON-HANDLE
    SCREW, (M10 x 25 MM)
    ELECTRIC - NON-HANDLE
  • 33
    13-400248 LOCKWASHER, (M10)
    ELECTRIC - NON-HANDLE
    LOCKWASHER, (M10)
    ELECTRIC - NON-HANDLE
  • 34
    854801T2 SWIVEL HEAD ASSEMBLY
    (BLACK)
    SWIVEL HEAD ASSEMBLY
    (BLACK)
  • 34
    854801T2 SWIVEL HEAD ASSEMBLY
    (GRAY)
    SWIVEL HEAD ASSEMBLY
    (GRAY)
  • 35
    858338A3 SHAFT, Reverse Lock
    SHAFT, Reverse Lock
  • 36
    16-854819 STUD, (M10 x 1.5 x 97)
    STUD, (M10 x 1.5 x 97)
  • 37
    12-4002320 WASHER
    WASHER
  • 38
    11-4013610 NUT, (M10)
    NUT, (M10)
  • 39
    8M0039074 MOUNT
    MOUNT
  • 40
    854729T1 COVER
    (STARBOARD) (BLACK)
    COVER
    (STARBOARD) (BLACK)
  • 40
    854729T2 COVER
    (STARBOARD) (GRAY)
    COVER
    (STARBOARD) (GRAY)
  • 41
    854728T1 COVER
    (PORT) (BLACK)
    COVER
    (PORT) (BLACK)
  • 41
    854728T1 COVER
    (PORT) (GRAY)
    COVER
    (PORT) (GRAY)
  • 42
    10-19943100 SCREW, (M8 x 100)
    SCREW, (M8 x 100)
  • 43
    10-1994360 SCREW, (M8 x 60)
    SCREW, (M8 x 60)
  • 44
    12-36001 WASHER
    WASHER
  • 45
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 46
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
