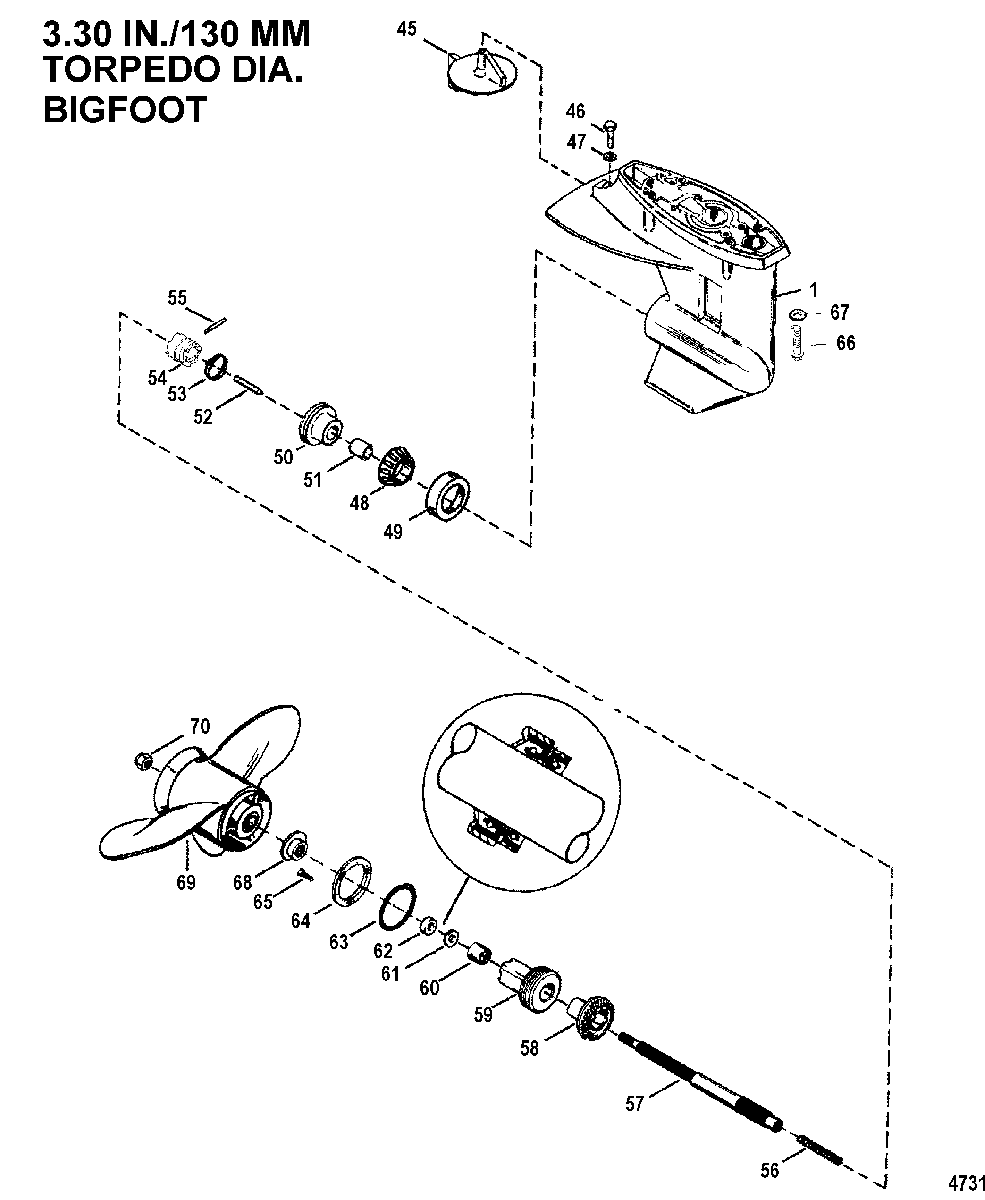

Gear Housing, Propeller Shaft - 2.42:1 Gear Ratio для Mercury - 15 (4-STROKE) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • -
    1665-8669T33 GEAR HOUSING ASSEMBLY, Complete-Black
    GEAR HOUSING ASSEMBLY, Complete-Black
  • -
    1665-8669T33 GEAR HOUSING ASSEMBLY, Complete-Gray
    GEAR HOUSING ASSEMBLY, Complete-Gray
  • 1
    1600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Black
    GEAR HOUSING ASSEMBLY, Basic-Black
  • 1
    1600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Gray
    GEAR HOUSING ASSEMBLY, Basic-Gray
  • 45
    97-98432Q6 TRIM TAB
    TRIM TAB
  • 46
    10-4000354 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 47
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
    WASHER, (.323 x .563 x .063) Stainless Steel
  • 48
    31-8M0103470 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 49
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 50
    43-854496A1 GEAR ASSEMBLY, Forward - 12/29
    GEAR ASSEMBLY, Forward - 12/29
  • 51
    23-85557 BUSHING
    BUSHING
  • 52
    85094 FOLLOWER, Cam
    FOLLOWER, Cam
  • 53
    24-38114 SPRING
    SPRING
  • 54
    52-41040T1 CLUTCH
    CLUTCH
  • 55
    17-8M0020999 PIN
    PIN
  • 56
    24-88680 SPRING
    SPRING
  • 57
    44-8166231 PROPELLER SHAFT
    PROPELLER SHAFT
  • 58
    43-854497T GEAR, Reverse - 12/29
    GEAR, Reverse - 12/29
  • 59
    99906T1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 60
    31-21739 BEARING, Roller
    BEARING, Roller
  • 61
    26-41132 SEAL, Oil (INNER)
    SEAL, Oil (INNER)
  • 62
    26-41131 SEAL, Oil (OUTER)
    SEAL, Oil (OUTER)
  • 63
    25-85549 O-RING
    O-RING
  • 64
    87293 PLATE
    PLATE
  • 65
    10-90883 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 66
    10-4000378 SCREW, (M10 x 35) Stainless Steel
    SCREW, (M10 x 35) Stainless Steel
  • 67
    12-43328 WASHER
    WASHER
  • 68
    851281 THRUST HUB ASSEMBLY
    THRUST HUB ASSEMBLY
  • 69
    48-19636A10 PROPELLER
    PROPELLER
  • 70
    11-88228 PROP NUT
    PROP NUT
  • -
    26-85090A2 SEAL KIT
    SEAL KIT
