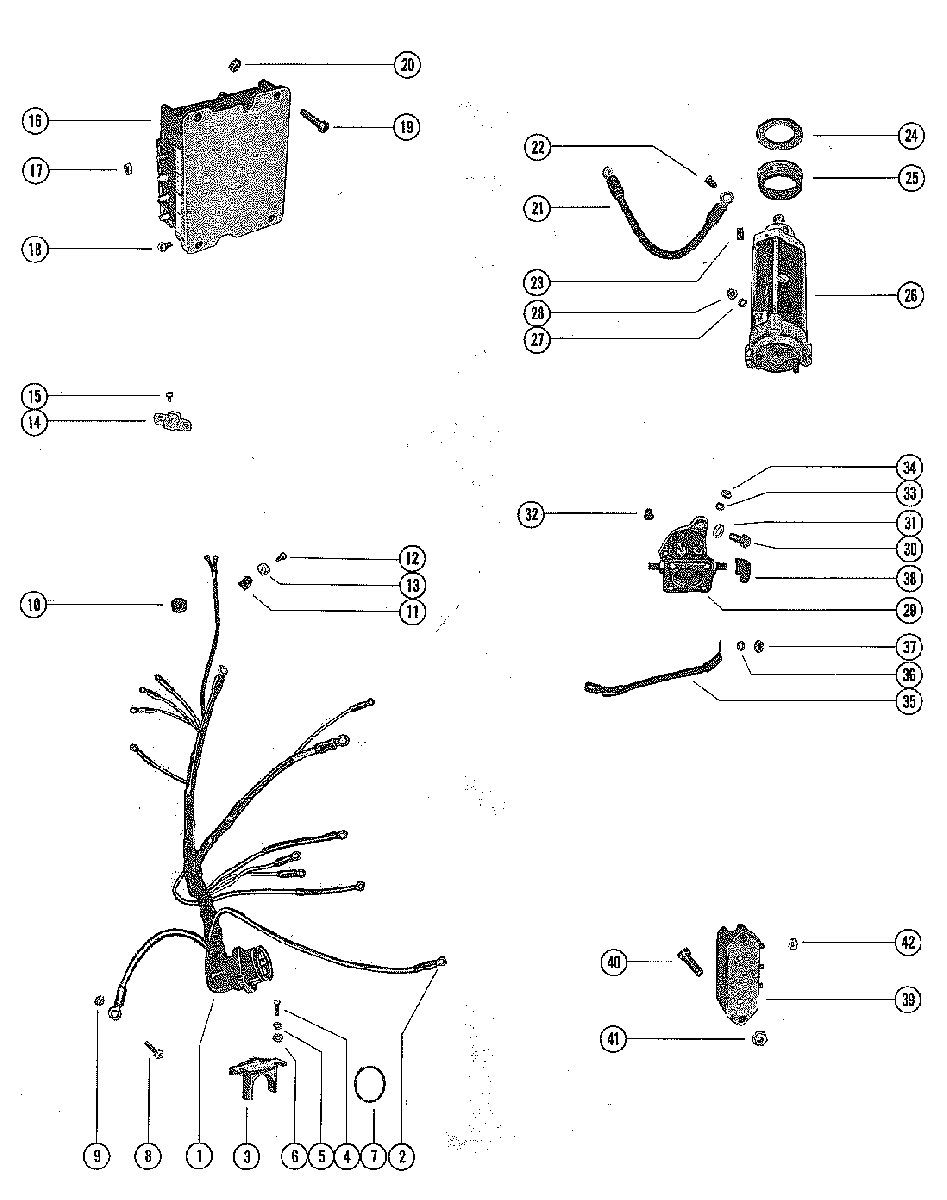

STARTER MOTOR, STARTER SOLENOID, RECTIFIER & WIRING HARNESS для Mercury - 1150 2836019 THRU 3525440

№

Артикул

Название
1

84-69236A1 WIRING HARNESS, INTERNAL

WIRING HARNESS, INTERNAL

21 800 ₽
2

30050 TERMINAL, HARNESS AND MERCURY SWITCH LEADS

TERMINAL, HARNESS AND MERCURY SWITCH LEADS

0 ₽
3

54-76368 CLAMP, WIRING HARNESS TO BOTTOM COWL

CLAMP, WIRING HARNESS TO BOTTOM COWL

0 ₽
4

10-45862 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")

SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")

90 ₽
5

13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW

LOCKWASHER, WIRING HARNESS CLAMP SCREW

60 ₽
6

12-847883 WASHER, WIRING HARNESS CLMAP SCREW

WASHER, WIRING HARNESS CLMAP SCREW

330 ₽
7

24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS

SPRING, GARTER - INTERNAL WIRING HARNESS

0 ₽
8

10-98256 SCREW, GROUND WIRE TO BOTTOM COWL

SCREW, GROUND WIRE TO BOTTOM COWL

90 ₽
9

13-24669 LOCKWASHER, GROUND WIRE SCREW

LOCKWASHER, GROUND WIRE SCREW

0 ₽
10

25-26547 GROMMET, RECTIFIER TO SWITCH BOX WIRE (SERIAL #3114543 AND BELOW)
SERIAL 00000000-03114543

GROMMET, RECTIFIER TO SWITCH BOX WIRE (SERIAL #3114543 AND BELOW)
SERIAL 00000000-03114543

200 ₽
11

54-648552 CLIP, WIRING HARNESS TO FRONT BRACKET (1/8")

CLIP, WIRING HARNESS TO FRONT BRACKET (1/8")

330 ₽
12

10-62568 SCREW, WIRING HARNESS TO FRONT BRACKET (3/8")

SCREW, WIRING HARNESS TO FRONT BRACKET (3/8")

70 ₽
13

8M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW

"D" WASHER, WIRING HARNESS CLIP SCREW

100 ₽
14

45559 TERMINAL BLOCK, STATOR LEADS

TERMINAL BLOCK, STATOR LEADS

360 ₽
15

10-62568 SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")

SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")

70 ₽
16

332-2986A21 SWITCH BOX ASSEMBLY

SWITCH BOX ASSEMBLY

95 900 ₽
17

11-45076 NUT, SWITCH BOX TERMINAL

NUT, SWITCH BOX TERMINAL

120 ₽
18

10-45218 SCREW, SWITCH BOX (3/8")

SCREW, SWITCH BOX (3/8")

0 ₽
19

10-64279 SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")

SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")

0 ₽
20

11-20184 NUT, SWITCH BOX SCREW

NUT, SWITCH BOX SCREW

120 ₽
21

84-93389A12 CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET

CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET

750 ₽
22

10-69035 SCREW, WIRE CABLE TO STARTER MOTOR

SCREW, WIRE CABLE TO STARTER MOTOR

140 ₽
23

8M0043376 STOP, RUBBER - STARTER MOTOR

STOP, RUBBER - STARTER MOTOR

340 ₽
24

23-56774 SPACER, COLLAR TO TOP MOUNTING CAP

SPACER, COLLAR TO TOP MOUNTING CAP

0 ₽
25

23-8M0034918 COLLAR, RUBBER - STARTER MOTOR MOUNT

COLLAR, RUBBER - STARTER MOTOR MOUNT

680 ₽
26

50-898265010 STARTER MOTOR ASSEMBLY

STARTER MOTOR ASSEMBLY

51 040 ₽
27

13-26992 LOCKWASHER, STARTER MOTOR TERMINAL

LOCKWASHER, STARTER MOTOR TERMINAL

70 ₽
28

11-20890 NUT, STARTER MOTOR TERMINAL

NUT, STARTER MOTOR TERMINAL

120 ₽
29

25661T1 SOLENOID, STARTER

SOLENOID, STARTER

7 110 ₽
30

10-69028 SCREW, SOLENOID TO COIL BRACKET (3/4")

SCREW, SOLENOID TO COIL BRACKET (3/4")

180 ₽
31

13-26992 LOCKWASHER, STARTER SOLENOID FASTENING SCREW

LOCKWASHER, STARTER SOLENOID FASTENING SCREW

70 ₽
32

269011 BUMPER, RUBBER - STARTER SOLENOID

BUMPER, RUBBER - STARTER SOLENOID

290 ₽
33

13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)

LOCKWASHER, SOLENOID TERMINAL (#10)

60 ₽
34

11-68219 NUT, SOLENOID TERMINAL (#10)

NUT, SOLENOID TERMINAL (#10)

50 ₽
35

48396 CABLE, WIRE - STARTER MOTOR TO SOLENOID

CABLE, WIRE - STARTER MOTOR TO SOLENOID

0 ₽
36

13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")

LOCKWASHER, SOLENOID TERMINAL (5/16")

140 ₽
37

11-22053 NUT, SOLENOID TERMINAL (5/16")

NUT, SOLENOID TERMINAL (5/16")

180 ₽
38

46265 BOOT, SOLENOID TERMINAL

BOOT, SOLENOID TERMINAL

340 ₽
39

78614A1 RECTIFIER ASSEMBLY

RECTIFIER ASSEMBLY

15 600 ₽
40

10-64278 SCREW, RECTIFIER TO MOUNTING BRACKET (1")

SCREW, RECTIFIER TO MOUNTING BRACKET (1")

0 ₽
41

11-20184 NUT, RECTIFIER MOUNTING SCREW

NUT, RECTIFIER MOUNTING SCREW

120 ₽
42

11-45076 NUT, FASTENING - RECTIFIER STATOR LEADS

NUT, FASTENING - RECTIFIER STATOR LEADS

120 ₽
