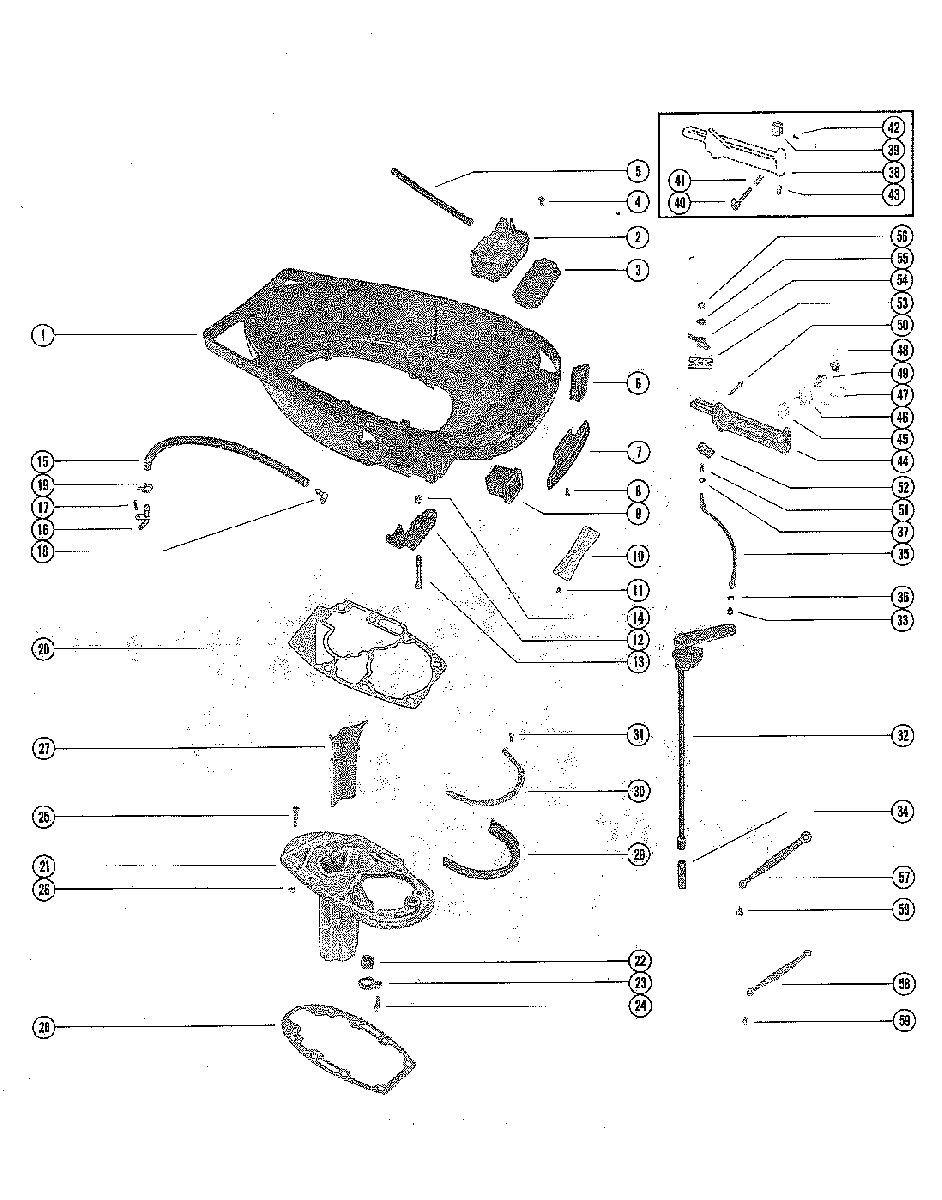

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 1150 2836019 THRU 3525440

  • №
    Артикул
    Название
  • 1
    2115-3807 COWL, BOTTOM
    SERIAL 00000000-03274150
    COWL, BOTTOM
    SERIAL 00000000-03274150
  • 1
    2115-3919 COWL, BOTTOM
    SERIAL 02928721-09999999
    COWL, BOTTOM
    SERIAL 02928721-09999999
  • 2
    52862A2 DRIP TRAY ASSEMBLY, BOTTOM COWL
    DRIP TRAY ASSEMBLY, BOTTOM COWL
  • 3
    37940 PAD, SOUND - DRIP TRAY
    PAD, SOUND - DRIP TRAY
  • 4
    10-35519 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
    SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
  • 5
    32-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")
    HOSE, DRIP TRAY TO BOTTOM COWL (8")
  • 6
    37638 BOOT, CONTROL CABLES - BOTTOM COWL
    SERIAL 00000000-00298720
    BOOT, CONTROL CABLES - BOTTOM COWL
    SERIAL 00000000-00298720
  • 6
    39616 BOOT, CONTROL CABLES - BOTTOM COWL
    SERIAL 02928721-09999999
    BOOT, CONTROL CABLES - BOTTOM COWL
    SERIAL 02928721-09999999
  • 7
    76369 SPACER, BOTTOM COWL (COWL FRONT COVER)
    SPACER, BOTTOM COWL (COWL FRONT COVER)
  • 8
    10-48591 SCREW, SPACER TO BOTTOM COWL (1/2")
    SCREW, SPACER TO BOTTOM COWL (1/2")
  • 9
    37637 BOOT, FUEL CONNECTOR - BOTTOM COWL
    BOOT, FUEL CONNECTOR - BOTTOM COWL
  • 10
    23760 BAFFLE, BOTTOM COWL
    SERIAL 00000000-03114543
    BAFFLE, BOTTOM COWL
    SERIAL 00000000-03114543
  • 11
    10-52867 SCREW, BAFFLE TO BOTTOM COWL
    SERIAL 00000000-03114543
    SCREW, BAFFLE TO BOTTOM COWL
    SERIAL 00000000-03114543
  • 12
    37445 SUPPORT, WIRING HARNESS - BOTTOM COWL
    SUPPORT, WIRING HARNESS - BOTTOM COWL
  • 13
    10-69029 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")
    SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")
  • 13
    10-88488 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (3 1/4")
    SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (3 1/4")
  • 14
    11-20184 NUT, WIRING HARNESS SUPPORT SCREW
    NUT, WIRING HARNESS SUPPORT SCREW
  • 15
    32-8M0108355 HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
    HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
  • 16
    52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
  • 17
    10-35519 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
  • 18
    22-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVER
    ELBOW, TELL TALE HOSE TO EXHAUST COVER
  • 19
    54-48123 CLAP, TELL TALE HOSE TO CONNECTOR AND ELBOW
    CLAP, TELL TALE HOSE TO CONNECTOR AND ELBOW
  • 20
    27-56028 GAKSET, POWERHEAD TO EXHAUST EXTENSION PLATE
    GAKSET, POWERHEAD TO EXHAUST EXTENSION PLATE
  • 21
    56306A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 22
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 23
    38448 RETAINER, WATER TUBE SEAL
    RETAINER, WATER TUBE SEAL
  • 24
    10-69069 SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
    SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
  • 25
    10-24226 SCREW, EXHUAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    SCREW, EXHUAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 26
    11-20184 NUT, EXHAUST EXTENSION PLATE SCREW
    NUT, EXHAUST EXTENSION PLATE SCREW
  • 27
    58478A1 DIVIDER ASSEMBLY, EXHAUST (SEE NOTE BELOW)
    DIVIDER ASSEMBLY, EXHAUST (SEE NOTE BELOW)
  • 28
    27-48801 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 29
    37918 SEAL, EXHAUST EXTENSION PLATE
    SEAL, EXHAUST EXTENSION PLATE
  • 30
    99358 STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
    STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
  • 31
    10-37571 SCREW, SEAL AND RETAINING STRIP TO EXTENSION PLATE (1/2")
    SCREW, SEAL AND RETAINING STRIP TO EXTENSION PLATE (1/2")
  • 32
    60304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
  • 32
    60304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
  • 33
    23-26600 BUSHING, SHIFT SHAFT
    BUSHING, SHIFT SHAFT
  • 34
    93960A1 COUPLING, SHIFT SHAFT
    COUPLING, SHIFT SHAFT
  • 35
    73402 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 36
    12-24664 WASHER, LINK ROD
    WASHER, LINK ROD
  • 37
    13-29720 WASHER, WAVE - LINK ROD
    WASHER, WAVE - LINK ROD
  • 38
    52732A6 BRACKET ASSEMBLY, ANCHOR CONTROL CABLES
    SERIAL 00000000-02928720
    BRACKET ASSEMBLY, ANCHOR CONTROL CABLES
    SERIAL 00000000-02928720
  • 39
    38802 CAP, BRASS BARREL TO THROTTLE CABLE
    SERIAL 00000000-02928720
    CAP, BRASS BARREL TO THROTTLE CABLE
    SERIAL 00000000-02928720
  • 39
    49935 CAP, BRASS BARREL TO THROTTLE CABLE
    SERIAL 00000000-02928720
    CAP, BRASS BARREL TO THROTTLE CABLE
    SERIAL 00000000-02928720
  • 40
    49932A1 LEVER ASSEMBLY, CONTROL CABLE LOCKING - ANCHOR BRACKET
    SERIAL 00000000-02928720
    LEVER ASSEMBLY, CONTROL CABLE LOCKING - ANCHOR BRACKET
    SERIAL 00000000-02928720
  • 41
    24-37911 SPRING, CONTROL CABLE LOCKING LEVER
    SERIAL 00000000-02928720
    SPRING, CONTROL CABLE LOCKING LEVER
    SERIAL 00000000-02928720
  • 42
    17-239281 PIN, ROLL - CONTROL CABLE LOCKING LEVER
    SERIAL 00000000-02928720
    PIN, ROLL - CONTROL CABLE LOCKING LEVER
    SERIAL 00000000-02928720
  • 43
    24-38472 SPRING, CONTROL CABLE TENSION - ANCHOR BRACKET
    SERIAL 00000000-02928720
    SPRING, CONTROL CABLE TENSION - ANCHOR BRACKET
    SERIAL 00000000-02928720
  • 44
    52732A6 BRACKET, ANCHOR - CONTROL CABLES SERIAL #2928721 AND UP
    SERIAL 02928721-09999999
    BRACKET, ANCHOR - CONTROL CABLES SERIAL #2928721 AND UP
    SERIAL 02928721-09999999
  • 45
    39519 CAP, BARREL RETAINER - ANCHOR BRACKET
    SERIAL 02928721-09999999
    CAP, BARREL RETAINER - ANCHOR BRACKET
    SERIAL 02928721-09999999
  • 46
    87609A1 LEVER NYLON - SHIFT CABLE LOCKING
    SERIAL 02928721-09999999
    LEVER NYLON - SHIFT CABLE LOCKING
    SERIAL 02928721-09999999
  • 47
    17-47175 PIN, LOCKING LEVER AND COVER FASTENING
    SERIAL 02928721-09999999
    PIN, LOCKING LEVER AND COVER FASTENING
    SERIAL 02928721-09999999
  • 48
    39667 COVER, NYLON - SHIFT CABLE
    SERIAL 02928721-09999999
    COVER, NYLON - SHIFT CABLE
    SERIAL 02928721-09999999
  • 49
    39536 LINK, LOCKING LEVER TO COVER
    SERIAL 02928721-09999999
    LINK, LOCKING LEVER TO COVER
    SERIAL 02928721-09999999
  • 50
    10-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
  • 51
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 52
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 53
    52100 WEAR PLATE, LINK ROD
    WEAR PLATE, LINK ROD
  • 54
    8M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
    LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
  • 55
    12-69056 WASHER, PLAIN - LINK ROD
    WASHER, PLAIN - LINK ROD
  • 56
    11-826709109 NUT, LINK ROD
    NUT, LINK ROD
  • 57
    46933A1 GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")
    GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")
  • 58
    46933A2 GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")
    GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")
  • 59
    10-62568 SCREW, GROUND STRAP FASTENING
    SCREW, GROUND STRAP FASTENING
