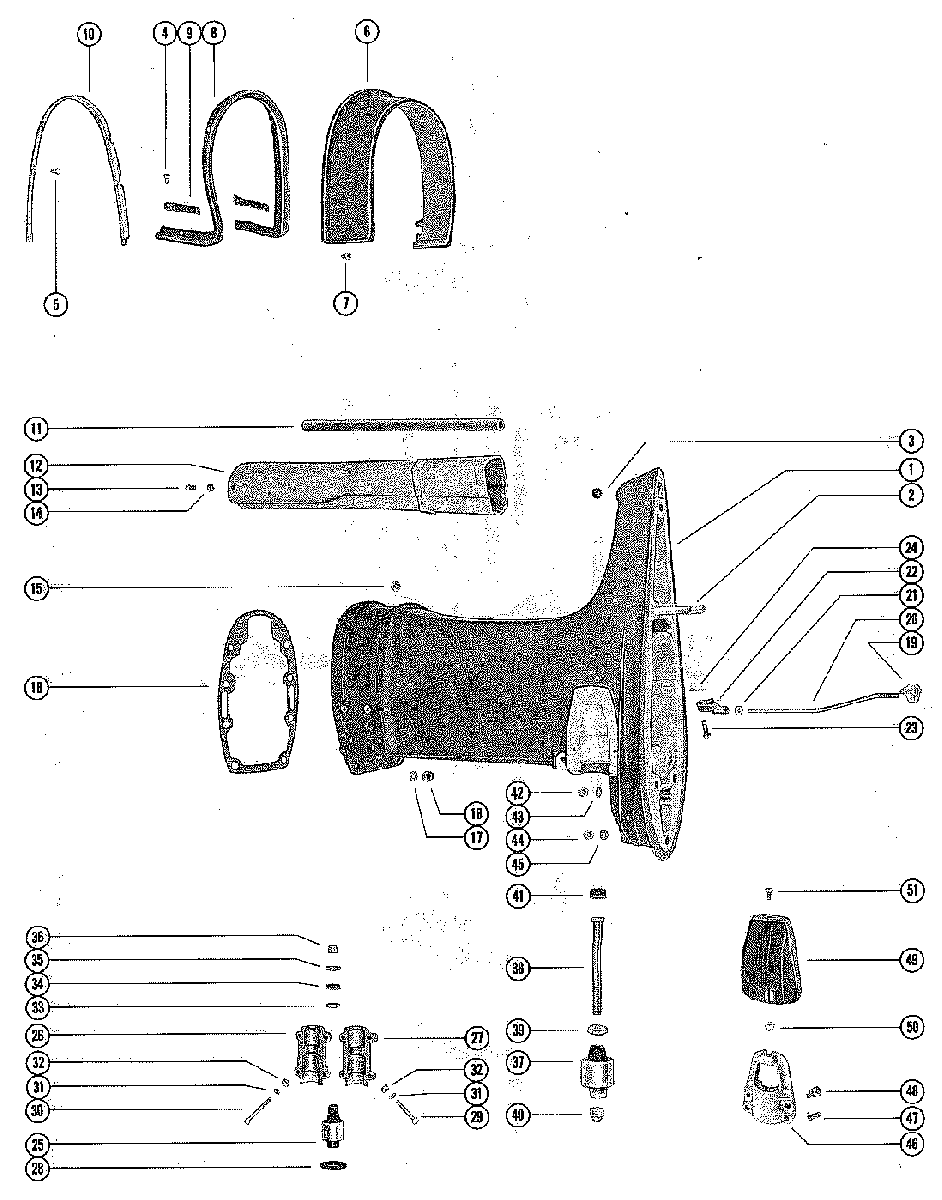

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 1150 2836019 THRU 3525440
-
№АртикулНазвание
-
11552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
216-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
319-824928001 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
410-48409 SCREW RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")SCREW RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
-
510-48408 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")
-
637417 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
710-37571 SCREW, TRIM COVER TO BOTTOM COWL
SERIAL 00000000-02928720SCREW, TRIM COVER TO BOTTOM COWL
SERIAL 00000000-02928720 -
710-57807 SCREW, TRIM COVER TO BOTTOM COWL
SERIAL 02928721-09999999SCREW, TRIM COVER TO BOTTOM COWL
SERIAL 02928721-09999999 -
-25-8M0079730 GROMMET, PLASTIC - TRIM COVER SCREW
SERIAL 02928721-09999999GROMMET, PLASTIC - TRIM COVER SCREW
SERIAL 02928721-09999999 -
837919 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
937665 STRIP, RETAINING - TRIM COVER SEAL (SIDE)STRIP, RETAINING - TRIM COVER SEAL (SIDE)
-
1038052 STRIP, RETAINING - TRIM COVER SEAL (REAR)STRIP, RETAINING - TRIM COVER SEAL (REAR)
-
1132-37446 TUBE, WATER INLET (SHORT SHAFT)TUBE, WATER INLET (SHORT SHAFT)
-
1132-37438 TUBE, WATER INLET (LONG SHAFT)TUBE, WATER INLET (LONG SHAFT)
-
1238469 TUBE, EXHAUST (SHORT SHAFT)TUBE, EXHAUST (SHORT SHAFT)
-
1238470 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
1310-28668 SCREW, TUBE TO EXTENSION PLATE (7/8")
SERIAL 00000000-02933900SCREW, TUBE TO EXTENSION PLATE (7/8")
SERIAL 00000000-02933900 -
1310-36137 SCREW, TUBE TO EXTENSION PLATE (1")
SERIAL 03023086-09999999SCREW, TUBE TO EXTENSION PLATE (1")
SERIAL 03023086-09999999 -
1411-35888 NUT, EXHAUST TUBE SCREW
SERIAL 00000000-02933900NUT, EXHAUST TUBE SCREW
SERIAL 00000000-02933900 -
1411-63149 NUT, EXHAUST TUBE SCREW
SERIAL 03023086-09999999NUT, EXHAUST TUBE SCREW
SERIAL 03023086-09999999 -
1511-82670911 NUT, POWERHEAD STUDS (5/16-24)NUT, POWERHEAD STUDS (5/16-24)
-
1611-8M0042636 NUT, POWERHEAD STUBS (3/8-24)NUT, POWERHEAD STUBS (3/8-24)
-
1611-23161 NUT, POWERHEAD STUDS (3/8-24)NUT, POWERHEAD STUDS (3/8-24)
-
1712-20086 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
1827-48801 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
1952887 GUIDE, PUSH ROD - REVERSE LOCKING
NOT TO BE USED WITH FULL POWER TRIMGUIDE, PUSH ROD - REVERSE LOCKING
NOT TO BE USED WITH FULL POWER TRIM -
2047591 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
NOT TO BE USED WITH FULL POWER TRIMROD, PUSH - REVERSE LOCK (SHORT SHAFT)
NOT TO BE USED WITH FULL POWER TRIM -
2047558 ROD, PUSH - REVERSE LOCK (LONG SHAFT)
NOT TO BE USED WITH FULL POWER TRIMROD, PUSH - REVERSE LOCK (LONG SHAFT)
NOT TO BE USED WITH FULL POWER TRIM -
2111-69254 NUT, JAM - RUSH ROD
NOT TO BE USED WITH FULL POWER TRIMNUT, JAM - RUSH ROD
NOT TO BE USED WITH FULL POWER TRIM -
2247559 YOKE, PUSH ROD
NOT TO BE USED WITH FULL POWER TRIMYOKE, PUSH ROD
NOT TO BE USED WITH FULL POWER TRIM -
2324-78203A2 PIN, PUSH ROD TO REVERSE LOCK
NOT TO BE USED WITH FULL POWER TRIMPIN, PUSH ROD TO REVERSE LOCK
NOT TO BE USED WITH FULL POWER TRIM -
2418-25191 COTTER PIN, PUSH ROD PIN
NOT TO BE USED WITH FULL POWER TRIMCOTTER PIN, PUSH ROD PIN
NOT TO BE USED WITH FULL POWER TRIM -
2575296 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2575297 MOUNT, RUBBER - UPPER (HEAVY DUTY)MOUNT, RUBBER - UPPER (HEAVY DUTY)
-
2649239 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2753141 COVER, UPPERMOUNT - INSIDE HALFCOVER, UPPERMOUNT - INSIDE HALF
-
2824929 PACKING, "U" CUPPACKING, "U" CUP
-
2910-20012 SCREW, UPPER MOUNT COVER (1 5/8")SCREW, UPPER MOUNT COVER (1 5/8")
-
3010-28775 SCREW, UPPER MOUNT COVER (2 1/8")SCREW, UPPER MOUNT COVER (2 1/8")
-
3112-29245 WASHER, UPPER MOUNT COVER SCREWWASHER, UPPER MOUNT COVER SCREW
-
3211-35888 NUT, UPPER MOUNT COVER SCREWNUT, UPPER MOUNT COVER SCREW
-
3312-31262 WASHER, UPPERMOUNT BOLTWASHER, UPPERMOUNT BOLT
-
3412-47840 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
3512-31263 WAASHER, UPPER MOUNT BOLTWAASHER, UPPER MOUNT BOLT
-
3611-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3749455 MOUNT, RUBBER - LOWER (SHORT SHAFT)MOUNT, RUBBER - LOWER (SHORT SHAFT)
-
3775299 MOUNT, RUBBER - LOWER (LONG SHAFT)MOUNT, RUBBER - LOWER (LONG SHAFT)
-
3775300 MOUNT, RUBBER - LOWER (HEAVY DUTY)MOUNT, RUBBER - LOWER (HEAVY DUTY)
-
3810-75284 SCREW, LOWER MOUJNT (5 1/2")SCREW, LOWER MOUJNT (5 1/2")
-
3912-49339 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
4011-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
4125067 BUMPER, RUBBER - LOWER MOUNTING SCREWBUMPER, RUBBER - LOWER MOUNTING SCREW
-
4211-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
4312-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4411-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
4512-45176 WASHER, GEAR HOUSING TO DRIVWE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVWE SHAFT HOUSING STUDS
-
4635608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
4724-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
4810-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSINGSCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
-
4935474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
5011-35521 NUT, LWOER MOUNT CLAMP COVERNUT, LWOER MOUNT CLAMP COVER
-
5110-29722 SCREW, COVER TO LOWER CLAMP MOUNTSCREW, COVER TO LOWER CLAMP MOUNT
