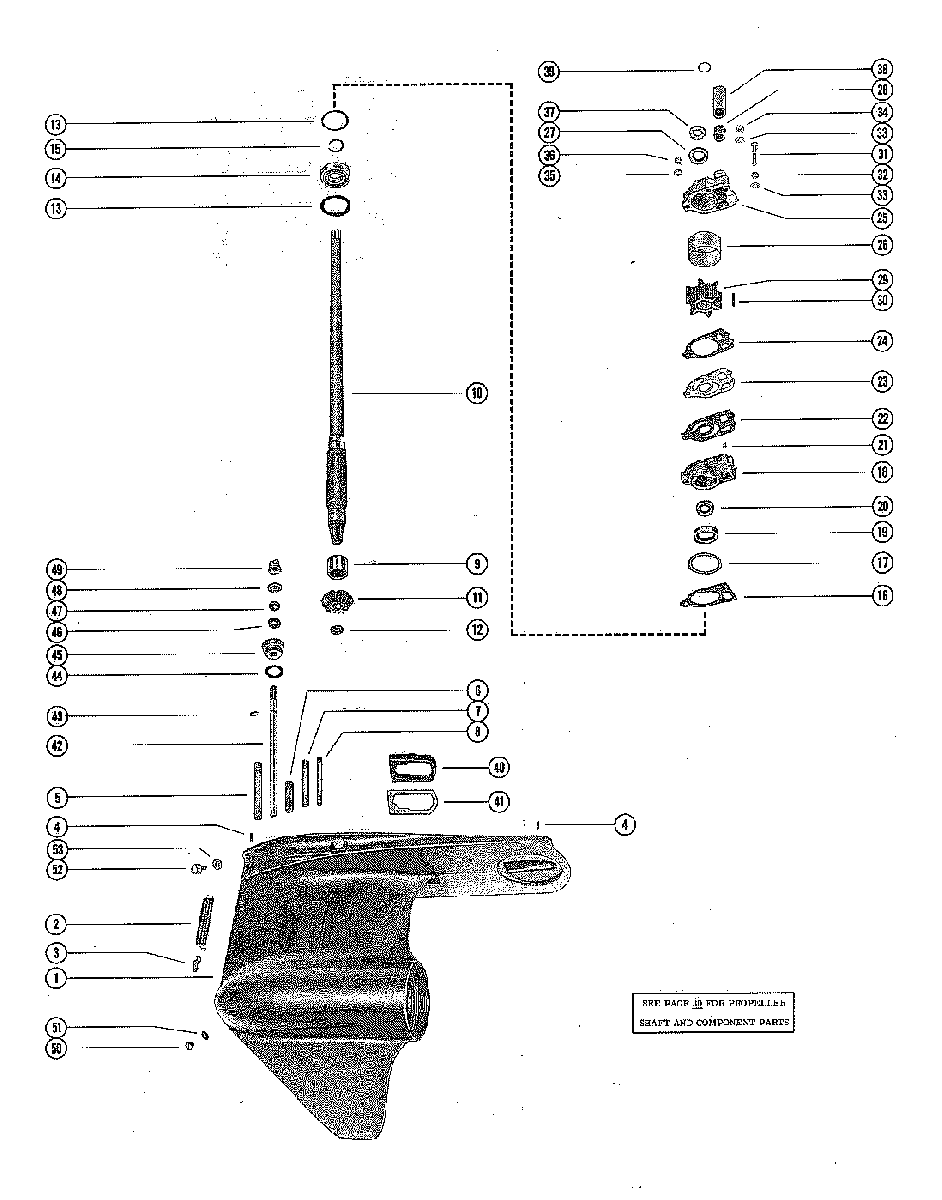

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 1150 2836019 THRU 3525440
-
№АртикулНазвание
-
-1623-4934A21 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELGEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BEL
-
-1623-4934A20 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTEGEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) SEE NOTE
-
11623-5244A6 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
255662 SCREEN, WATER INLET EARLY MODELS ONLY
EARLY MODELS ONLYSCREEN, WATER INLET EARLY MODELS ONLY
EARLY MODELS ONLY -
324-57430 SPRING, WATER INLET SCREEN RETAINING
EARLY MODELS ONLYSPRING, WATER INLET SCREEN RETAINING
EARLY MODELS ONLY -
417-21438 DOWEL PIN, GEAR HOUSING LOCATINGDOWEL PIN, GEAR HOUSING LOCATING
-
516-57921 STUD, GEAR HOUSING TO DRIVE SHARFT HOUSING (4")STUD, GEAR HOUSING TO DRIVE SHARFT HOUSING (4")
-
616-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")
-
716-8M0034463 STUD, WATER PUMP TO GEAR HOUSING (3 3/8")STUD, WATER PUMP TO GEAR HOUSING (3 3/8")
-
816-57919 STUD, WATER PUMP TO GEAR HOUSING (5/16-18 X 3 5/16")STUD, WATER PUMP TO GEAR HOUSING (5/16-18 X 3 5/16")
-
816-306671 STUD, WATER PUMP TO GEAR HOUSING (1/4-20 X 3 1/8")STUD, WATER PUMP TO GEAR HOUSING (1/4-20 X 3 1/8")
-
931-32898T BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
1045-47433 DRIVE SHAFT (SHOFT SHAFT)
SERIAL 00000000-02933900DRIVE SHAFT (SHOFT SHAFT)
SERIAL 00000000-02933900 -
1045-47434 DRIVE SHAFT (LONG SHAFT)
SERIAL 00000000-02933900DRIVE SHAFT (LONG SHAFT)
SERIAL 00000000-02933900 -
1045-64388 DRIVE SHAFT (SHORT SHAFT)
SERIAL 03023086-09999999DRIVE SHAFT (SHORT SHAFT)
SERIAL 03023086-09999999 -
1045-64389 DRIVE SHAFT (LONG SHAFT)
SERIAL 03023086-09999999DRIVE SHAFT (LONG SHAFT)
SERIAL 03023086-09999999 -
1143-55688 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
1211-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1315-30278A1 SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (.002-3-5-10)
-
1315-30278A1 SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)SHIM, WATER PUMP BASE TO GEAR HOUSING (.002-3-5-10)
-
1430-63326T BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
1553-30726 RING, RETAINING - BALL BEARINGRING, RETAINING - BALL BEARING
-
1627-32438 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
1725-30224 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
1846-48747A1 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1926-94038 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
2026-16977 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
2117-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
2227-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
23324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
2427-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
2546-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2648752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
2726-16977 OIL SEAL, WATER PUMP BODYOIL SEAL, WATER PUMP BODY
-
2826-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
2947-89984T4 IMPELLER - WATER PUMPIMPELLER - WATER PUMP
-
3028-8M0032834 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
3110-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
-
3213-26992 LOCKWASHER, WATER PUMP BODY SCREWLOCKWASHER, WATER PUMP BODY SCREW
-
3312-29245 WASHER, WATER PUMP BODY FASTENING SCREW AND STUDWASHER, WATER PUMP BODY FASTENING SCREW AND STUD
-
3411-826709109 NUT, WATER PUMP FASTENING SCREWNUT, WATER PUMP FASTENING SCREW
-
3512-36001 WASHER, WATER PUMP BODY FASTENING STUDWASHER, WATER PUMP BODY FASTENING STUD
-
3611-826709111 NUT, WATER PUMP BODY FASTENING STUDNUT, WATER PUMP BODY FASTENING STUD
-
3725-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
3823-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
3925-30613 "O" RING, UPPER - DRIVE SHAFT (SERIAL #29335769 AND BELOW)
SERIAL 00000000-29335769"O" RING, UPPER - DRIVE SHAFT (SERIAL #29335769 AND BELOW)
SERIAL 00000000-29335769 -
4037641001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
4138051 PLATE, SUPPORT - EXHAUST TUBE SEALPLATE, SUPPORT - EXHAUST TUBE SEAL
-
4276062A1 SHAFT ASSEMBLY, SHIFT - LOWERSHAFT ASSEMBLY, SHIFT - LOWER
-
4353-29641 "E" RING, RETAINING - SHIFT SHAFT"E" RING, RETAINING - SHIFT SHAFT
-
4425-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
4523-77631A2 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4626-24590 OIL SEAL, SHIFT SHAFT HOUSING (LOWER)OIL SEAL, SHIFT SHAFT HOUSING (LOWER)
-
4626-892361 OIL SEAL, SHIFT SHAFT BUSHING (UPPER)OIL SEAL, SHIFT SHAFT BUSHING (UPPER)
-
4712-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4878036 SPACER, LOWER - REVERSE LOCKING NOT USED WITH FULL POWER
NOT USED WITH FULL POWER TRIMSPACER, LOWER - REVERSE LOCKING NOT USED WITH FULL POWER
NOT USED WITH FULL POWER TRIM -
4943308T1 CAM, REVERSE LOCKING
NOT USED WITH FULL POWER TRIMCAM, REVERSE LOCKING
NOT USED WITH FULL POWER TRIM -
5010-79953Q04 SCREW, GREASE FILLER AND VENT HOLESCREW, GREASE FILLER AND VENT HOLE
-
5112-191833 WASHER, GREASE FILLER AND VENT HOLE SCREWWASHER, GREASE FILLER AND VENT HOLE SCREW
-
5219-48750 PLUG, GEAR HOUSING FLUSHING HOLEPLUG, GEAR HOUSING FLUSHING HOLE
-
5312-49221 WASHER, GEAR HOUSING FLUSHING HOLE PLUGWASHER, GEAR HOUSING FLUSHING HOLE PLUG
