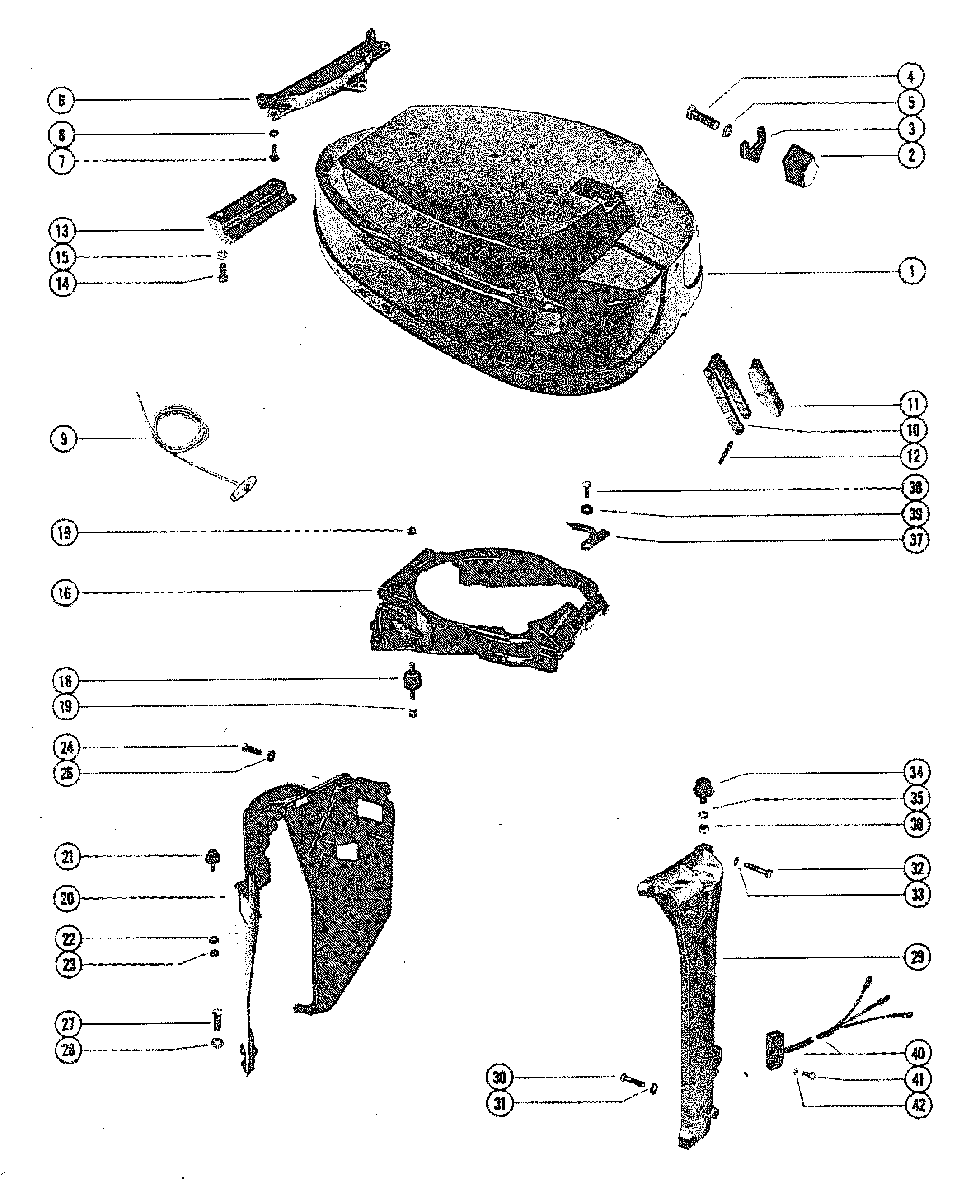

TOP COWL AND SUPPORT BRACKETS для Mercury - 115 (6 CYL.) 7147988 THRU 7208847
-
№АртикулНазвание
-
12114-7934T TOP COWL (WITHOUT DECALS)
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOWTOP COWL (WITHOUT DECALS)
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOW -
252733A9 RETAINER ASSEMBLY, TOP COWL
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOWRETAINER ASSEMBLY, TOP COWL
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOW -
335496 PAD, BUMPER-TOP COWL RETAINER
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOWPAD, BUMPER-TOP COWL RETAINER
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOW -
410-74824 SCREW, RETAINER TO TOP COWL (1-1/14")
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOWSCREW, RETAINER TO TOP COWL (1-1/14")
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOW -
12114-7934T TOP COWL (WITHOUT DECALS)
UNITED STATES 5829464 AND UP
AUSTRALIA 8071135 AND UP
CANADA 7171253 AND UPTOP COWL (WITHOUT DECALS)
UNITED STATES 5829464 AND UP
AUSTRALIA 8071135 AND UP
CANADA 7171253 AND UP -
293122A1 RETAINER ASSEMBLY, TOP COWL
UNITED STATES 5829464 AND UP
AUSTRALIA 8071135 AND UP
CANADA 7171253 AND UPRETAINER ASSEMBLY, TOP COWL
UNITED STATES 5829464 AND UP
AUSTRALIA 8071135 AND UP
CANADA 7171253 AND UP -
410-53167T SCREW, RETAINER TO TOP COWL (7/8")
UNITED STATES 5829464 AND UP
AUSTRALIA 8071135 AND UP
CANADA 7171253 AND UPSCREW, RETAINER TO TOP COWL (7/8")
UNITED STATES 5829464 AND UP
AUSTRALIA 8071135 AND UP
CANADA 7171253 AND UP -
513-39107 LOCKWASHER, RETAINER SCREWLOCKWASHER, RETAINER SCREW
-
676370 SHIELD, TOP COWL-REARSHIELD, TOP COWL-REAR
-
710-37370 SCREW, SHIELD TO TOP COWL (5/8")SCREW, SHIELD TO TOP COWL (5/8")
-
813-37371 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
947341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)ROPE, STARTER (FOR MANUAL STARTING ONLY)
-
1052739 HINGE, COWL LATCH-TOP COWLHINGE, COWL LATCH-TOP COWL
-
1194918F1 LEVER, COWL LATCH HINGELEVER, COWL LATCH HINGE
-
1217-58998 ROLL PIN, COWL LATCH LEVER TO HINGEROLL PIN, COWL LATCH LEVER TO HINGE
-
1355455 HOOK, TOP COWL LATCH-REARHOOK, TOP COWL LATCH-REAR
-
1410-22956 SCREW, REAR HOOK TO TOP COWL (7/8")SCREW, REAR HOOK TO TOP COWL (7/8")
-
1513-26992 LOCKWASHER, REAR HOOK SCREWLOCKWASHER, REAR HOOK SCREW
-
1679897A4 FRAME, TOP COWL SUPPORTFRAME, TOP COWL SUPPORT
-
1890435 MOUNT, RUBBER-TOP COWL FRAMEMOUNT, RUBBER-TOP COWL FRAME
-
1846096 MOUNT, RUBBER-TOP COWL FRAM (HEAVY DUTY)MOUNT, RUBBER-TOP COWL FRAM (HEAVY DUTY)
-
1911-35888 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
2086472 BRACKET, TOP COWL SUPPORT-REARBRACKET, TOP COWL SUPPORT-REAR
-
2131014 MOUNT, RUBBER-REAR SUPPORT BRACKETMOUNT, RUBBER-REAR SUPPORT BRACKET
-
2213-26992 LOCKWASHER, RUBBER MOUNTLOCKWASHER, RUBBER MOUNT
-
2311-29598 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
2410-37562 SCREW, REAR BRACKET TO FRAME (1")SCREW, REAR BRACKET TO FRAME (1")
-
2613-26993 LOCKWASHER, REAR BRACKET SCREWLOCKWASHER, REAR BRACKET SCREW
-
2710-37562 SCREW, REAR BRACKET TO BOTTOM COWL (1")SCREW, REAR BRACKET TO BOTTOM COWL (1")
-
2813-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREWLOCKWASHER, REAR SUPPORT BRACKET SCREW
-
2942706A1 BRACKET ASSEMBLY, TOP COWL-FRONTBRACKET ASSEMBLY, TOP COWL-FRONT
-
3010-60411 SCREW, FRONT BRACKET TO BOTTOM COWL (1-1/4")SCREW, FRONT BRACKET TO BOTTOM COWL (1-1/4")
-
3113-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREWLOCKWASHER, FRONT SUPPORT BRACKET SCREW
-
3210-60411 SCREW
FRONT BRACKET TO TOP COWL FRAME (1-1/2")SCREW
FRONT BRACKET TO TOP COWL FRAME (1-1/2") -
3313-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREWLOCKWASHER, FRONT SUPPORT BRACKET SCREW
-
3437640 MOUNT, RUBBER-FRONT SUPPORT BRACKETMOUNT, RUBBER-FRONT SUPPORT BRACKET
-
3513-26993 LOCKWASHER, RUBBER MOUNTLOCKWASHER, RUBBER MOUNT
-
3611-28770 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
3787991 POINTER, TIMINGPOINTER, TIMING
-
3810-28636 SCREW, TIMING POINTER (3/4")SCREW, TIMING POINTER (3/4")
-
3912-35462 WASHER, TIMING POINTER SCREWWASHER, TIMING POINTER SCREW
-
4087076A4 IDLE SPEED CONTROL ASSEMBLYIDLE SPEED CONTROL ASSEMBLY
-
4110-20189 SCREW, IDLE SPEED CONTROL ATTACHINGSCREW, IDLE SPEED CONTROL ATTACHING
-
4211-20110 NUT, IDLE SPEED CONTROL SCREWNUT, IDLE SPEED CONTROL SCREW
