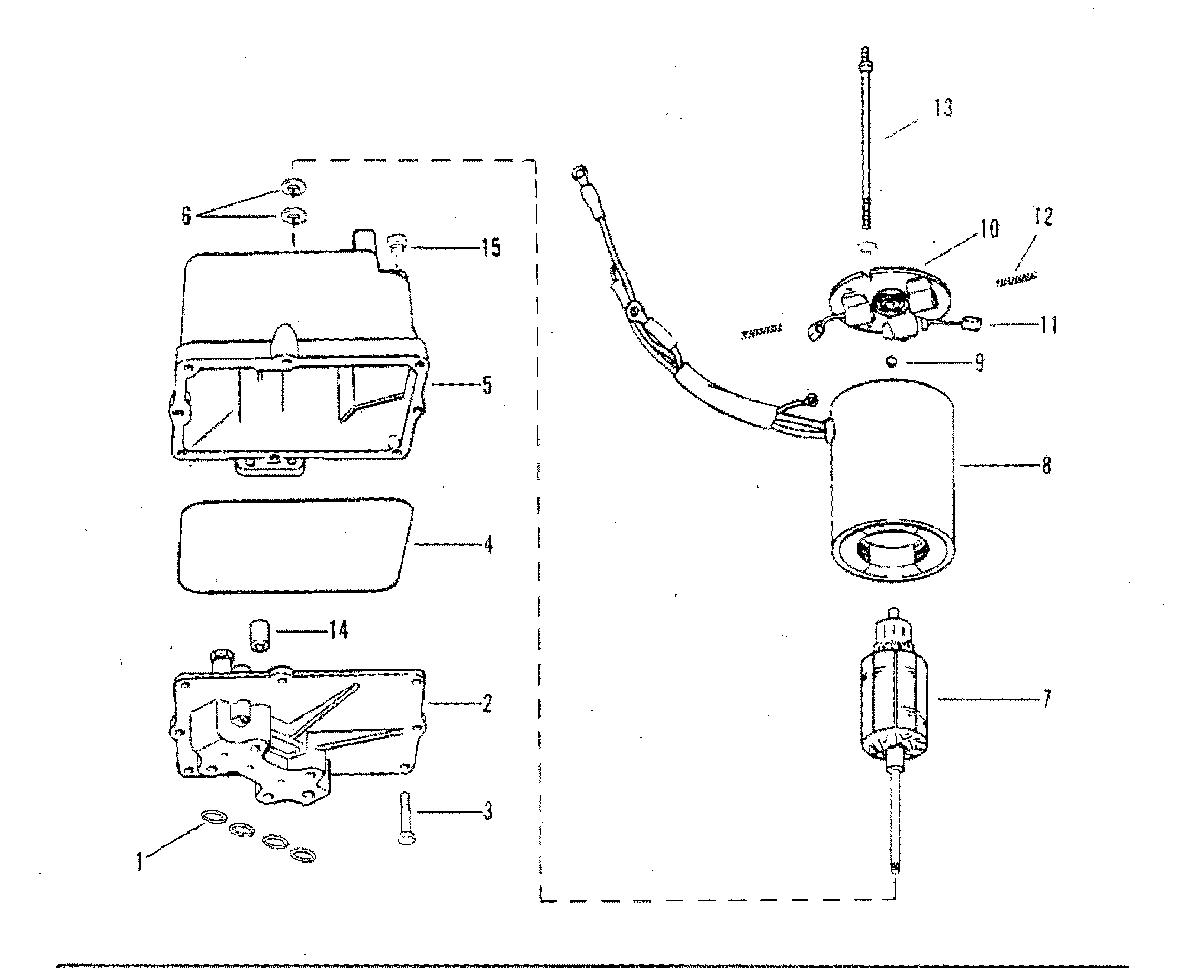

HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR) для Mercury - 115 (6 CYL.) 7147988 THRU 7208847
-
№АртикулНазвание
-
-92975A32 HYDRAULIC PUMP ASSEMBLYHYDRAULIC PUMP ASSEMBLY
-
125-48171 "O"RING, HYDRAULIC PUMP"O"RING, HYDRAULIC PUMP
-
292975A32 VALVE BODY AND GEAR ASSEMBLYVALVE BODY AND GEAR ASSEMBLY
-
310-69570 SCREW, VALVE BODY TO RESERVOIRSCREW, VALVE BODY TO RESERVOIR
-
4392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEARSEAL, RESERVOIR TO VALVE BODY AND GEAR
-
5392-7731 RESERVOIR ASSEMBLY (PLASTIC)RESERVOIR ASSEMBLY (PLASTIC)
-
6392-7732 WASHER, THRUST - ARMATUREWASHER, THRUST - ARMATURE
-
7392-7729 ARMATURE, FIELD AND FRAMEARMATURE, FIELD AND FRAME
-
8392-8261 FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
9392-7730 BALL, COMMUTATOR END PLATEBALL, COMMUTATOR END PLATE
-
10392-8262 PLATE ASSEMBLY, COMMUTATOR ENDPLATE ASSEMBLY, COMMUTATOR END
-
11392-8989 BRUSH SET, COMMUTATOR END PLATEBRUSH SET, COMMUTATOR END PLATE
-
12392-2529 SPRING SET, BRUSH TENSIONSPRING SET, BRUSH TENSION
-
13392-7733 BOLT SET
THRU - PLATE AND FRAME TO RESERVOIRBOLT SET
THRU - PLATE AND FRAME TO RESERVOIR -
14392-7727 COUPLER AND SHAFTCOUPLER AND SHAFT
-
15392-7728 FILL PLUG, RESERVOIRFILL PLUG, RESERVOIR
