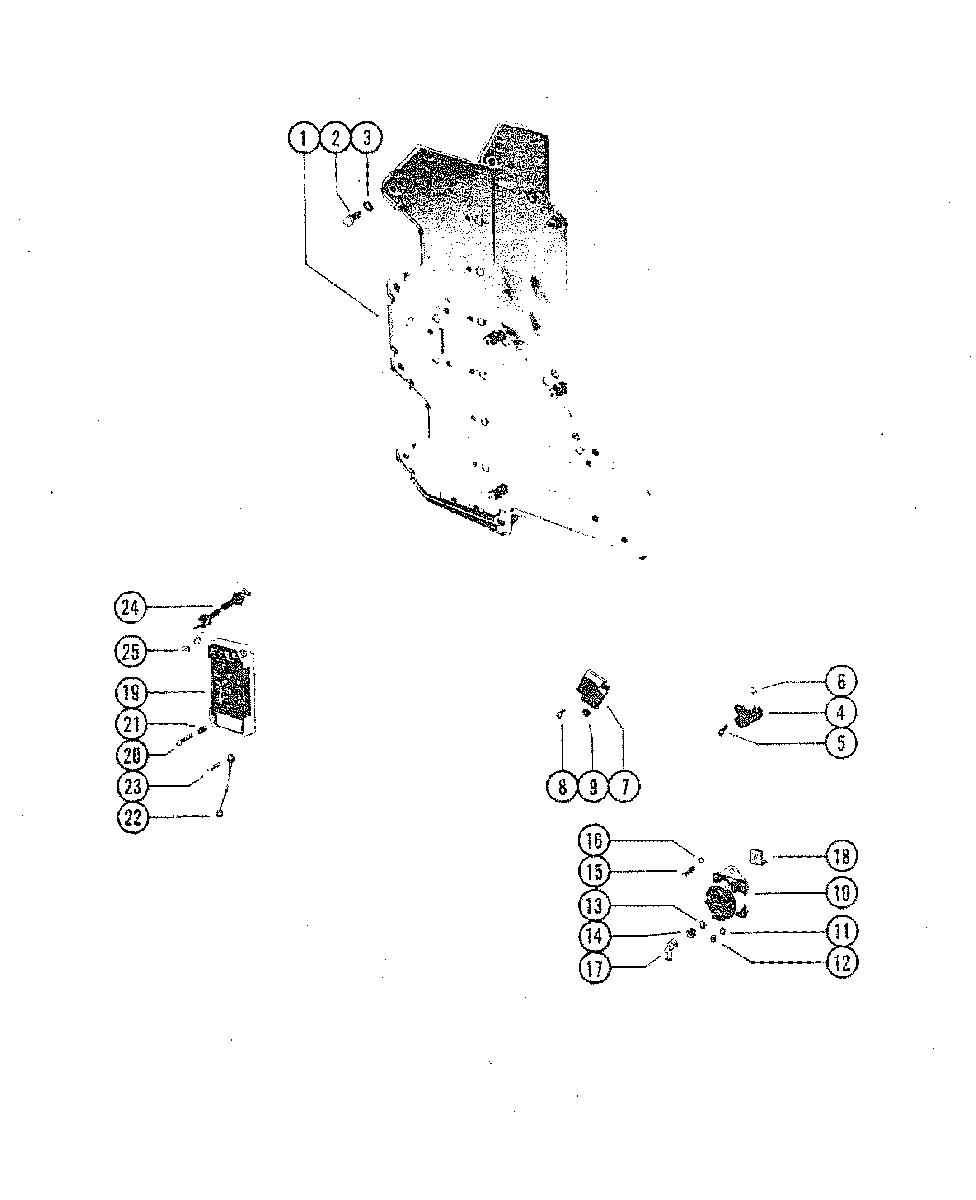

SWITCH BOX AND STARTER SOLENOID для Mercury - 115 (6 CYL.) 7147988 THRU 7208847

  • №
    Артикул
    Название
  • 1
    89748T PLATE, ELECTRICAL MOUNTING
    PLATE, ELECTRICAL MOUNTING
  • 2
    10-86885 SCREW, PLATE TO CYLINDER BLOCK (1-1/2")
    SCREW, PLATE TO CYLINDER BLOCK (1-1/2")
  • 2
    10-28636 SCREW, PLATE TO CYLINDER BLOCK (3/4")
    SCREW, PLATE TO CYLINDER BLOCK (3/4")
  • 2
    10-455611 SCREW, PLATE TO CYLINDER BLOCK (1-1/8")
    SCREW, PLATE TO CYLINDER BLOCK (1-1/8")
  • 3
    12-29245 WASHER, PLATE SCREW
    WASHER, PLATE SCREW
  • 4
    87-33386A3 SWITCH ASSEMBLY, MERCURY
    SWITCH ASSEMBLY, MERCURY
  • 5
    10-25764 SCREW, MERCURY SWITH TO PLATE (5/8")
    SCREW, MERCURY SWITH TO PLATE (5/8")
  • 6
    11-45076 NUT, WIRE TO MERCURY SWITCH
    NUT, WIRE TO MERCURY SWITCH
  • 7
    8M0058226 RECTIFIER
    RECTIFIER
  • 8
    10-25764 SCREW, RECTIFIER TO IGNITIOJN PLATE (5/8")
    SCREW, RECTIFIER TO IGNITIOJN PLATE (5/8")
  • 9
    11-45076 NUT, RECTIFIER TERMINALS
    NUT, RECTIFIER TERMINALS
  • 10
    89-853654A1 STARTER SOLENOID
    UNITED STATES 6051525 AND BELOW
    AUSTRALIA 8071274 AND BELOW
    CANADA 7186572 AND BELOW
    STARTER SOLENOID
    UNITED STATES 6051525 AND BELOW
    AUSTRALIA 8071274 AND BELOW
    CANADA 7186572 AND BELOW
  • 11
    13-26996 LOCKWASHER, SOLENOID TERMINALS (#10)
    UNITED STATES 6051525 AND BELOW
    AUSTRALIA 8071274 AND BELOW
    CANADA 7186572 AND BELOW
    LOCKWASHER, SOLENOID TERMINALS (#10)
    UNITED STATES 6051525 AND BELOW
    AUSTRALIA 8071274 AND BELOW
    CANADA 7186572 AND BELOW
  • 12
    11-68219 NUT, SOLENOID TERMINALS (10-32)
    UNITED STATES 6051525 AND BELOW
    AUSTRALIA 8071274 AND BELOW
    CANADA 7186572 AND BELOW
    NUT, SOLENOID TERMINALS (10-32)
    UNITED STATES 6051525 AND BELOW
    AUSTRALIA 8071274 AND BELOW
    CANADA 7186572 AND BELOW
  • 13
    13-26993 LOCKWASHER, SOLENOID TERMINALS (5/16")
    UNITED STATES 6051525 AND BELOW
    AUSTRALIA 8071274 AND BELOW
    CANADA 7186572 AND BELOW
    LOCKWASHER, SOLENOID TERMINALS (5/16")
    UNITED STATES 6051525 AND BELOW
    AUSTRALIA 8071274 AND BELOW
    CANADA 7186572 AND BELOW
  • 14
    11-68292 NUT, SOLENOID TERMINALS (5/16-18)
    UNITED STATES 6051525 AND BELOW
    AUSTRALIA 8071274 AND BELOW
    CANADA 7186572 AND BELOW
    NUT, SOLENOID TERMINALS (5/16-18)
    UNITED STATES 6051525 AND BELOW
    AUSTRALIA 8071274 AND BELOW
    CANADA 7186572 AND BELOW
  • 10
    89-96054T STARTER SOLENOID
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    STARTER SOLENOID
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 11
    13-26995 LOCKWASHER, SOLENOID TERMINALS (#8)
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    LOCKWASHER, SOLENOID TERMINALS (#8)
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 11
    13-26995 LOCKWASHER, SOLENOID TERMINALS (#8)
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    LOCKWASHER, SOLENOID TERMINALS (#8)
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 12
    11-26419 NUT, SOLENOID TERMINALS (8-32)
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    NUT, SOLENOID TERMINALS (8-32)
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 13
    13-26992 LOCKWASHER, SOLENOID TERMINALS (1/4")
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    LOCKWASHER, SOLENOID TERMINALS (1/4")
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 14
    11-94330 NUT, SOLENOID TERMINALS (1/4-20)
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    NUT, SOLENOID TERMINALS (1/4-20)
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 15
    10-38601 SCREW, STARTER SOLENOID TO PLATE (1/2")
    SCREW, STARTER SOLENOID TO PLATE (1/2")
  • 16
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
  • 17
    46265 BOOT, TERMINAL-STARTER SOLENOID
    BOOT, TERMINAL-STARTER SOLENOID
  • 18
    90547 LOCATOR, STARTER SOLENOID
    LOCATOR, STARTER SOLENOID
  • 19
    332-7778A12 SWITCH BOX
    SWITCH BOX
  • 20
    10-20619 SCREW, SWITCH BOX (1-3/8")
    SCREW, SWITCH BOX (1-3/8")
  • 21
    23-94304 SPACER, SWITCH BOX SCREW
    SPACER, SWITCH BOX SCREW
  • 22
    84-60871A10 WIRE ASSEMBLY, SWITCH BOX
    WIRE ASSEMBLY, SWITCH BOX
  • 23
    10-62568 SCREW, WIRE
    SCREW, WIRE
  • 24
    84-62310A3 CABLE ASS'Y
    SWITCH BOX TO SWITCH BOX (WHITE/BLACK)
    CABLE ASS'Y
    SWITCH BOX TO SWITCH BOX (WHITE/BLACK)
  • 25
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
