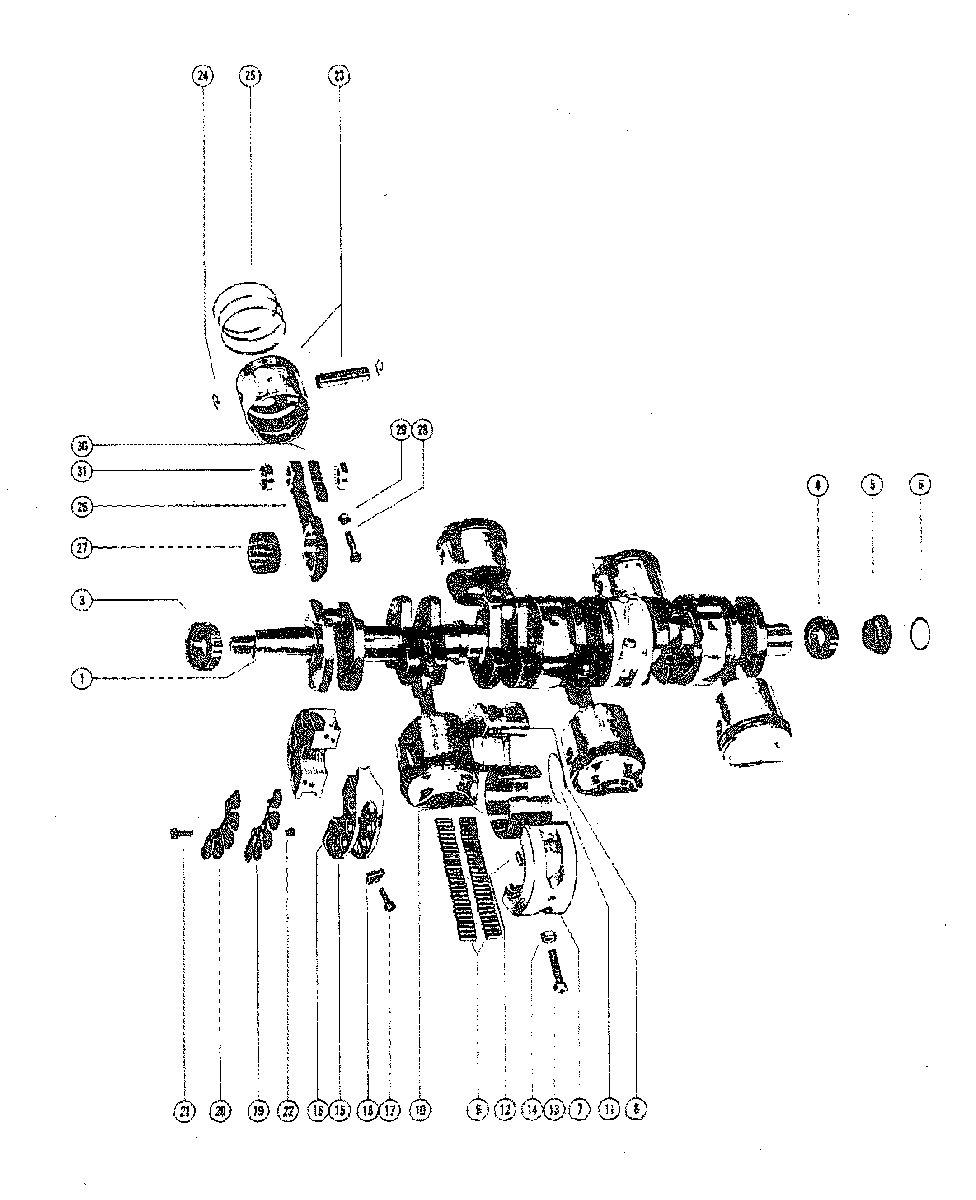

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 115 (6 CYL.) 7147988 THRU 7208847
-
№АртикулНазвание
-
1436-9072A1 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
330-62567T BALL BEARING, UPPERBALL BEARING, UPPER
-
430-63742T BALL BEARING, LOWERBALL BEARING, LOWER
-
554196A6 CARRIER ASSEMBLY, "O" RINGCARRIER ASSEMBLY, "O" RING
-
665800 "O" RING, CARRIER"O" RING, CARRIER
-
7535-5397A4 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
817-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
929-714221 NEEDLE BEARING, OUTER RACENEEDLE BEARING, OUTER RACE
-
1026113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1153-26933 SNAP RING, OUTER RACESNAP RING, OUTER RACE
-
1217-47246 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
1310-22968 SCREW, CENTER MAIN BEARINGSCREW, CENTER MAIN BEARING
-
1411-20184 NUT, BEARING SCREWNUT, BEARING SCREW
-
15540-5266T5 MAIN BEARING ASSEMBLY
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOWMAIN BEARING ASSEMBLY
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOW -
1617-20032 DOWEL PIN, MAIN BEARING
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOWDOWEL PIN, MAIN BEARING
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOW -
1710-45775 SCREW, MAIN BEARING
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOWSCREW, MAIN BEARING
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOW -
1811-45774 NUT, MAIN BEARING SCREW
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOWNUT, MAIN BEARING SCREW
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOW -
1934-56007A1 REED SET, MATCHED
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOWREED SET, MATCHED
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOW -
2034-56008 REED STOP, REED VALVES
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOWREED STOP, REED VALVES
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOW -
2110-62204 SCREW, REED STOP
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOWSCREW, REED STOP
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOW -
2211-53153 NUT, REED STOP SCREW
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOWNUT, REED STOP SCREW
UNITED STATES 6262960 AND BELOW
CANADA 7200642 AND BELOW -
15540-8663A3 MAIN BEARING ASSEMBLY
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UPMAIN BEARING ASSEMBLY
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UP -
1617-20032 DOWEL PIN, MAIN BEARING
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UPDOWEL PIN, MAIN BEARING
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UP -
1710-45775 SCREW, MAIN BEARING
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UPSCREW, MAIN BEARING
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UP -
1811-45774 NUT, MAIN BEARING SCREW
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UPNUT, MAIN BEARING SCREW
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UP -
1934-99422A1 REED SET, MATCHED
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UPREED SET, MATCHED
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UP -
2034-65319 REED STOP, 5 PETAL
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UPREED STOP, 5 PETAL
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UP -
2034-99421 REED STOP, 4 PETAL
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UPREED STOP, 4 PETAL
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UP -
2110-62204 SCREW, REED STOP
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UPSCREW, REED STOP
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UP -
2211-53153 NUT, REED STOP SCREW
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UPNUT, REED STOP SCREW
UNITED STATES 6262961 AND UP
CANADA 7200643 AND UP -
23774-9137A12 PISTON/PISTON PIN ASS'Y
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOWPISTON/PISTON PIN ASS'Y
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOW -
23774-9137A9 PISTON/PISTON PIN ASS'Y
UNITED STATES 5829464 AND UP
AUSTRALIA 8071135 AND UP
CANADA 7171253 AND UPPISTON/PISTON PIN ASS'Y
UNITED STATES 5829464 AND UP
AUSTRALIA 8071135 AND UP
CANADA 7171253 AND UP -
23774-9137A13 PISTON/PISTON PIN ASS'Y (.015 O.S.)
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOWPISTON/PISTON PIN ASS'Y (.015 O.S.)
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOW -
23774-9137A10 PISTON/PISTON PIN ASS'Y (.015 O.S.)
UNITED STATES 5829464 AND UP
AUSTRALIA 8071135 AND UP
CANADA 7171253 AND UPPISTON/PISTON PIN ASS'Y (.015 O.S.)
UNITED STATES 5829464 AND UP
AUSTRALIA 8071135 AND UP
CANADA 7171253 AND UP -
23774-9137A14 PISTON/PISTON PIN ASS'Y (.030 O.S.)
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOWPISTON/PISTON PIN ASS'Y (.030 O.S.)
UNITED STATES 5829463 AND BELOW
AUSTRALIA 8071134 AND BELOW
CANADA 7171252 AND BELOW -
23774-9137A11 PISTON/PISTON PIN ASS'Y (.030 O.S.)
UNITED STATES 5829464 AND UP
AUSTRALIA 8071135 AND UP
CANADA 7171253 AND UPPISTON/PISTON PIN ASS'Y (.030 O.S.)
UNITED STATES 5829464 AND UP
AUSTRALIA 8071135 AND UP
CANADA 7171253 AND UP -
2453-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2539-78816A12 PISTON RING (STANDARD)PISTON RING (STANDARD)
-
2539-78811A12 PISTON RING (.015 OVERSIZE)PISTON RING (.015 OVERSIZE)
-
2539-88392A12 PISTON RING (.030 OVERSIZE)PISTON RING (.030 OVERSIZE)
-
26624-8101A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2731-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2810-54803 SCREW, CONNECTING ROD-W/NUTSCREW, CONNECTING ROD-W/NUT
-
2911-49091 NUT, CONNECTING ROD SCREW-W/NUTNUT, CONNECTING ROD SCREW-W/NUT
-
2810-91012 SCREW, CONNECTING ROD-W/O NUTSCREW, CONNECTING ROD-W/O NUT
-
3029-47270 NEEDLE BEARING, PISTON PINNEEDLE BEARING, PISTON PIN
-
3112-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
-27-85653A87 GASKET SETGASKET SET
