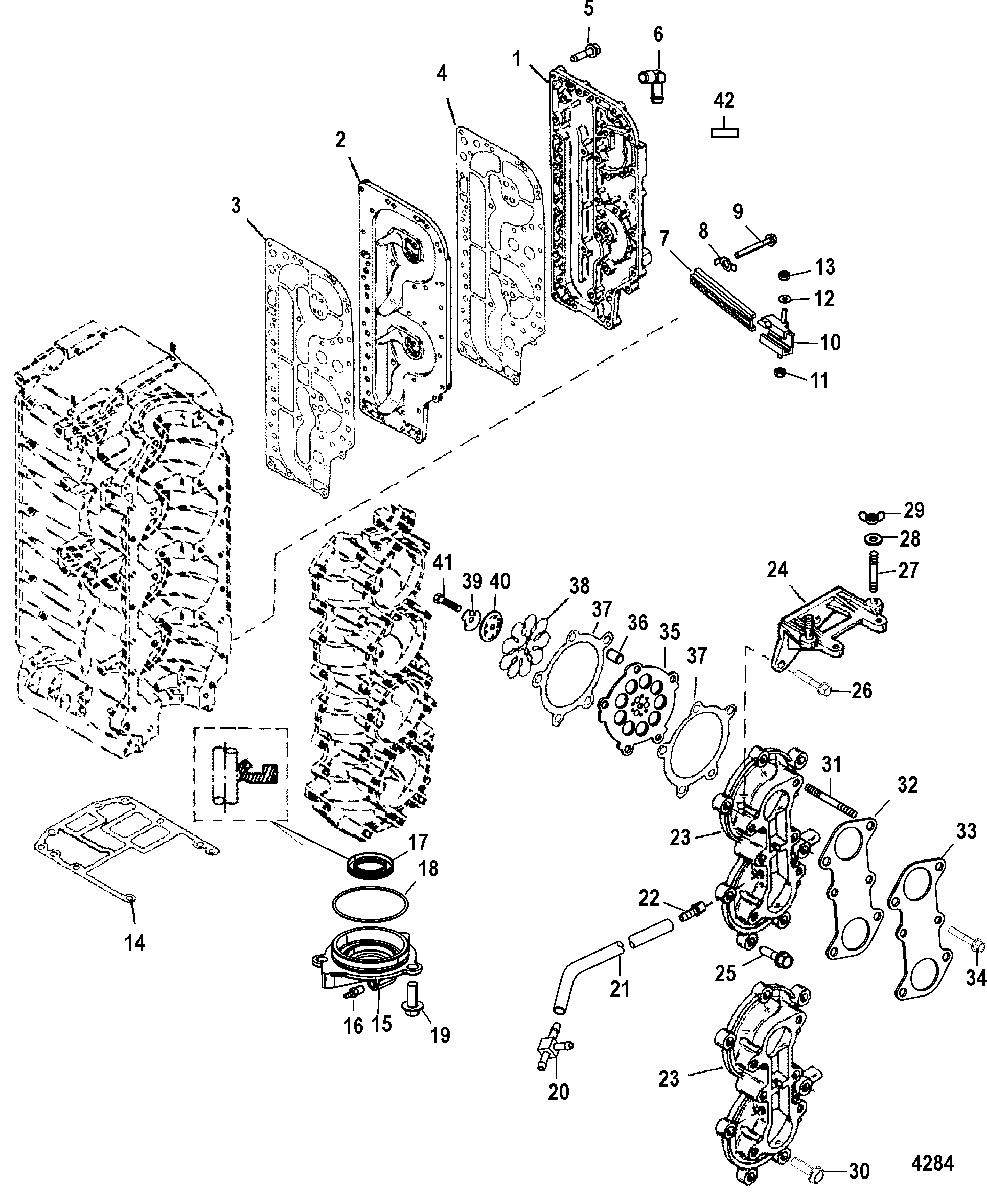

Inducition Manifold and Reed Block для Mercury - 115 (4 CYL.) 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • 1
    44325A1 COVER/PLATE KIT, Exhaust
    COVER/PLATE KIT, Exhaust
  • 2
    NSS NOT SOLD SEPARATE, Exhaust Plate
    NOT SOLD SEPARATE, Exhaust Plate
  • 3
    27-812775007 GASKET, Baffle Plate to Cylinder Block
    GASKET, Baffle Plate to Cylinder Block
  • 4
    27-812775006 GASKET, Exhaust Baffle to Exhaust Cover
    GASKET, Exhaust Baffle to Exhaust Cover
  • 5
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 6
    22-996642 FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
    FITTING, Elbow 90 Degree (.125-27 x .250) Nylon
  • 7
    42881A1 SHIFT RAIL ASSEMBLY
    SHIFT RAIL ASSEMBLY
  • 8
    14-42981 TAB WASHER
    TAB WASHER
  • 9
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 10
    988851 SLIDE
    SLIDE
  • 11
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 12
    12-35459 WASHER
    WASHER
  • 13
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 14
    27-430075 GASKET
    GASKET
  • 15
    1169-858552T2 END CAP ASSEMBLY, Lower
    SN# 0G760300 THRU 0T758474
    END CAP ASSEMBLY, Lower
    SN# 0G760300 THRU 0T758474
  • 15
    1169-858552T2 CAP ASSEMBLY, Lower End
    SN# 0T758475 THRU 0T979999
    CAP ASSEMBLY, Lower End
    SN# 0T758475 THRU 0T979999
  • 16
    21-426585 CHECK VALVE
    CHECK VALVE
  • 17
    26-41953 SEAL
    SN# 0G760300 THRU 0T758474
    SEAL
    SN# 0G760300 THRU 0T758474
  • 17
    26-419533 SEAL, Oil
    SN# 0T758475 THRU 0T979999
    SEAL, Oil
    SN# 0T758475 THRU 0T979999
  • 18
    25-89224 O-RING
    O-RING
  • 19
    10-4010825 SCREW, (M10 x 25) Hex Flange - Stainless Steel
    SCREW, (M10 x 25) Hex Flange - Stainless Steel
  • 20
    22-13033 TEE FITTING
    TEE FITTING
  • 21
    32-1430165 TUBING, (38.00 Inches Bulk)
    (Cut to 5.50 Inch Length)
    TUBING, (38.00 Inches Bulk)
    (Cut to 5.50 Inch Length)
  • 22
    22-130351 FITTING (STRAIGHT)
    FITTING (STRAIGHT)
  • 23
    13545A1 MANIFOLD ASSEMBLY, Induction
    MANIFOLD ASSEMBLY, Induction
  • 24
    827514 BRACKET
    BRACKET
  • 25
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 26
    10-81742740 SCREW, (M8 x 40)
    SCREW, (M8 x 40)
  • 27
    16-8161949 STUD, (M6 x 44)
    STUD, (M6 x 44)
  • 28
    12-49221 WASHER, (.187 x .500 x .062) Neoprene
    WASHER, (.187 x .500 x .062) Neoprene
  • 29
    11-816872 WING NUT
    WING NUT
  • 30
    10-40001167 SCREW, (M8 x 110) (#4 CYLINDER)
    SCREW, (M8 x 110) (#4 CYLINDER)
  • 31
    16-824470 STUD, (M8 x 1.25) (#1, 2, 3 CYLINDER)
    STUD, (M8 x 1.25) (#1, 2, 3 CYLINDER)
  • 32
    27-134612 GASKET
    GASKET
  • 33
    13460 COVER
    COVER
  • 34
    10-81742755 SCREW, (M8 x 55)
    SCREW, (M8 x 55)
  • 35
    42963A11 REED BLOCK ASSEMBLY
    REED BLOCK ASSEMBLY
  • 36
    NSS NOT SOLD SEPARATE, Dowel Pin
    NOT SOLD SEPARATE, Dowel Pin
  • 37
    27-139376 GASKET
    GASKET
  • 38
    34-43018A1 REED SET
    REED SET
  • 39
    14-429821 TAB WASHER
    TAB WASHER
  • 40
    42924 RETAINER
    RETAINER
  • 41
    10-88421471 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 42
    37-856985A9 DECAL, EPA Label Information
    (1999)
    DECAL, EPA Label Information
    (1999)
  • 42
    37-804667A00 DECAL, EPA Label Information
    (2000)
    DECAL, EPA Label Information
    (2000)
  • 42
    37-804667A01 DECAL, EPA Label Information
    (2001)
    DECAL, EPA Label Information
    (2001)
  • 42
    37-804667A02 DECAL, EPA Label Information
    (2002)
    DECAL, EPA Label Information
    (2002)
  • 42
    37-804667A03 DECAL, EPA Label Information
    (2003)
    DECAL, EPA Label Information
    (2003)
  • 42
    37-804667A04 DECAL, EPA Label Information
    (2004)
    DECAL, EPA Label Information
    (2004)
  • -
    27-13461A99 GASKET SET
    GASKET SET
  • -
    17791R97 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
