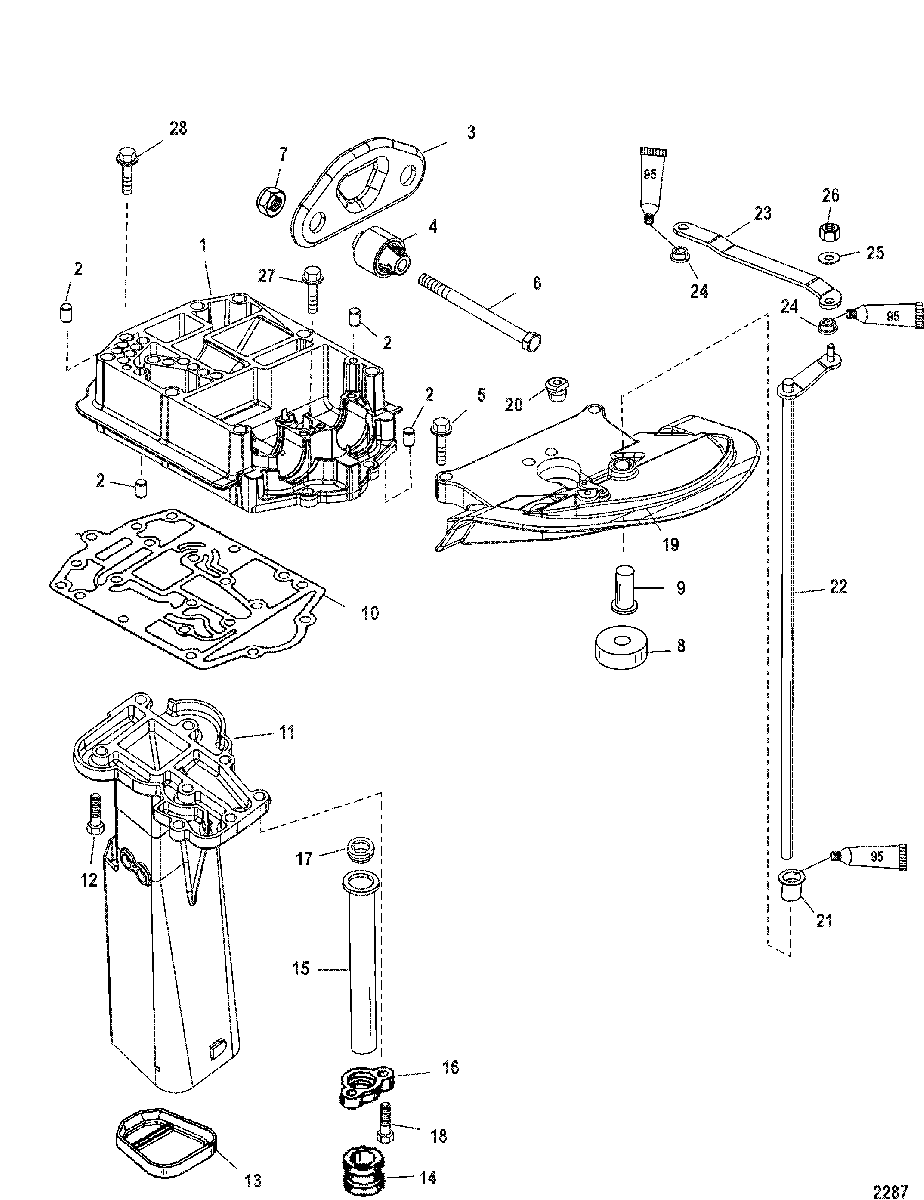

Exhaust Plate(S/N USA-0T801000/ BEL-0P268000 and Up) для Mercury - 115 (4 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
1881912T01 PLATE, ExhaustPLATE, Exhaust
-
217-23784 PIN, DowelPIN, Dowel
-
3881973 RETAINERRETAINER
-
4881915002 MOUNTMOUNT
-
510-881975 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
610-898487 BOLT, (M12 x 175)BOLT, (M12 x 175)
-
711-896963 NUT, (M12)NUT, (M12)
-
823-813745 SPACER
(Long)SPACER
(Long) -
823-11289 SPACER
(X-Long)SPACER
(X-Long) -
943585 COUPLINGCOUPLING
-
1027-430086 GASKETGASKET
-
1142966T07 TUBE, ExhaustTUBE, Exhaust
-
1210-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
138M0039075 SEALSEAL
-
1425-89417004 GROMMETGROMMET
-
1532-8M0042791 TUBE, Water - Long (13.21 Inches)
(13 1/4 in) (Long)TUBE, Water - Long (13.21 Inches)
(13 1/4 in) (Long) -
1532-8M0042792 TUBE, Water - X Long (18.21 Inches)
(18 1/4in) (X-Long)TUBE, Water - X Long (18.21 Inches)
(18 1/4in) (X-Long) -
16824661 CLAMPCLAMP
-
17814080001 SEAL
(Upper)SEAL
(Upper) -
1810-889833045 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
19881918T03 CLAMP, Bracket, Upper MountCLAMP, Bracket, Upper Mount
-
2025-19565002 GROMMETGROMMET
-
2123-48237 BUSHINGBUSHING
-
2279932A20 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
2342912A3 SHIFT LINKSHIFT LINK
-
2423-48475 BUSHINGBUSHING
-
2512-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
2611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2710-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
2810-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
