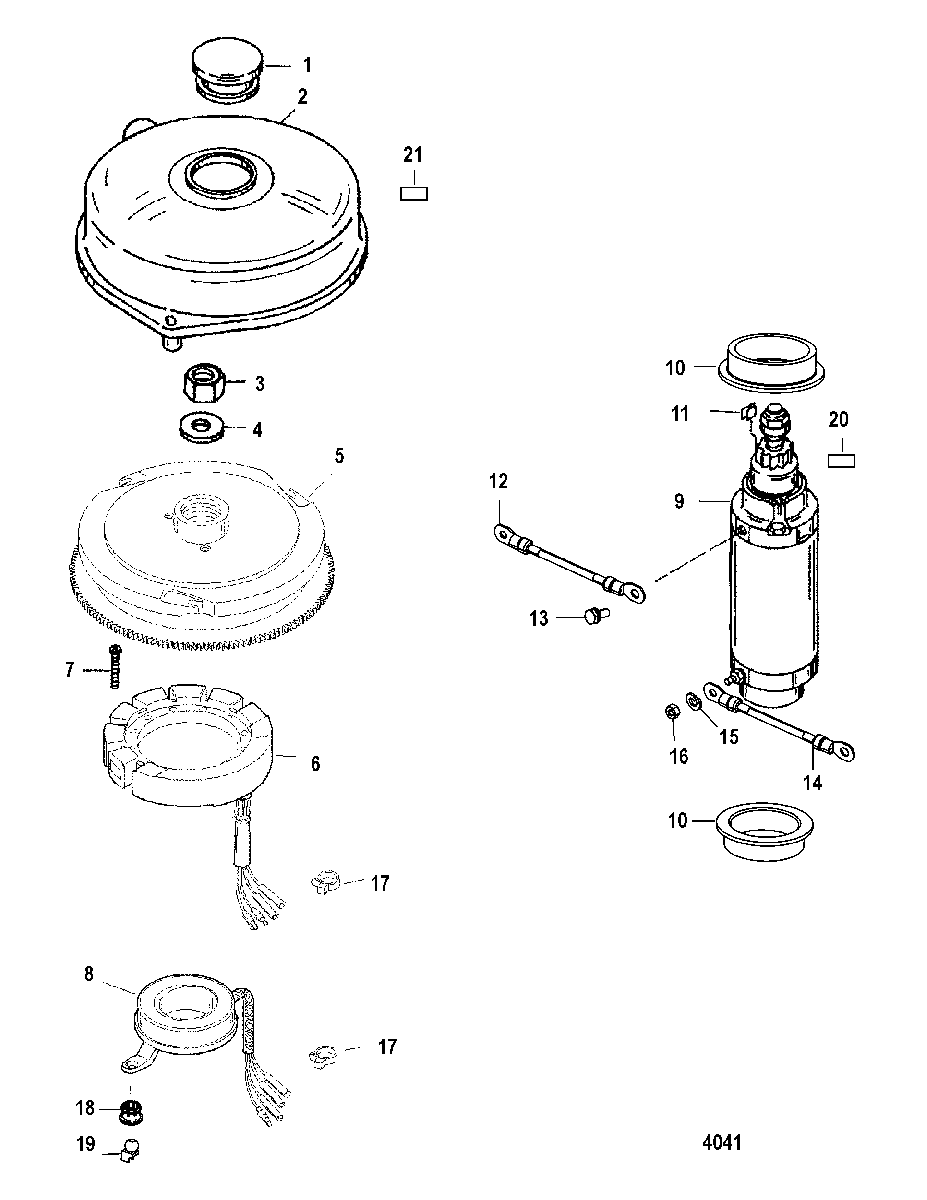

Flywheel and Starter Motor для Mercury - 115 (4 CYL.) 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • 1
    19-45907 PLUG, Yellow
    PLUG, Yellow
  • 2
    812777T1 COVER ASSEMBLY
    COVER ASSEMBLY
  • 3
    11-42979 NUT, (M16)
    NUT, (M16)
  • 4
    12-33001 WASHER, (.641 x 1.250 x .190)
    WASHER, (.641 x 1.250 x .190)
  • 5
    261-878227T2 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 6
    398-832075A21 IGNITION STATOR KIT
    IGNITION STATOR KIT
  • 7
    10-4013930 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 8
    854513T TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 9
    50-893892T STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 10
    23-8M0034918 COLLAR
    COLLAR
  • 11
    8M0043376 STOP, Rubber
    STOP, Rubber
  • 12
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black
    CABLE ASSEMBLY, (6.00 Inches) Black
  • 13
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
  • 14
    84-93388A8 CABLE ASSEMBLY, (12.5 Inchs) Black
    CABLE ASSEMBLY, (12.5 Inchs) Black
  • 15
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 16
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 17
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 17
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 17
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 18
    93254 SWIVEL BASE
    SWIVEL BASE
  • 19
    93421 SWIVEL BALL
    SWIVEL BALL
  • 20
    NSS NOT SOLD SEPARATE, Decal-Warning- High Voltage
    NOT SOLD SEPARATE, Decal-Warning- High Voltage
  • 21
    37-881865 DECAL, Caution-Start in Gear (Start In Gear)
    DECAL, Caution-Start in Gear (Start In Gear)
