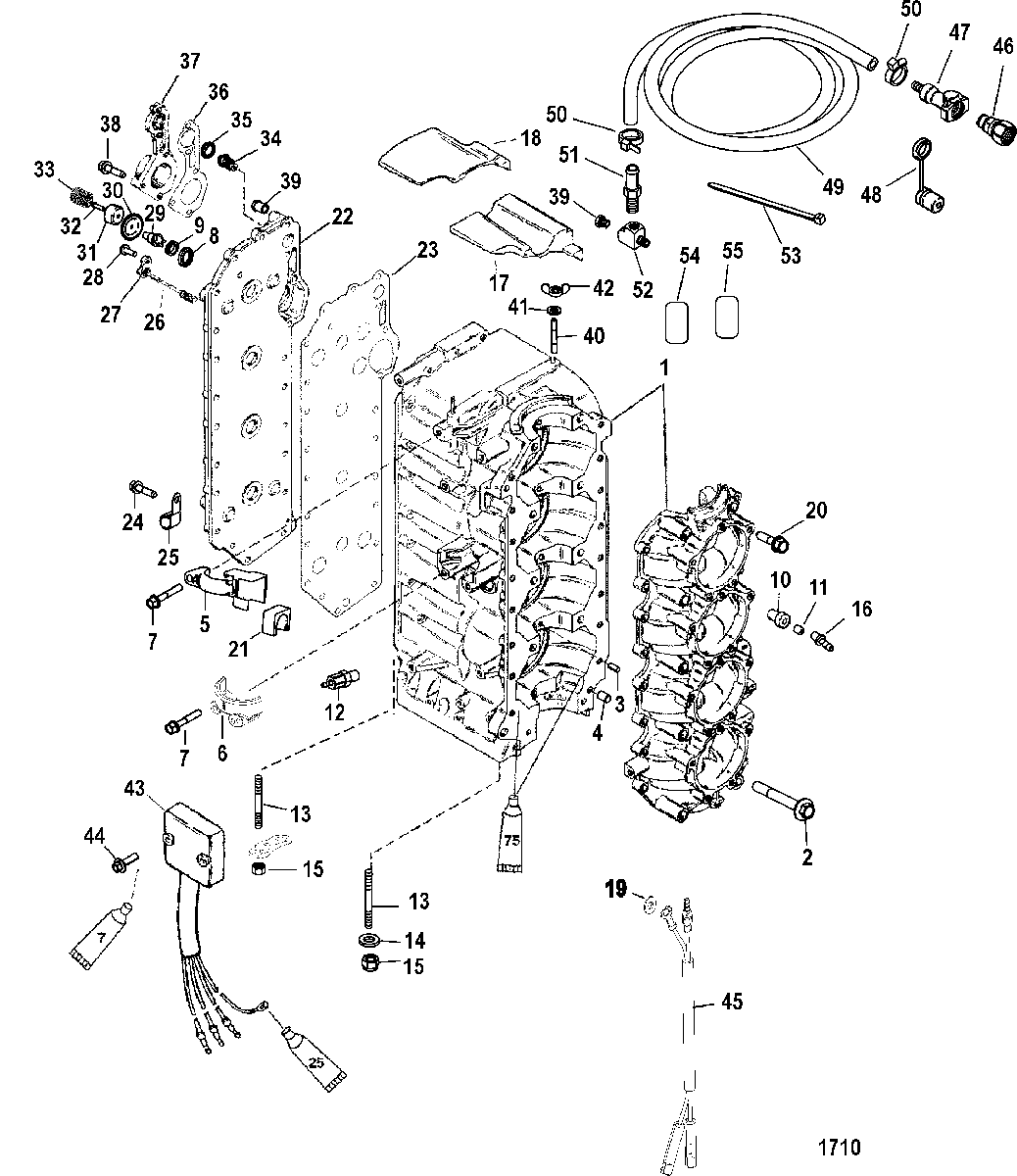

Cylinder Block and Crankcase для Mercury - 115 (4 CYL.) 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • 1
    877-9191T24 CYLINDER BLOCK
    CYLINDER BLOCK
  • 2
    10-4009680 SCREW, (M10 x 80)
    SCREW, (M10 x 80)
  • 3
    17-8M0036405 PIN (BEARING RACE)
    PIN (BEARING RACE)
  • 4
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 5
    428842 COVER (TOP)
    COVER (TOP)
  • 6
    76867 COVER (BOTTOM)
    COVER (BOTTOM)
  • 7
    10-81742750 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 8
    65848 CARRIER
    CARRIER
  • 9
    25-64872 GROMMET
    GROMMET
  • 10
    813801A1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 11
    21-42657A3 CHECK VALVE
    CHECK VALVE
  • 12
    21-891664 CHECK VALVE
    CHECK VALVE
  • 13
    16-821676A1 STUD KIT (M10)
    STUD KIT (M10)
  • 14
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 15
    11-40140 NUT, (M10)
    NUT, (M10)
  • 16
    21-426233 CHECK VALVE (Press-In)
    CHECK VALVE (Press-In)
  • 17
    824703A1 PLUG KIT
    PLUG KIT
  • 18
    NSS NOT SOLD SEPARATE, Plug
    NOT SOLD SEPARATE, Plug
  • 19
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 20
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 21
    99162001 BOOT
    BOOT
  • 22
    1035-9196A2 COVER
    COVER
  • 23
    27-443284 GASKET
    GASKET
  • 24
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 25
    54-814634 CLAMP
    CLAMP
  • 26
    787992 SENDER, Temperature
    SENDER, Temperature
  • 27
    889733 RETAINER
    RETAINER
  • 28
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 29
    86596T POPPET VALVE
    POPPET VALVE
  • 30
    648771 DIAPHRAGM
    DIAPHRAGM
  • 31
    12-94182 WASHER
    WASHER
  • 32
    10-69570 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 33
    24-42996 SPRING, (Stainless Steel)
    SPRING, (Stainless Steel)
  • 34
    14586 THERMOSTAT
    THERMOSTAT
  • 35
    27-62386001 GASKET
    GASKET
  • 36
    27-430068 GASKET
    GASKET
  • 37
    8M0047619 COVER
    COVER
  • 38
    10-82127335 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 38
    10-81742755 SCREW, (M8 x 55)
    SCREW, (M8 x 55)
  • 39
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 40
    16-8161949 STUD, (M6 x 44)
    STUD, (M6 x 44)
  • 41
    12-49221 WASHER, (.187 x .500 x .062) Neoprene
    WASHER, (.187 x .500 x .062) Neoprene
  • 42
    11-816872 WING NUT
    WING NUT
  • 43
    821889A51 REV LIMITER
    REV LIMITER
  • 44
    10-82130030 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 45
    84-855212A1 HARNESS ASSEMBLY, Adaptor
    HARNESS ASSEMBLY, Adaptor
  • 46
    22-857175 COUPLING INSERT
    (Coastal/Saltwater)
    COUPLING INSERT
    (Coastal/Saltwater)
  • 47
    22-857176 COUPLING BODY
    (Coastal/Saltwater)
    COUPLING BODY
    (Coastal/Saltwater)
  • 48
    19-858240 CAP
    (Coastal/Saltwater)
    CAP
    (Coastal/Saltwater)
  • 49
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
    (Coastal/Saltwater)
    TUBING, (.312) (70.00 Inches Bulk)
    (Coastal/Saltwater)
  • 50
    54-816311T TIE STRAP, (8.00 Inches)
    (Coastal/Saltwater)
    TIE STRAP, (8.00 Inches)
    (Coastal/Saltwater)
  • 51
    22-857219 FITTING
    (Coastal/Saltwater)
    FITTING
    (Coastal/Saltwater)
  • 52
    22-286241 FITTING
    (Coastal/Saltwater)
    FITTING
    (Coastal/Saltwater)
  • 53
    54-850181 TIE STRAP, (11.750 Inches)
    TIE STRAP, (11.750 Inches)
  • 54
    NSS NOT SOLD SEPARATE, Decal-Serialization
    NOT SOLD SEPARATE, Decal-Serialization
  • 55
    NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate
    NOT SOLD SEPARATE, Decal-Serial Overlaminate
  • -
    27-13461A99 GASKET SET
    GASKET SET
  • -
    17791R97 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
