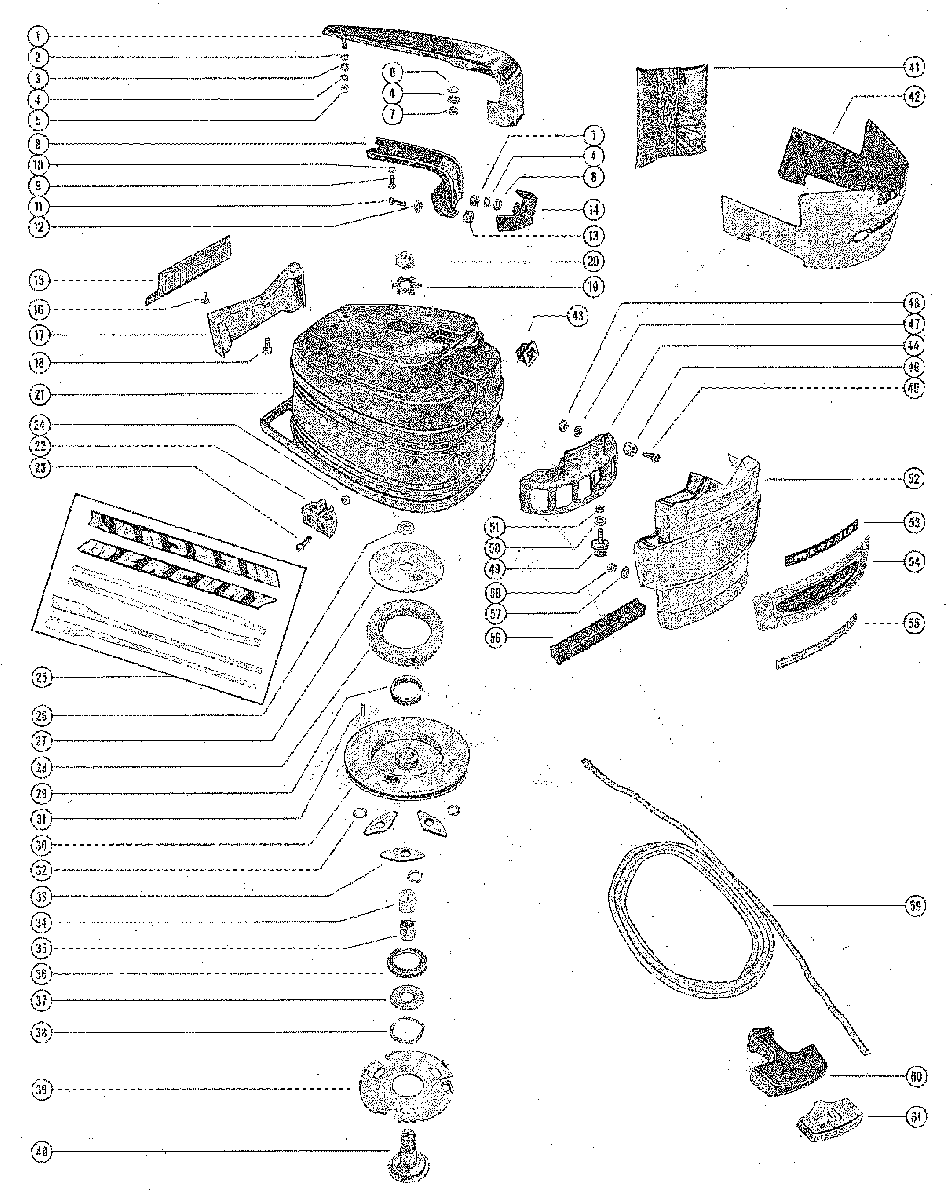

TOP COWL AND STARTER ASSEMBLY (MERC 110-3 AND MERC 110-4) для Mercury - 110 1470349 THRU 1865778

  • №
    Артикул
    Название
  • 1
    35387 HANDLE, CHROME-TOP COWL
    HANDLE, CHROME-TOP COWL
  • 2
    12-20583 WASHER, CHROME HANDLE STUD
    WASHER, CHROME HANDLE STUD
  • 3
    12-22937 WASHER, CHROME HANDLE STUD
    WASHER, CHROME HANDLE STUD
  • 4
    13-26992 LOCKWASHER, CHROME HANDLE STUD AND KEY FASTENING SCREW
    LOCKWASHER, CHROME HANDLE STUD AND KEY FASTENING SCREW
  • 5
    11-8267089 NUT, CHROME HANDLE STUD (REAR)
    NUT, CHROME HANDLE STUD (REAR)
  • 6
    12-29245 WASHER, CHROME HANDLE STUD (FRONT) AND KEY FASTENING SCREW
    WASHER, CHROME HANDLE STUD (FRONT) AND KEY FASTENING SCREW
  • 7
    11-20088 NUT, CHROME HANDLE STUD (FRONT) AND KEY FASTENING SCREW
    NUT, CHROME HANDLE STUD (FRONT) AND KEY FASTENING SCREW
  • 8
    35436 HANDLE, INSIDE-TOP COWL
    HANDLE, INSIDE-TOP COWL
  • 9
    10-28636 SCREW, INSIDE HANDLE TO CHROME HANDLE
    SCREW, INSIDE HANDLE TO CHROME HANDLE
  • 10
    13-26992 LOCKWASHER, INSIDE HANDLE TO CHROME HANDLE SCREW
    LOCKWASHER, INSIDE HANDLE TO CHROME HANDLE SCREW
  • 11
    10-22956 SCREW, INSIDE HANDLE TO CHROME HANDLE SCREW
    SCREW, INSIDE HANDLE TO CHROME HANDLE SCREW
  • 12
    12-29245 WASHER, INSIDE HANDLE TO CHROME HANDLE SCREW
    WASHER, INSIDE HANDLE TO CHROME HANDLE SCREW
  • 13
    11-24652 NUT, INSIDE HANDLE FASTENING SCREW
    NUT, INSIDE HANDLE FASTENING SCREW
  • 14
    35384 KEY, TOP COWL HANDLE
    KEY, TOP COWL HANDLE
  • 15
    35407 SCREEN, VENT
    SCREEN, VENT
  • 16
    10-62568 SCREW, VENT SCREEN TO TOP COWL
    SCREW, VENT SCREEN TO TOP COWL
  • 17
    31405 BRACKET, REAR-TOP COWL MOUNTING
    BRACKET, REAR-TOP COWL MOUNTING
  • 18
    10-30110 SCREW, REAR BRACKET TO TOP COWL
    SCREW, REAR BRACKET TO TOP COWL
  • 19
    14-20165 TAB WASHER, SHEAVE SHAFT NUT
    TAB WASHER, SHEAVE SHAFT NUT
  • 20
    11-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)
    NUT, SHEAVE SHAFT (LEFT HAND THREAD)
  • 21
    2107-2357 COWL, TOP
    COWL, TOP
  • 22
    35437 BRACKET, PORT-TOP COWL FASTENING
    SERIAL 00000000-01872665
    BRACKET, PORT-TOP COWL FASTENING
    SERIAL 00000000-01872665
  • 22
    35438 BRACKET, STARBOARD-TOP COWL FASTENING
    SERIAL 00000000-01872665
    BRACKET, STARBOARD-TOP COWL FASTENING
    SERIAL 00000000-01872665
  • 22
    38956 BRACKET, PORT-TOP COWL FASTENING
    SERIAL 00187266-09999999
    BRACKET, PORT-TOP COWL FASTENING
    SERIAL 00187266-09999999
  • 22
    38959 BRACKET, STARBOARD-TOP COWL FASTENING
    SERIAL 00187266-09999999
    BRACKET, STARBOARD-TOP COWL FASTENING
    SERIAL 00187266-09999999
  • 23
    10-37655 SCREW, BRACKET TO TOP COWL
    SCREW, BRACKET TO TOP COWL
  • 24
    11-27164 NUT, BRACKET TO TOP COWL SCREW
    NUT, BRACKET TO TOP COWL SCREW
  • 25
    37-13053A86 DECAL SET, TOP COWL (NOT AS SHOWN)
    DECAL SET, TOP COWL (NOT AS SHOWN)
  • 25
    37-13053A86 DECAL SET, TOP COWL
    DECAL SET, TOP COWL
  • 26
    12-35647 WASHER, STARTER SPRING RETAINER
    (USED ON EARLY PRODUCTION ENGINES ONLY)
    WASHER, STARTER SPRING RETAINER
    (USED ON EARLY PRODUCTION ENGINES ONLY)
  • 27
    20155 RETAINER, STARTER SPRING
    RETAINER, STARTER SPRING
  • 28
    24-29340T02 SPRING, STARTER REWIND
    SPRING, STARTER REWIND
  • 29
    23-28912 BUSHING, SPRING GUIDE
    BUSHING, SPRING GUIDE
  • 30
    50-93696A2 STARTER SHEAVE ASSEMBLY
    STARTER SHEAVE ASSEMBLY
  • 31
    17-22896 PIN, RETAINER-STARTER CABLE
    PIN, RETAINER-STARTER CABLE
  • 32
    13-36206 WASHER, WAVE-STARTER PAWL
    WASHER, WAVE-STARTER PAWL
  • 33
    30596 PAWL, STARTER
    PAWL, STARTER
  • 34
    23-28919 BUSHING, NYLON-SHEAVE SHAFT SPACER
    BUSHING, NYLON-SHEAVE SHAFT SPACER
  • 35
    45477A1 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 35
    23-61005 SPACER, SHEAVE SHAFT
    SPACER, SHEAVE SHAFT
  • 36
    26179 RETAINER, SHEAVE SHAFT TO STARTER SHEAVE
    RETAINER, SHEAVE SHAFT TO STARTER SHEAVE
  • 37
    12-26180 WASHER, SHEAVE SHAFT RETAINER
    WASHER, SHEAVE SHAFT RETAINER
  • 37
    12-35559 WASHER, SHEAVE SHAFT RETAINER
    WASHER, SHEAVE SHAFT RETAINER
  • 38
    13-20160 WASHER, WAVE-RETAINER TENSION
    WASHER, WAVE-RETAINER TENSION
  • 39
    30595 PLATE, RETAINER-STARTER PAWL
    PLATE, RETAINER-STARTER PAWL
  • 40
    30812 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 40
    35558 SHAFT, SHEAVE
    SHAFT, SHEAVE
  • 41
    35848 BLANKET, SOUND ABSORBING-TOP COWL (REAR)
    BLANKET, SOUND ABSORBING-TOP COWL (REAR)
  • 42
    35564 BLANKET, SOUND ABSORBING-TOP COWL
    BLANKET, SOUND ABSORBING-TOP COWL
  • 43
    57821 INSERT, ROPE GUIDE-TOP COWL
    ORDER A-37938 ROPE GUIDE INSERT FOR ALL MERC 110-3 AND MERC 110L-3 ENGINES
    INSERT, ROPE GUIDE-TOP COWL
    ORDER A-37938 ROPE GUIDE INSERT FOR ALL MERC 110-3 AND MERC 110L-3 ENGINES
  • 44
    31906 BRACKET, FRONT-TOP COWL MOUNTING
    BRACKET, FRONT-TOP COWL MOUNTING
  • 45
    10-20784 SCREW, FRONT BRACKET TO TOP COWL
    SCREW, FRONT BRACKET TO TOP COWL
  • 45
    10-20784 SCREW, FRONT BRACKET TO TOP COWL
    SCREW, FRONT BRACKET TO TOP COWL
  • 46
    23-35555 SPACER, FRONT BRACKET SCREW
    SPACER, FRONT BRACKET SCREW
  • 47
    12-29245 WASHER, FRONT BRACKET SCREW
    WASHER, FRONT BRACKET SCREW
  • 48
    11-8267089 NUT, FRONT BRACKET SCREW
    NUT, FRONT BRACKET SCREW
  • 49
    53472 MOUNT, RUBBER-FRONT BRACKET
    MOUNT, RUBBER-FRONT BRACKET
  • 50
    12-69057 WASHER, RUBBER-MOUNT NUT
    WASHER, RUBBER-MOUNT NUT
  • 51
    11-20088 NUT, RUBBER MOUNT TO FRONT BRACKET
    NUT, RUBBER MOUNT TO FRONT BRACKET
  • 52
    2105-2352A4 COVER ASSEMBLY, FRONT
    COVER ASSEMBLY, FRONT
  • 52
    2105-2352A4 COVER ASSBEMLY, FRONT
    COVER ASSBEMLY, FRONT
  • 53
    37-37743 DECAL, FRONT COVER("MERC 110")
    DECAL, FRONT COVER("MERC 110")
  • 53
    37-37743 DECAL, FRONT COVER ("MERC 110")
    DECAL, FRONT COVER ("MERC 110")
  • 54
    37-37744 DECAL, FRONT COVER
    DECAL, FRONT COVER
  • 54
    37-37744 DECAL, FRONT COVER
    DECAL, FRONT COVER
  • 55
    37-37753 DECAL, FRONT COVER ("CHOKE-STOP-FUEL")
    DECAL, FRONT COVER ("CHOKE-STOP-FUEL")
  • 56
    35497 STRIP, RUBBER-FRONT COVER (LOWER)
    STRIP, RUBBER-FRONT COVER (LOWER)
  • 57
    12-29245 WASHER, FRONT COVER STUD
    WASHER, FRONT COVER STUD
  • 58
    11-8267089 NUT, FRONT COVER STUD
    NUT, FRONT COVER STUD
  • 59
    50-12066Q10 STARTER CABLE ASSEMBLY
    STARTER CABLE ASSEMBLY
  • 60
    28747 HANDLE, STARTER CABLE
    HANDLE, STARTER CABLE
  • 61
    79470A1 RETAINER, STARTER CABLE AND HANDLE
    RETAINER, STARTER CABLE AND HANDLE
