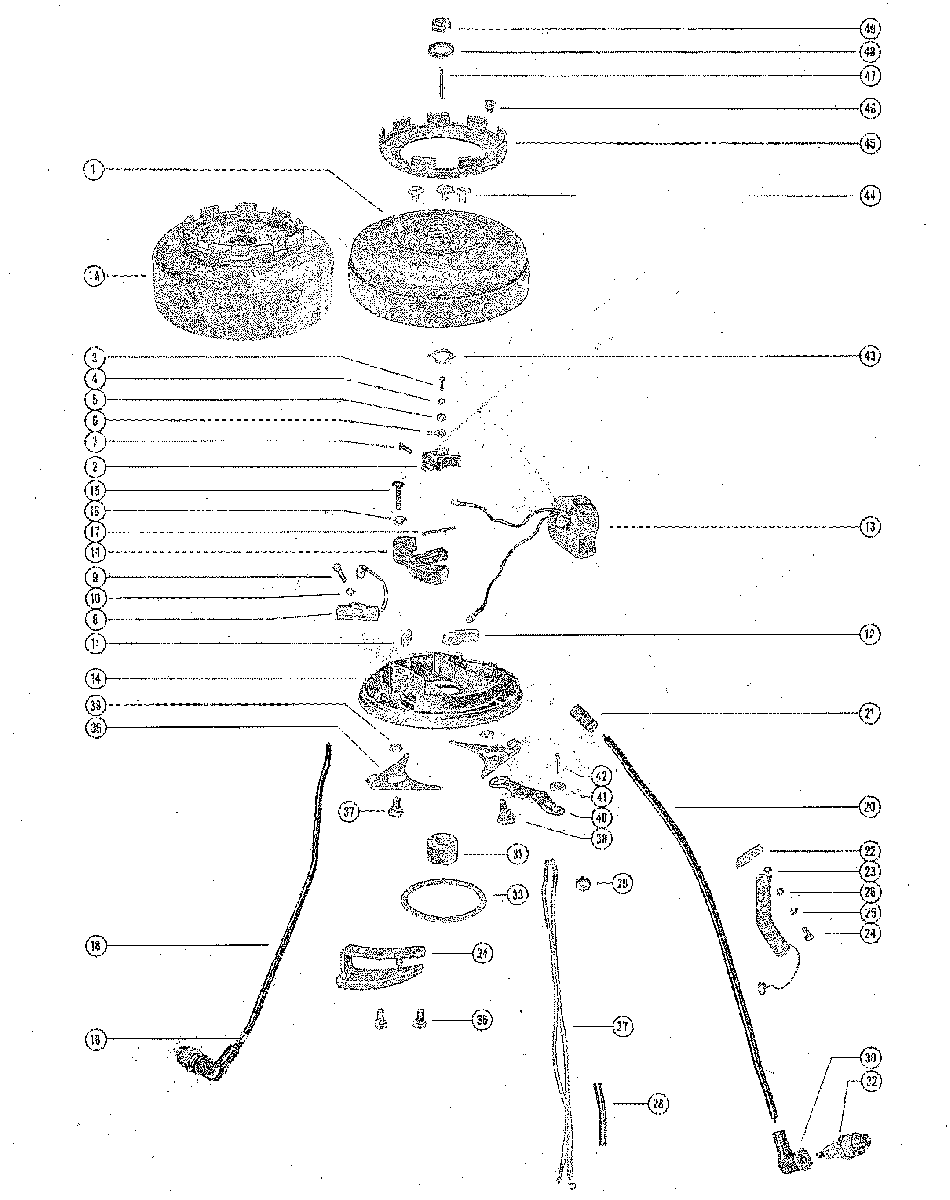

FLYWHEEL AND STATOR PLATE ASSEMBLY для Mercury - 110 1470349 THRU 1865778

  • №
    Артикул
    Название
  • 1
    217-2020A1 FLYWHEEL
    FLYWHEEL
  • 1A
    217-2020A1 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • -
    398-692A2 STATOR PLATE ASSEMBLY
    STATOR PLATE ASSEMBLY
  • 2
    398-174 BREAKER POINT ASSEMBLY
    BREAKER POINT ASSEMBLY
  • 3
    10-21133 SCREW, BREAKER FASTENING
    SCREW, BREAKER FASTENING
  • 4
    13-21134 LOCKWASHER, BREAKER FASTENING SCREW
    LOCKWASHER, BREAKER FASTENING SCREW
  • 5
    12-21135 WASHER, BREAKER AND CLIP FASTENING SCREW (1/32)
    WASHER, BREAKER AND CLIP FASTENING SCREW (1/32)
  • 5
    12-32131 WASHER, BREAKER FSTENING SCREW (1/16)
    WASHER, BREAKER FSTENING SCREW (1/16)
  • 6
    398-732 CLIP, GROUND WIRE LEAD
    CLIP, GROUND WIRE LEAD
  • 7
    10-23976 SCREW, BREAKER CONNECTION
    SCREW, BREAKER CONNECTION
  • 8
    398-693 CONDENSER
    CONDENSER
  • 9
    10-21136 SCREW, CONDENSER FASTENING
    SCREW, CONDENSER FASTENING
  • 10
    13-21134 LOCKWASHER, CONDENSER FASTENING SCREW
    LOCKWASHER, CONDENSER FASTENING SCREW
  • 11
    398-193 PLUG, FELT
    PLUG, FELT
  • 12
    398-1859 WIPER, CAN-FELT
    WIPER, CAN-FELT
  • 13
    398-173 COIL, IGNITION
    COIL, IGNITION
  • 14
    398-692 STATOR AND CORE ASSEMBLY
    STATOR AND CORE ASSEMBLY
  • 15
    398-963 SCREW, CORE FASTENING
    SCREW, CORE FASTENING
  • 16
    13-21144 LOCKWASHER, CORE FASTENING SCREW
    LOCKWASHER, CORE FASTENING SCREW
  • 17
    54-31059 CLIP, CORE AND COIL
    CLIP, CORE AND COIL
  • 18
    84-821945A46 LEAD WIRE (TOP)
    LEAD WIRE (TOP)
  • 19
    20117 MARKER, "TOP"-LEAD WIRE
    MARKER, "TOP"-LEAD WIRE
  • 20
    84-821945A46 LEAD WIRE (BOTTOM)
    LEAD WIRE (BOTTOM)
  • 21
    32-21137 TUBE, LEAD WIRES
    TUBE, LEAD WIRES
  • 22
    398-179 CLAMP, LEAD WIRE TUBE
    CLAMP, LEAD WIRE TUBE
  • 23
    24-31763 SPRING, LEAD WIRES
    SPRING, LEAD WIRES
  • 24
    10-21139 SCREW, LEAD WIRE CLAMP FASTENING
    SCREW, LEAD WIRE CLAMP FASTENING
  • 25
    13-21134 LOCKWASHER, LEAD WIRE CLAMP SCREW
    LOCKWASHER, LEAD WIRE CLAMP SCREW
  • 26
    12-21135 WASHER, LEAD WIRE CLAMP SCREW
    WASHER, LEAD WIRE CLAMP SCREW
  • 27
    398-1872 GROUND LEAD, MAGNETO TO TERMINAL BLOCK
    GROUND LEAD, MAGNETO TO TERMINAL BLOCK
  • 28
    23-30419 SLEEVE, GROUND LEAD INSULATION
    SLEEVE, GROUND LEAD INSULATION
  • 29
    25-29051 GROMMET, GROUND LEAD THRU STATOR PLATE
    GROMMET, GROUND LEAD THRU STATOR PLATE
  • 30
    85-63709A1 PROTECTOR, SPARK PLUG
    PROTECTOR, SPARK PLUG
  • 31
    398-722 CAM, BREAKER
    CAM, BREAKER
  • 32
    33-22805 SPARK PLUG (CHAMPION-J7J)
    SPARK PLUG (CHAMPION-J7J)
  • 32
    33-22805 SPARK PLUG (AC-M45)
    SPARK PLUG (AC-M45)
  • 33
    15-22371 SHIM, MAGNETO PILOT
    SHIM, MAGNETO PILOT
  • 34
    31907 THROTTLE CAM
    THROTTLE CAM
  • 35
    10-28707 SCREW, THROTTLE CAM TO STATOR PLATE
    SCREW, THROTTLE CAM TO STATOR PLATE
  • 36
    23019 CLAMP, MAGNETO FRICTION
    CLAMP, MAGNETO FRICTION
  • 37
    10-30991 SCREW, FRICTION CLAMP TO STATOR PLATE (SHORT)
    SCREW, FRICTION CLAMP TO STATOR PLATE (SHORT)
  • 38
    10-30650 SCREW, FRICTION CLAMP AND LINK TO STATOR PLATE (LONG)
    SCREW, FRICTION CLAMP AND LINK TO STATOR PLATE (LONG)
  • 39
    13-21272 LOCKWASHER, FRICTION CLAMP SCREW
    LOCKWASHER, FRICTION CLAMP SCREW
  • 40
    31431 LINK, MAGNETO-THROTTLE CONTROL
    LINK, MAGNETO-THROTTLE CONTROL
  • 41
    12-22907 WASHER, MAGNETO LINK
    WASHER, MAGNETO LINK
  • 42
    18-210711 COTTER PIN, MAGNETO LINK TO THROTTLE CONTROL LEVER
    COTTER PIN, MAGNETO LINK TO THROTTLE CONTROL LEVER
  • 43
    13-22027 WASHER, WAVE-MAGNETO CAM TENSION
    WASHER, WAVE-MAGNETO CAM TENSION
  • 44
    19-29900 PLUG, PLASTIC-FLYWHEEL SCREW HOLES
    PLUG, PLASTIC-FLYWHEEL SCREW HOLES
  • 45
    50-30662 RATCHET, FLYWHEEL
    RATCHET, FLYWHEEL
  • 46
    10-31010 SCREW, RATCHET TO FLYWHEEL
    SCREW, RATCHET TO FLYWHEEL
  • 47
    28-22026 KEY, FLYWHEEL
    KEY, FLYWHEEL
  • 48
    12-27025 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 49
    11-20696 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • --
    92-33673 IGNITION COIL BOND KIT
    IGNITION COIL BOND KIT
