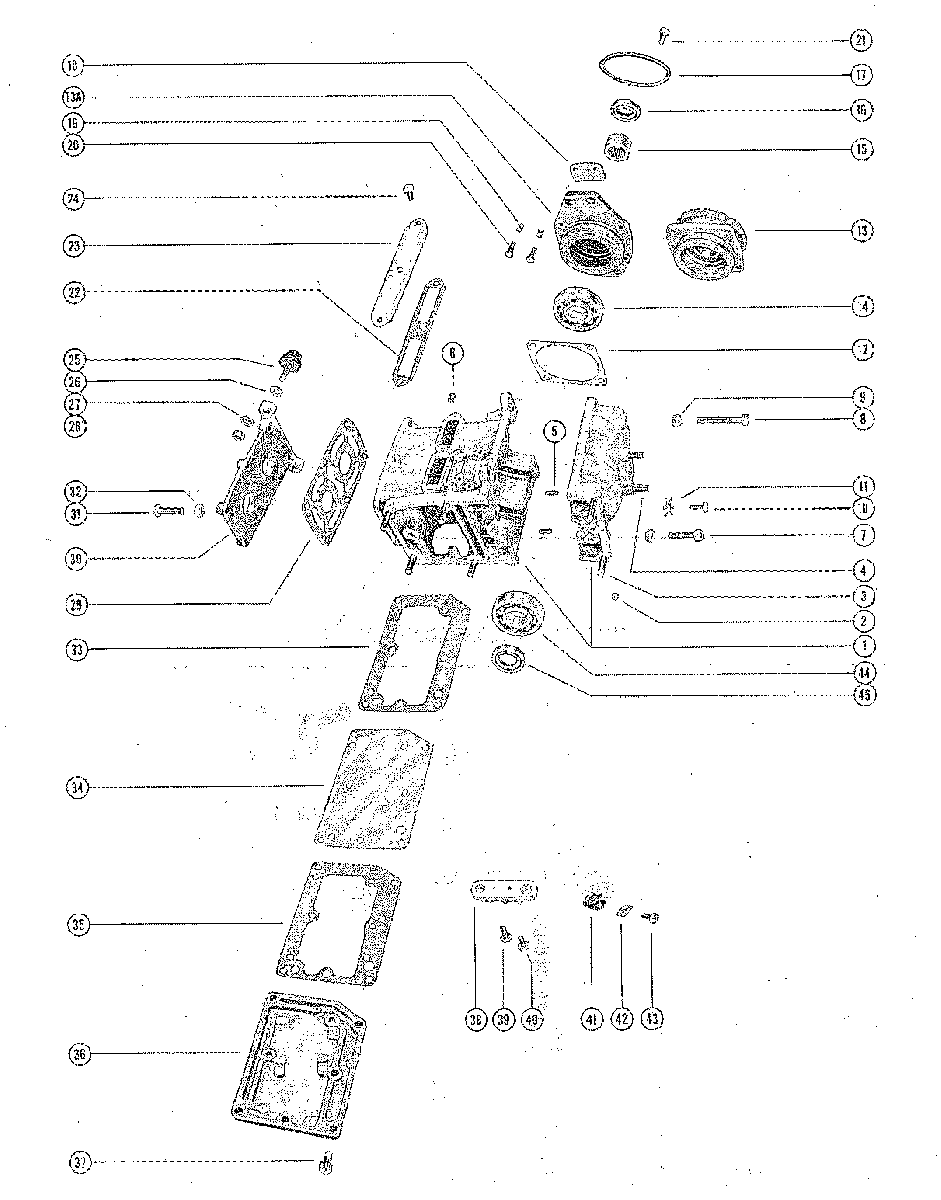

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 110 1470349 THRU 1865778

  • №
    Артикул
    Название
  • 1
    837-1903A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 2
    21-30819A1 CHECK VALVE ASSEMBLY, CRANKCASE
    CHECK VALVE ASSEMBLY, CRANKCASE
  • 3
    16-66021 STUD, BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING
    STUD, BLOCK AND CRANKCASE TO DRIVE SHAFT HOUSING
  • 4
    10-657461 STUD, CARBURETOR MOUNTING
    STUD, CARBURETOR MOUNTING
  • 5
    17-21438 PIN, DOWEL-CRANKCASE TO CYLINDER BLOCK
    PIN, DOWEL-CRANKCASE TO CYLINDER BLOCK
  • 6
    22-328022 PLUG, PIPE-CYLINDER BLOCK
    PLUG, PIPE-CYLINDER BLOCK
  • 7
    10-64278 SCREW, CRANKCASE TO CYLINDER BLOCK (1")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1")
  • 8
    10-24624 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
  • 9
    11-24652 NUT, CRANKCASE FASTENING SCREW
    NUT, CRANKCASE FASTENING SCREW
  • 10
    10-98260 SCREW, MAIN BEARING LOCKING
    SCREW, MAIN BEARING LOCKING
  • 11
    14-20091 TAB WASHER, MAIN BEARING LOCKING SCREW
    TAB WASHER, MAIN BEARING LOCKING SCREW
  • 12
    15-31412A1 SHIM, UPPER HOUSING TO CYLINDER BLOCK (.002-3-5-10)
    SHIM, UPPER HOUSING TO CYLINDER BLOCK (.002-3-5-10)
  • 13
    1129-1908A1 BEARING HOUSING ASSEMBLY, UPPER
    BEARING HOUSING ASSEMBLY, UPPER
  • 13A
    1132-2400A1 BEARING HOUSING ASSEMBLY, UPPER
    BEARING HOUSING ASSEMBLY, UPPER
  • 14
    30-72961 BEARING, BALL-UPPER BEARING HOUSING
    BEARING, BALL-UPPER BEARING HOUSING
  • 15
    31-31410 BEARING, ROLLER-UPPER BEARING HOUSING
    BEARING, ROLLER-UPPER BEARING HOUSING
  • 16
    26-31411 OIL SEAL, UPPER BEARING HOUSING
    OIL SEAL, UPPER BEARING HOUSING
  • 17
    25-20863 "0" RING, UPPER BEARING HOUSING
    "0" RING, UPPER BEARING HOUSING
  • 18
    33899 CLAMP, HOLD DOWN RING
    CLAMP, HOLD DOWN RING
  • 19
    24-27087 SPRING, HOLD DOWN RING CLAMP SCREW
    SPRING, HOLD DOWN RING CLAMP SCREW
  • 20
    10-32228 SCREW, HOLD DOWN RING CLAMP TO BEARING HOUSING
    SCREW, HOLD DOWN RING CLAMP TO BEARING HOUSING
  • 13A
    1132-2400A1 BEARING HOUSING ASSEMBLY, UPPER
    SERIAL 01680573-09999999
    BEARING HOUSING ASSEMBLY, UPPER
    SERIAL 01680573-09999999
  • 14
    30-72961 BEARING, BALL-UPPER BEARNING HOUSING
    SERIAL 01680573-09999999
    BEARING, BALL-UPPER BEARNING HOUSING
    SERIAL 01680573-09999999
  • 15
    31-31410 BEARING, ROLLER-UPPER BEARING HOUSING
    SERIAL 01680573-09999999
    BEARING, ROLLER-UPPER BEARING HOUSING
    SERIAL 01680573-09999999
  • 16
    26-31411 OIL SEAL, UPPER BEARING HOUSING
    SERIAL 01680573-09999999
    OIL SEAL, UPPER BEARING HOUSING
    SERIAL 01680573-09999999
  • 17
    25-20863 "O" RING, UPPER BEARING HOUSING
    SERIAL 01680573-09999999
    "O" RING, UPPER BEARING HOUSING
    SERIAL 01680573-09999999
  • 18
    54-34598 CLAMP, HOLD DOWN RING
    SERIAL 01680573-09999999
    CLAMP, HOLD DOWN RING
    SERIAL 01680573-09999999
  • 19
    24-34731 SPRING, RING CLAMP SCREW
    SERIAL 01680573-09999999
    SPRING, RING CLAMP SCREW
    SERIAL 01680573-09999999
  • 20
    10-36205 SCREW, RING CLAMP TO BEARING HOUSING
    SERIAL 01680573-09999999
    SCREW, RING CLAMP TO BEARING HOUSING
    SERIAL 01680573-09999999
  • 21
    10-22444 SCREW, UPPER BEARING HOUSING
    SCREW, UPPER BEARING HOUSING
  • 21
    10-35662 SCREW, UPPER BEARING HOUSING (#10-24 X 1/2)
    NOTE: SEE BLOCK COMMENTS
    SCREW, UPPER BEARING HOUSING (#10-24 X 1/2)
    NOTE: SEE BLOCK COMMENTS
  • 21
    10-39002 SCREW, UPPER BEARING HOUSING (#12-24 X 1/2)
    NOTE: SEE BLOCK COMMENTS
    SCREW, UPPER BEARING HOUSING (#12-24 X 1/2)
    NOTE: SEE BLOCK COMMENTS
  • --
    12-847883 WASHER, UPPER BEARING HOUSING SCREW
    WASHER, UPPER BEARING HOUSING SCREW
  • 22
    27-780321 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 23
    31430 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
  • 24
    10-20665 SCREW, PORT COVER TO CYLINDER BLOCK
    SCREW, PORT COVER TO CYLINDER BLOCK
  • 25
    31014 MOUNT, RUBBER-CYLINDER BLOCK COVER TO TOP COWL
    MOUNT, RUBBER-CYLINDER BLOCK COVER TO TOP COWL
  • 26
    12-69057 WASHER, RUBBER MOUNT TO CYLINDER BLOCK COVER
    WASHER, RUBBER MOUNT TO CYLINDER BLOCK COVER
  • 27
    13-26992 LOCKWASHER, RUBBER MOUNT TO CYLINDER BLOCK COVER
    LOCKWASHER, RUBBER MOUNT TO CYLINDER BLOCK COVER
  • 28
    11-20088 NUT, RUBBER MOUNT TO CYLINDER BLOCK COVER
    NUT, RUBBER MOUNT TO CYLINDER BLOCK COVER
  • 29
    27-41382 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 30
    1014-1909 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 31
    10-20653 SCREW, CYLINDER BLOCK COVER TO CYLINDER BLOCK
    SCREW, CYLINDER BLOCK COVER TO CYLINDER BLOCK
  • 32
    11-24652 NUT, CYLINDER BLOCK COVER MOUNTING SCREW
    NUT, CYLINDER BLOCK COVER MOUNTING SCREW
  • 33
    27-78035 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
  • 34
    78034 PLATE, BAFFLE-EXHAUST MANIFOLD
    PLATE, BAFFLE-EXHAUST MANIFOLD
  • 35
    27-78035 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
    GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
  • 36
    74919T COVER, EXNAUST MANIFOLD
    COVER, EXNAUST MANIFOLD
  • 37
    10-28636 SCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTING
    SCREW, BAFFLE PLATE AND MANIFOLD COVER MOUNTING
  • 38
    30212 TERMINAL BLOCK, EXHAUST MANIFOLD COVER
    TERMINAL BLOCK, EXHAUST MANIFOLD COVER
  • 39
    10-72169 SCREW, TERMINAL COVER TO EXHAUST MANIFOLD COVER
    SCREW, TERMINAL COVER TO EXHAUST MANIFOLD COVER
  • 40
    10-62568 SCREW, MAGNETO GROUND LEADS TO TERMINAL BLOCK
    SCREW, MAGNETO GROUND LEADS TO TERMINAL BLOCK
  • 41
    54-24836 CLIP, MAGNETO GROUND LEAD
    CLIP, MAGNETO GROUND LEAD
  • 42
    8M0084613 "D" WASHER, GOUND LEAD FASTENING SCREW
    "D" WASHER, GOUND LEAD FASTENING SCREW
  • 43
    10-62568 SCREW, GROUND LEAD CLIP TO MANIFOLD COVER
    SCREW, GROUND LEAD CLIP TO MANIFOLD COVER
  • 44
    30-72961 BEARING, BALL-CRANKCASE (LOWER)
    BEARING, BALL-CRANKCASE (LOWER)
  • 45
    26-31411 OIL SEAL, CRANKCASE (LOWER)
    OIL SEAL, CRANKCASE (LOWER)
