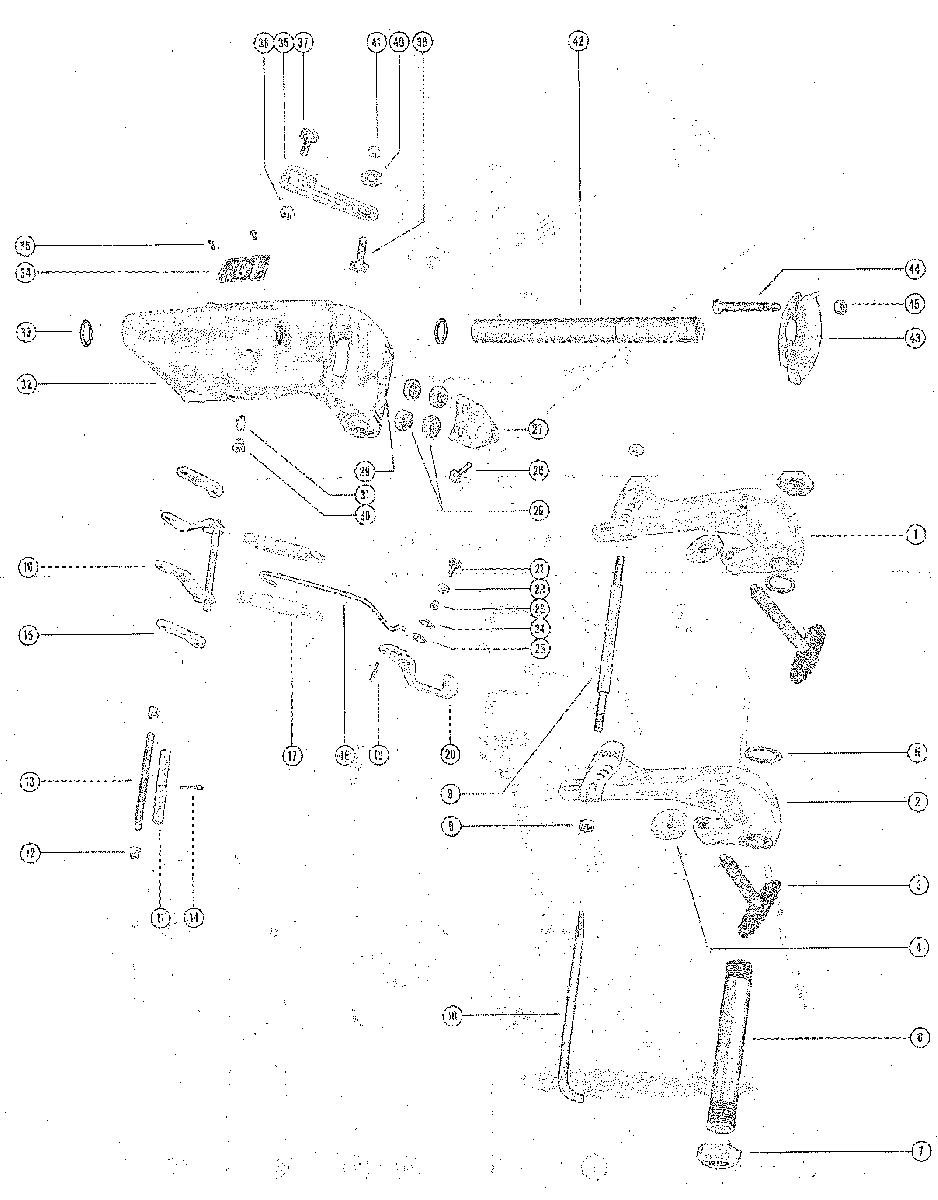

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 110 1470349 THRU 1865778

  • №
    Артикул
    Название
  • 1
    1418-789A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 1
    1467-5406A2 CLAMP BRACKET ASSEMBLY (PORT)
    CLAMP BRACKET ASSEMBLY (PORT)
  • 2
    1467-5406A2 CLAMP BRAKCET ASSEMBLY (STARBOARD)
    CLAMP BRAKCET ASSEMBLY (STARBOARD)
  • 3
    59170A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 4
    12-26227 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 5
    12-52864 SHIM, TILT TUBE - CLAMP TO SWIVEL BRACKET
    SHIM, TILT TUBE - CLAMP TO SWIVEL BRACKET
  • 6
    45757 TILT TUBE, CLAMP TO SWIVEL BRACKET
    TILT TUBE, CLAMP TO SWIVEL BRACKET
  • -
    54-8M0085928 CLIP, SAFETY CHAIN - TILT TUBE
    CLIP, SAFETY CHAIN - TILT TUBE
  • 7
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 8
    16-59622 STUD, CLAMP BRACKET SPACER
    STUD, CLAMP BRACKET SPACER
  • -
    12-20583 WASHER, CLAMP BRACKET STUD
    WASHER, CLAMP BRACKET STUD
  • 9
    11-24652 NUT, CLAMP BRACKET STUD FASTENING
    NUT, CLAMP BRACKET STUD FASTENING
  • 10
    17-55952A1 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 11
    23-30813 SPACER, TUBE- REVERSE LOCK LEVER ROD
    SPACER, TUBE- REVERSE LOCK LEVER ROD
  • 12
    23-26856 BUSHING, NYLON - REVERSE LOCK LEVER ROD
    BUSHING, NYLON - REVERSE LOCK LEVER ROD
  • 13
    56663 ROD, REVERSE LOCK TO SWIVEL BRACKET
    ROD, REVERSE LOCK TO SWIVEL BRACKET
  • 14
    18-56206 COTTER PIN, REVERSE LOCK LEVER TO ROD
    COTTER PIN, REVERSE LOCK LEVER TO ROD
  • 15
    30815 LINK, REVERSE LOCK LEVER
    LINK, REVERSE LOCK LEVER
  • 16
    30807A1 REVERSE LOCK LEVER ASSEMBLY
    REVERSE LOCK LEVER ASSEMBLY
  • 17
    24-31918 SPRING, TENSION - REVERSE LOCK LEVER
    SPRING, TENSION - REVERSE LOCK LEVER
  • 18
    30872 ROD, LINK - REVERSE LOCK LEVER (3/32" HOLE)
    ROD, LINK - REVERSE LOCK LEVER (3/32" HOLE)
  • 18
    38318 ROD, LINK - REVERSE LOCK LEVER (1/8")
    SERIAL 00000000-01786455
    ROD, LINK - REVERSE LOCK LEVER (1/8")
    SERIAL 00000000-01786455
  • 18
    38318 ROD, LINK - REVERSE LOCK LEVER (5/32")
    SERIAL 01786456-09999999
    ROD, LINK - REVERSE LOCK LEVER (5/32")
    SERIAL 01786456-09999999
  • 19
    17-25905 PIN, ROLL - SWIVEL BRACKET CONTROL LEVER
    PIN, ROLL - SWIVEL BRACKET CONTROL LEVER
  • 20
    32351A1 LEVER, CONTROL - REVERSE LOCK (3/32")
    LEVER, CONTROL - REVERSE LOCK (3/32")
  • 20
    32351T LEVER, CONTROL - REVERSE LOCK (1/8" HOLE)
    LEVER, CONTROL - REVERSE LOCK (1/8" HOLE)
  • 21
    10-28789 SCREW, CONTROL LEVER TO SWIVEL BRACKET
    ON LATER ENGINES, THE C-10-31308 SCREW IS NOW REPLACED BY C-10-28789 SCREW AND A-12-37407 WASHER. BOTH MUST BE ORDERED FOR REPLACEMENT ON OLDER ENGINES.
    SCREW, CONTROL LEVER TO SWIVEL BRACKET
    ON LATER ENGINES, THE C-10-31308 SCREW IS NOW REPLACED BY C-10-28789 SCREW AND A-12-37407 WASHER. BOTH MUST BE ORDERED FOR REPLACEMENT ON OLDER ENGINES.
  • 22
    12-56681 WASHER, CONTROL LEVER SCREW
    ON LATER ENGINES, THE C-10-31308 SCREW IS NOW REPLACED BY C-10-28789 SCREW AND A-12-37407 WASHER. BOTH MUST BE ORDERED FOR REPLACEMENT ON OLDER ENGINES.
    WASHER, CONTROL LEVER SCREW
    ON LATER ENGINES, THE C-10-31308 SCREW IS NOW REPLACED BY C-10-28789 SCREW AND A-12-37407 WASHER. BOTH MUST BE ORDERED FOR REPLACEMENT ON OLDER ENGINES.
  • 23
    23-31309 SPACER, CONTROL LEVER FASTENING SCREW
    SPACER, CONTROL LEVER FASTENING SCREW
  • 24
    13-34632 WASHER, WAVE - CONTROL LEVER FASTENING SCREW
    WASHER, WAVE - CONTROL LEVER FASTENING SCREW
  • 25
    12-24812 WASHER, CONTROL LEVER FASTENING SCREW
    WASHER, CONTROL LEVER FASTENING SCREW
  • 26
    20203 DISC, FRCTION - CLAMP PLATE AND SWIVEL BRACKET
    DISC, FRCTION - CLAMP PLATE AND SWIVEL BRACKET
  • 27
    61296 PLATE, CLAMP - C0-PILOT
    PLATE, CLAMP - C0-PILOT
  • 28
    10-56649 SCREW, CLAMP PLATE ADJUSTING
    SCREW, CLAMP PLATE ADJUSTING
  • 29
    37-31043 DECAL, INSTRUCTION - SWIVEL BRACKET
    DECAL, INSTRUCTION - SWIVEL BRACKET
  • 29
    37-35513 DECAL, INSTRUCTION - SWIVEL BRACKET
    DECAL, INSTRUCTION - SWIVEL BRACKET
  • 30
    19-77633Q LUBRICAP, GREASE FITTING
    LUBRICAP, GREASE FITTING
  • 31
    22-74036 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 32
    1451-1788 SWIVEL BRACEKT
    SWIVEL BRACEKT
  • 33
    25-25439 "O" RING, SWIVEL BRACKET
    "O" RING, SWIVEL BRACKET
  • 34
    38-31042 SERIAL PLATE
    SERIAL PLATE
  • 35
    10-28642 SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
    SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET
  • 36
    63310A1 LEVER, TILP STOP
    LEVER, TILP STOP
  • 37
    10-29237 SCREW, RETAINING - TILT STOP LEVER
    SCREW, RETAINING - TILT STOP LEVER
  • 38
    11-24652 NUT, TILT STOP LEVER RETAINING SCREW
    NUT, TILT STOP LEVER RETAINING SCREW
  • 39
    10-27791 SCREW, ANCHOR - TILT STOP LEVER
    SCREW, ANCHOR - TILT STOP LEVER
  • 40
    13-20846 WASHER, WAVE - LEVER ANCHOR SCREW
    WASHER, WAVE - LEVER ANCHOR SCREW
  • 42
    17-30688 SWIVEL PIN, SWIVEL BRACKET TO SADDLE
    SWIVEL PIN, SWIVEL BRACKET TO SADDLE
  • 43
    77334 CO-PILOT DISC
    CO-PILOT DISC
  • 43
    77334 CO-PILOT DISC
    CO-PILOT DISC
  • 44
    10-30679 SCREW, CO-PILOT DISC TO SADDLE
    SCREW, CO-PILOT DISC TO SADDLE
  • 45
    11-24652 NUT, CO-PILOT DISC FASTENING SCREW
    NUT, CO-PILOT DISC FASTENING SCREW
