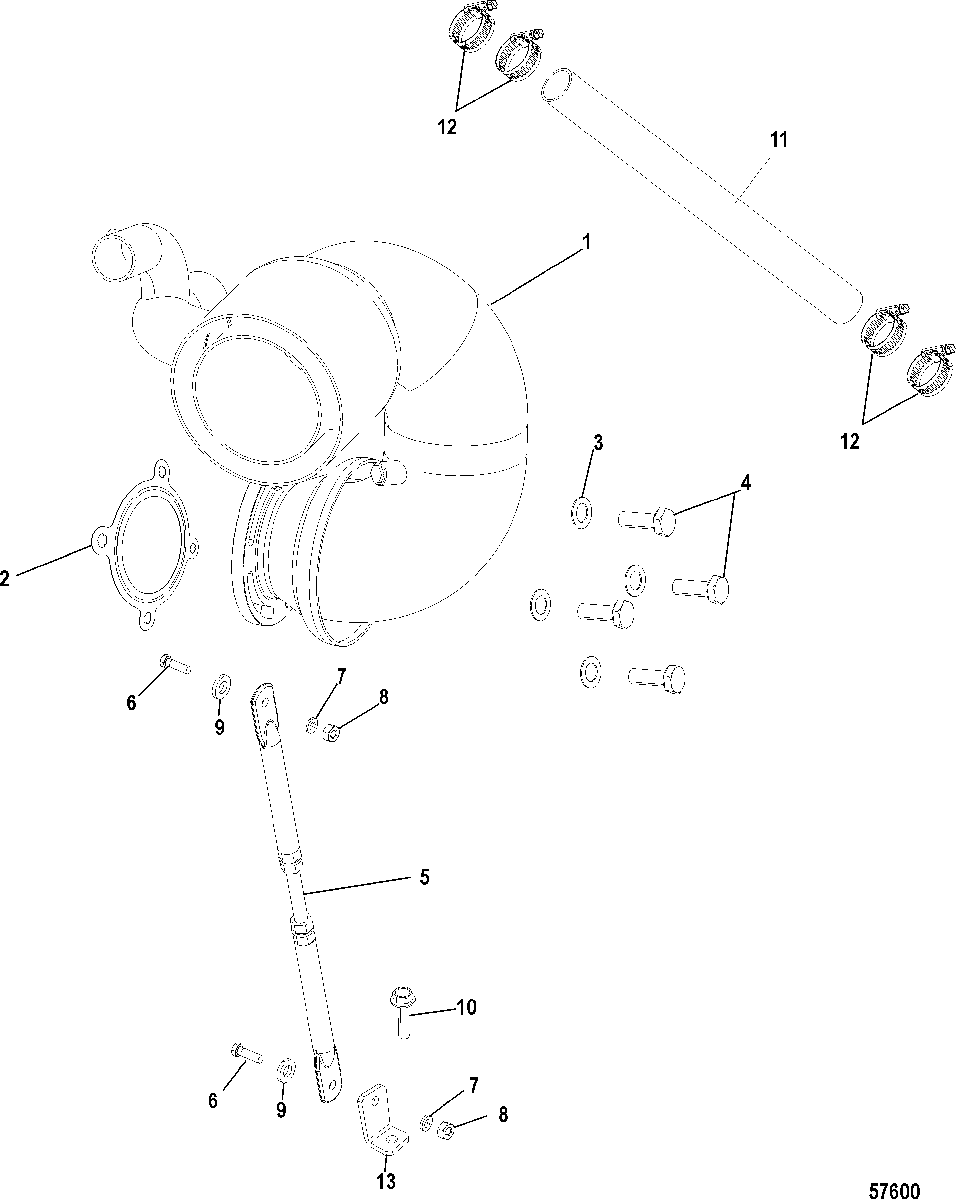

Riser, Exhaust, QSC, Center, Design-II Stamped 8M6002616 для Mercruiser - ZEUS 3000 0M968957 THRU 0M968982
-
№АртикулНазвание
-
-8M0087907 RISER KIT, ExhaustRISER KIT, Exhaust
-
1NSS NOT SOLD SEPARATE, RISERNOT SOLD SEPARATE, RISER
-
227-8M0069196 GASKETGASKET
-
312-8M0068951 WASHERWASHER
-
410-853219 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
58M0069201 BRACEBRACE
-
610-35047 SCREW, (.375-16 x 1.250) Stainless SteelSCREW, (.375-16 x 1.250) Stainless Steel
-
712-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
811-82670912 NUT, (.375-16) Stainless SteelNUT, (.375-16) Stainless Steel
-
913-47659 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1010-8M0068824 SCREW, (M12 x 1.75)SCREW, (M12 x 1.75)
-
1132-8M0068899 HOSE, 50.8 x 711.2mmHOSE, 50.8 x 711.2mm
-
1254-8M0068822 CLAMP, HOSE, 46-70mmCLAMP, HOSE, 46-70mm
-
138M0068904 BRACEBRACE
