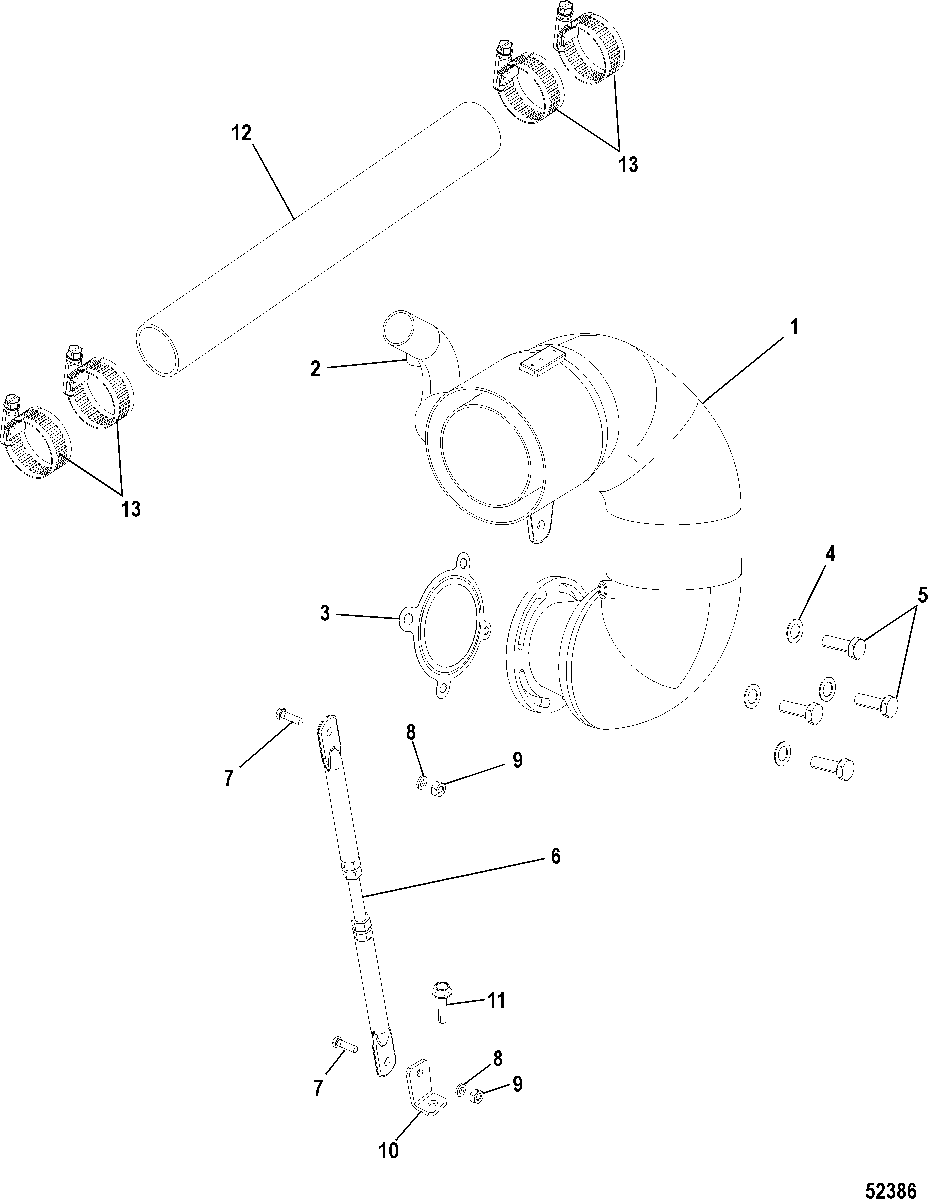

Riser, Exhaust, QSB 6.7 для Mercruiser - ZEUS 3000 0M968957 THRU 0M968982
-
№АртикулНазвание
-
-8M0078331 RISER KIT, Exhaust Elbow
18.75 Inch Shaft With Drop BoxRISER KIT, Exhaust Elbow
18.75 Inch Shaft With Drop Box -
-8M0079427 RISER KIT, Exhaust Elbow
18.75 Inch Shaft Without Drop Box and 28.37 Inch With Drop BoxRISER KIT, Exhaust Elbow
18.75 Inch Shaft Without Drop Box and 28.37 Inch With Drop Box -
-8M0080284 RISER KIT, Exhaust Elbow
28.37 Inch Shaft Without Drop BoxRISER KIT, Exhaust Elbow
28.37 Inch Shaft Without Drop Box -
1NSS NOT SOLD SEPARATE, RISERNOT SOLD SEPARATE, RISER
-
2NSS NOT SOLD SEPARATE, Fitting, 90 DegreeNOT SOLD SEPARATE, Fitting, 90 Degree
-
38M0068196 SEALSEAL
-
412-8M0068951 WASHERWASHER
-
510-853219 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
68M0068856 BRACE
28.37 inch Shaft With Drop Box, 18.75 InchBRACE
28.37 inch Shaft With Drop Box, 18.75 Inch -
68M0069201 BRACE
28.37 Inch Shaft Without Drop BoxBRACE
28.37 Inch Shaft Without Drop Box -
710-35047 SCREW, (.375-16 x 1.250) Stainless SteelSCREW, (.375-16 x 1.250) Stainless Steel
-
812-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
911-82670912 NUT, (.375-16) Stainless SteelNUT, (.375-16) Stainless Steel
-
108M0068904 BRACEBRACE
-
1110-8M0068824 SCREW, (M12 x 1.75)SCREW, (M12 x 1.75)
-
1232-8M0068899 HOSE, 50.8 x 711.2mm
18.75 Inch Shaft with Drop BoxHOSE, 50.8 x 711.2mm
18.75 Inch Shaft with Drop Box -
1232-8M0068971 HOSE, 50.8 x 558.8mm
18.75 Inch Shaft Without Drop Box, 28.37 InchHOSE, 50.8 x 558.8mm
18.75 Inch Shaft Without Drop Box, 28.37 Inch -
1354-8M0068822 CLAMP, HOSE, 46-70mmCLAMP, HOSE, 46-70mm
