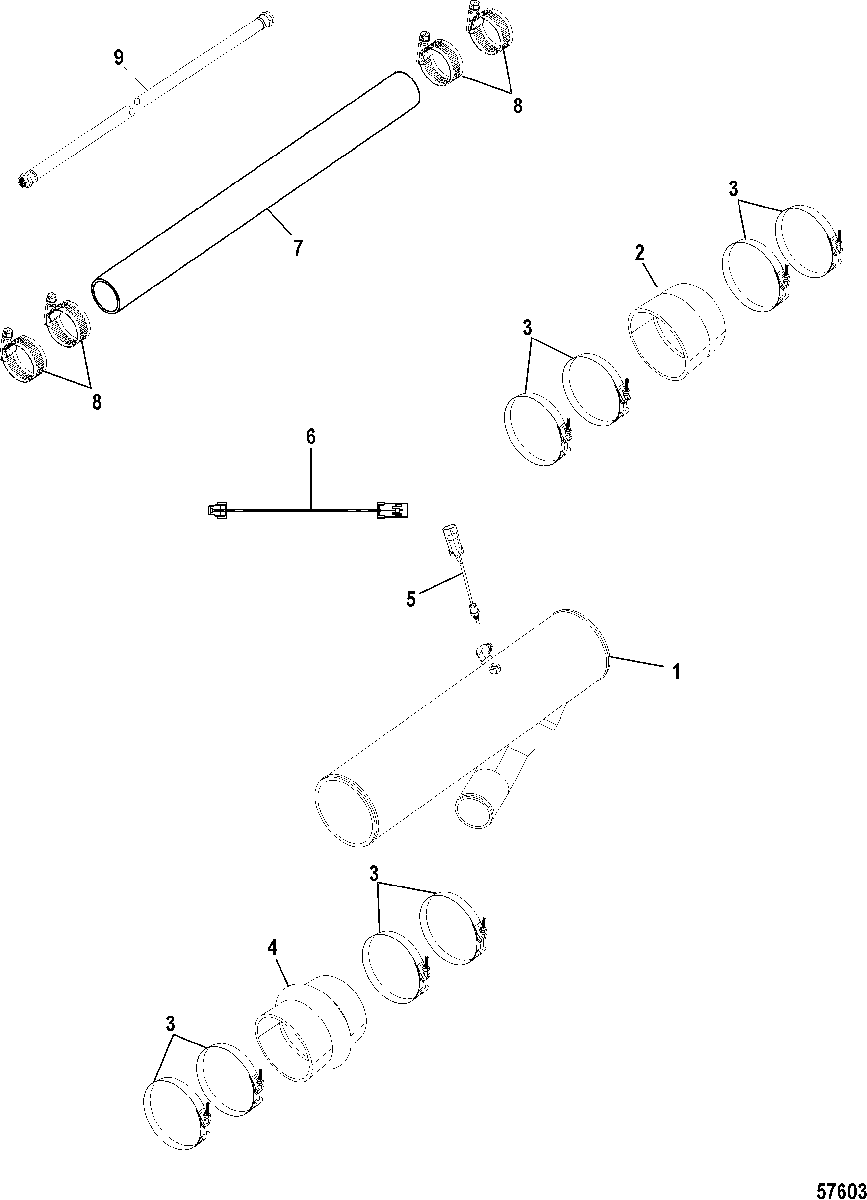

Exhaust Tube, QSC, Design-II, Port & Stbd, 6 Inch для Mercruiser - ZEUS 3000 0M968957 THRU 0M968982
-
№АртикулНазвание
-
-8M0087905 EXHAUST TUBE KITEXHAUST TUBE KIT
-
1NSS NOT SOLD SEPARATE, EXHAUST TUBENOT SOLD SEPARATE, EXHAUST TUBE
-
232-8M0072141 HOSE, Exhaust, 165.1 x 165.1mmHOSE, Exhaust, 165.1 x 165.1mm
-
354-8M0068909 CLAMP, 160-168mmCLAMP, 160-168mm
-
432-8M0072140 HOSE, Exhaust, 152.4 x 152.4mmHOSE, Exhaust, 152.4 x 152.4mm
-
58M0039116 SENSOR, TemperatureSENSOR, Temperature
-
684-8M0068874 HARNESS, Exhaust TemperatureHARNESS, Exhaust Temperature
-
732-8M0068895 HOSE, 38.1 x 1041mmHOSE, 38.1 x 1041mm
-
854-8M0068823 CLAMP, HOSE, 27-51mmCLAMP, HOSE, 27-51mm
-
932-8M0079382 HOSEHOSE
Все узлы модели:
- Cooling System(Cold Water Cooler)
- Cooling System(Single Cooler)
- Cooling System(XC Cooler)
- Driveshaft, QSB, QSC
- Driveshaft, QSM
- Elbow, POD Exhaust, With Scavenging Hose Bib
- Elbow, POD Exhaust, Without Scavenging Hose Bib
- Electrical
- Exhaust Tube, QSB 5.9
- Exhaust Tube, QSB 6.7, Design-I, 0-Degree Offset Bib
- Exhaust Tube, QSB 6.7, Design-II, 19-Degree Offset Bib
- Exhaust Tube, QSC, Design-I, 5 Inch
- Exhaust Tube, QSC, Design-II, Center, 6 Inch
- • Exhaust Tube, QSC, Design-II, Port & Stbd, 6 Inch
- Exhaust Tube, QSM
- Gear Housing
- Harnesses
- Hydraulic Filter Assembly, High Pressure
- Hydraulic Pump, Primary
- Hydraulic System, Port
- Hydraulic System, Starboard
- Lube Bottle
- Midsection, Lower
- Midsection, Upper
- Propellers, H-Series
- Propellers, M-Series
- Propellers, Z-Series
- Riser, Exhaust, QSB 5.9
- Riser, Exhaust, QSB 6.7
- Riser, Exhaust, QSC, Center, Design-II Stamped 8M6002616
- Riser, Exhaust, QSC, Port & Stbd, Design-I Stamped 8M0068886
- Riser, Exhaust, QSC, Port & Stbd,Design-II Stamped 8M6002617
- Riser, Exhaust, QSM
- Service/Support Material
- Shaft Guard, Engine
- Shaft Guard, POD, QSB, QSC
- Shaft Guard, POD, QSM
- Shroud Assembly
- Steering System, Actuator
- Steering System, Lower King Pin Adaptor (14mm Fasteners)
- Tools
- Tools(Continued)
- Transmission Oil Lines, No Drop Box
- Transmission Oil Lines, With Drop Box
- Transmission Oil Lines, With Drop Box Cold Water Cooler
- Transmissions
- Trim Components
- Zeus Service Component Replacement Matrix
- Zeus Service Model Replacement Chart
