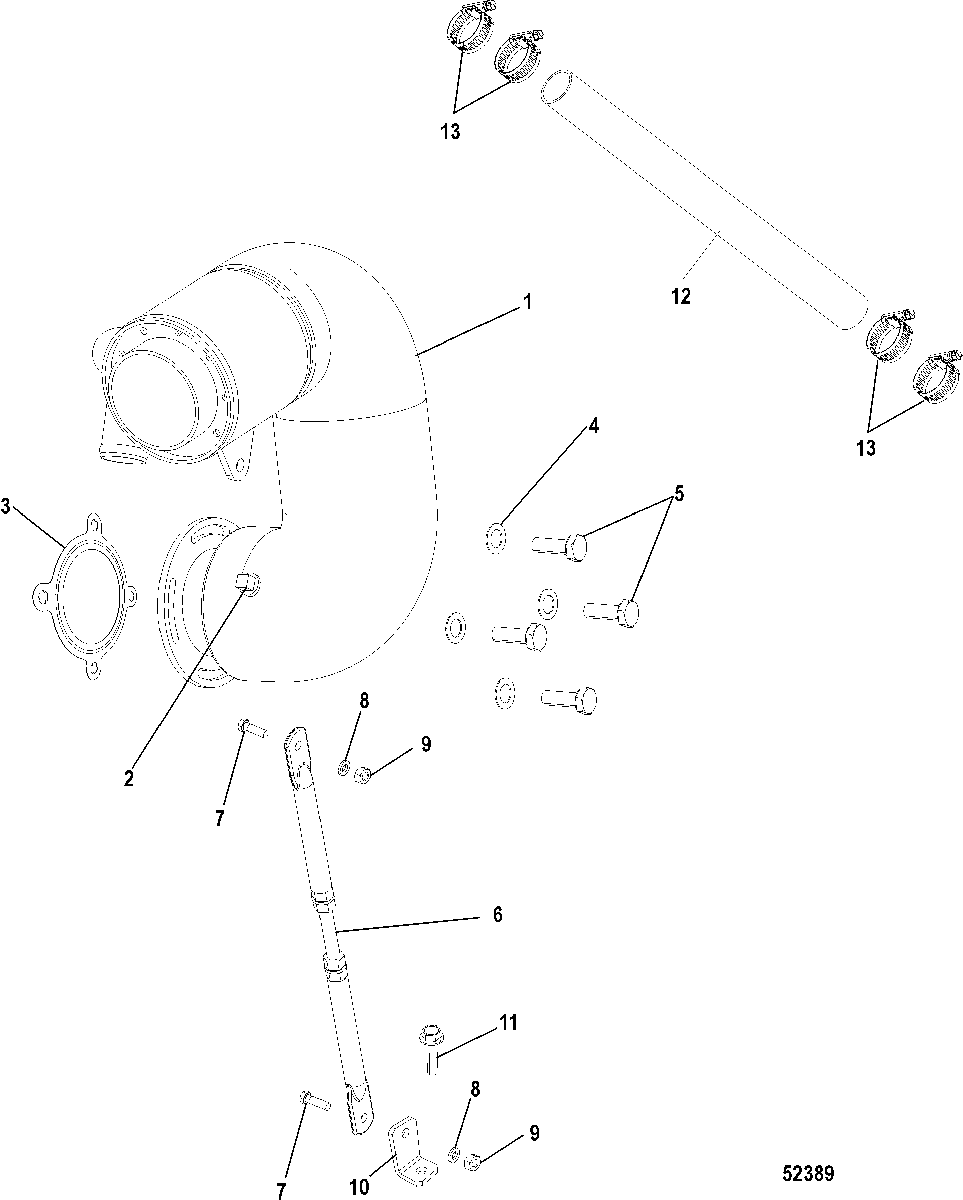

Riser, Exhaust, QSB 5.9 для Mercruiser - ZEUS 3000 0M968957 THRU 0M968982
-
№АртикулНазвание
-
-8M0077217 RISER KIT, Exhaust Elbow
28.37 inch Shaft With Drop Box, 18.75 With and Without Drop BoxRISER KIT, Exhaust Elbow
28.37 inch Shaft With Drop Box, 18.75 With and Without Drop Box -
-8M0077219 RISER KIT, Exhaust Elbow
28.37 inch Shaft, Without Drop BoxRISER KIT, Exhaust Elbow
28.37 inch Shaft, Without Drop Box -
1NSS NOT SOLD SEPARATE, RISERNOT SOLD SEPARATE, RISER
-
2NSS NOT SOLD SEPARATE, FITTINGNOT SOLD SEPARATE, FITTING
-
327-8M0068859 GASKETGASKET
-
410-853219 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
512-8M0068831 WASHERWASHER
-
68M0068856 BRACEBRACE
-
710-35047 SCREW, (.375-16 x 1.250) Stainless SteelSCREW, (.375-16 x 1.250) Stainless Steel
-
812-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
911-82670912 NUT, (.375-16) Stainless SteelNUT, (.375-16) Stainless Steel
-
108M0068904 BRACEBRACE
-
1110-8M0068824 SCREW, (M12 x 1.75)SCREW, (M12 x 1.75)
-
1232-8M0068894 HOSE, 38.1 x 702.8mm
28.37 inch Shaft, Without Drop BoxHOSE, 38.1 x 702.8mm
28.37 inch Shaft, Without Drop Box -
1232-8M0068896 HOSE, 38.1 x 660.4mm
28.37 inch Shaft, With Drop Box, 18.75 inch ShaftHOSE, 38.1 x 660.4mm
28.37 inch Shaft, With Drop Box, 18.75 inch Shaft -
1354-8M0068823 CLAMP, HOSE, 27-51mmCLAMP, HOSE, 27-51mm
