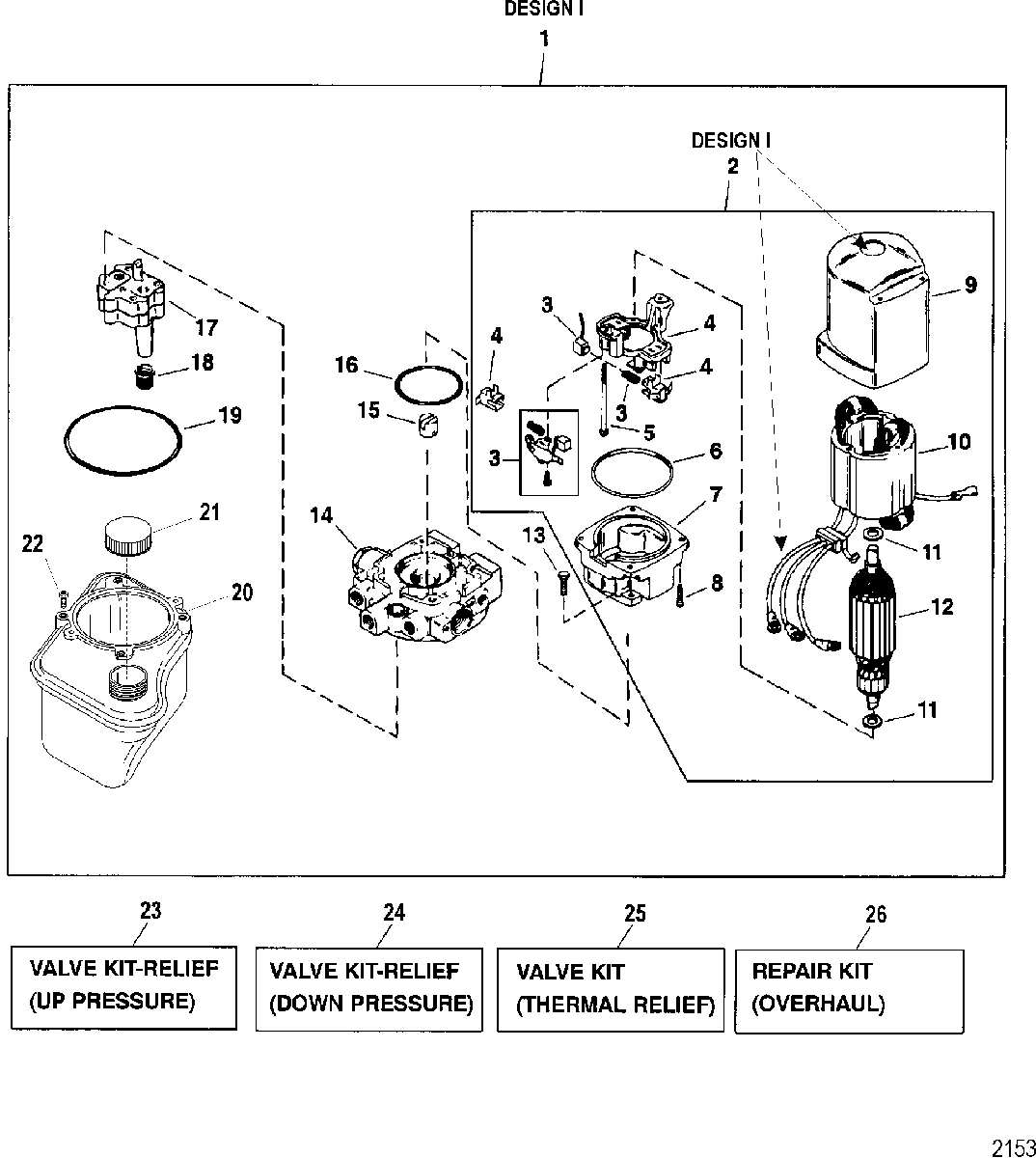

Pump/Motor(Top Mount Reservoir) (Design I - 14336A20) для Mercruiser - INTEGRATED TRANSOM ALL THRU 0M052767
-
№АртикулНазвание
-
1865380A13 PUMP/MOTOR ASSEMBLY
(Top Mounted Reservoir) (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)PUMP/MOTOR ASSEMBLY
(Top Mounted Reservoir) (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line) -
2891736T MOTOR ASSEMBLY, Complete
(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line)MOTOR ASSEMBLY, Complete
(Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line) -
3891736T BRUSH KITBRUSH KIT
-
4891736T HOLDER KIT, BrushHOLDER KIT, Brush
-
5891736T SCREWSCREW
-
6891736T O-RINGO-RING
-
7891736T END CAP ASSEMBLYEND CAP ASSEMBLY
-
8891736T SCREWSCREW
-
9891736T COVER ASSEMBLY, With BearingCOVER ASSEMBLY, With Bearing
-
10891736T FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
11891736T WASHER, ThrustWASHER, Thrust
-
12891736T ARMATUREARMATURE
-
1310-823444 SCREWSCREW
-
14808728T ADAPTER ASSEMBLYADAPTER ASSEMBLY
-
15803852 COUPLINGCOUPLING
-
1625-89498 O-RING, Motor EndO-RING, Motor End
-
1718529 PUMP ASSEMBLY, Includes ScrewsPUMP ASSEMBLY, Includes Screws
-
1835-89496 FILTERFILTER
-
1925-17645 O-RING, Reservoir EndO-RING, Reservoir End
-
20883166A2 RESERVOIR KIT, With Filters And O-Ring
(Ref 18 And Ref 19)RESERVOIR KIT, With Filters And O-Ring
(Ref 18 And Ref 19) -
2136-865448A01 CAP, StandardCAP, Standard
-
2136-865448A01 CAP, Oil Reservoir, Rough Water ApplicationCAP, Oil Reservoir, Rough Water Application
-
2210-883167 SCREW, (#8-32)SCREW, (#8-32)
-
23812498A1 VALVE KIT, Relief, Up PressureVALVE KIT, Relief, Up Pressure
-
24812499A1 VALVE KIT, Relief, Down PressureVALVE KIT, Relief, Down Pressure
-
2595353A1 VALVE KIT, Relief, ThermalVALVE KIT, Relief, Thermal
-
2618545A1 REPAIR KITREPAIR KIT
