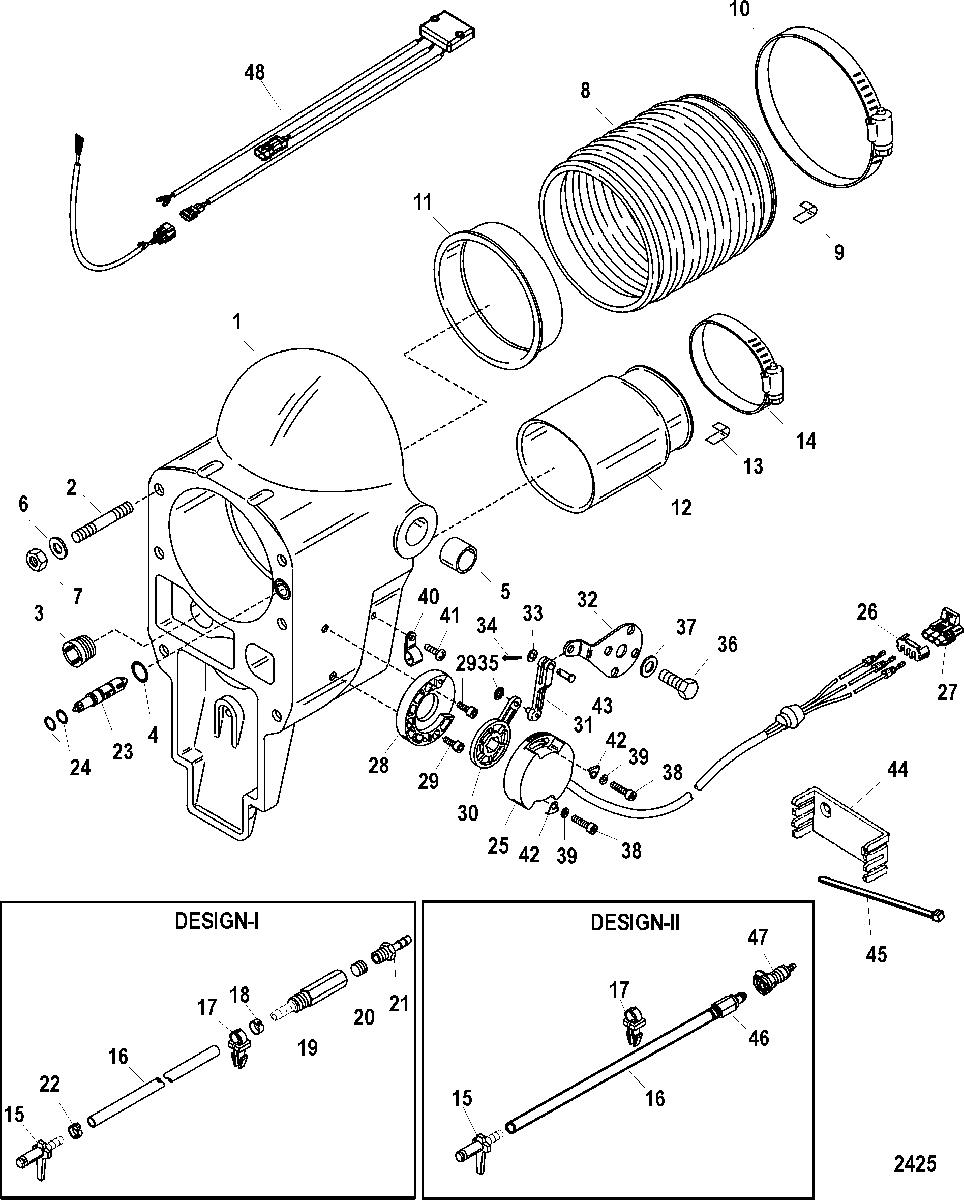

Bell Housing(Integrated And Hi Performance Transom) для Mercruiser - INTEGRATED TRANSOM ALL THRU 0M052767
-
№АртикулНазвание
-
141646A11 BELL HOUSING ASSEMBLYBELL HOUSING ASSEMBLY
-
216-59579 STUD, (.437-14/.437-20 x 2.812)STUD, (.437-14/.437-20 x 2.812)
-
341674T INSERTINSERT
-
425-62705 O-RINGO-RING
-
523-847637 BUSHINGBUSHING
-
612-35935 WASHER, (.435 x .875 x .105) Stainless SteelWASHER, (.435 x .875 x .105) Stainless Steel
-
711-859116 NUT, (.437-20)NUT, (.437-20)
-
88M0062406 BELLOWS ASSEMBLYBELLOWS ASSEMBLY
-
954-8M0126505 CLIP, GroundingCLIP, Grounding
-
1054-815504372 CLAMP, Worm GearCLAMP, Worm Gear
-
11862209 SLEEVESLEEVE
-
1278458A1 TUBETUBE
-
1354-8M0126505 CLIP, GroundingCLIP, Grounding
-
1454-815504348 CLAMP, Worm GearCLAMP, Worm Gear
-
15815303T ADAPTORADAPTOR
-
1632-5495025 TUBING, (25.00 Feet Bulk), SpeedoTUBING, (25.00 Feet Bulk), Speedo
-
1754-12994 CLIPCLIP
-
18865261 CLAMPCLAMP
-
19865261 FITTING
(Design I) (Hi Performance Transom) (Integrated Transom) SN# 0M815601 & BelowFITTING
(Design I) (Hi Performance Transom) (Integrated Transom) SN# 0M815601 & Below -
2022-878089 PLUG, Pipe (.0625-27)
(Design I) (Hi Performance Transom) (Integrated Transom) SN# 0M815601 & BelowPLUG, Pipe (.0625-27)
(Design I) (Hi Performance Transom) (Integrated Transom) SN# 0M815601 & Below -
2122-814382 CONNECTOR
(Design I) (Hi Performance Transom) (Integrated Transom) SN# 0M815601 & BelowCONNECTOR
(Design I) (Hi Performance Transom) (Integrated Transom) SN# 0M815601 & Below -
2254-818557 CLAMPCLAMP
-
2318920A1 VALVE ASSEMBLYVALVE ASSEMBLY
-
2425-48171 O-RING, (.364. x .070)O-RING, (.364. x .070)
-
25863187A2 SENDER ASSEMBLY, Trim
(For Use With Digital Or Analog)SENDER ASSEMBLY, Trim
(For Use With Digital Or Analog) -
26831957 RETAINERRETAINER
-
278307973 CONNECTORCONNECTOR
-
28840846 HOUSING, Actuator Arm SupportHOUSING, Actuator Arm Support
-
2910-90188 SCREW, (#10-24 x .500) Stainless SteelSCREW, (#10-24 x .500) Stainless Steel
-
30840845 ARM, ActuatorARM, Actuator
-
31840843 LINK RODLINK ROD
-
32840844 BRACKETBRACKET
-
3312-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
3418-210711 COTTER PINCOTTER PIN
-
3511-65110 NUTNUT
-
3610-99204 SCREW, (.437-14 x 1.00) Stainless SteelSCREW, (.437-14 x 1.00) Stainless Steel
-
3712-842922 WASHER, (.450 x .750 x .060) Stainless SteelWASHER, (.450 x .750 x .060) Stainless Steel
-
3810-37978 SCREW, (#10-32 x .750) Stainless SteelSCREW, (#10-32 x .750) Stainless Steel
-
3913-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
4054-26550 CLAMPCLAMP
-
4110-8M0113176 SCREW, (#10-24 x .38)SCREW, (#10-24 x .38)
-
4257008 RETAINERRETAINER
-
4317-67297 PIN, ClevisPIN, Clevis
-
4479146 RETAINERRETAINER
-
4554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
46865391 FITTING ASSEMBLY, Speedometer, Male Quick Connect
(Design II) (Integrated Transom) SN# 0M815602 & UpFITTING ASSEMBLY, Speedometer, Male Quick Connect
(Design II) (Integrated Transom) SN# 0M815602 & Up -
4722-865417 FITTING, Female Quick Connect
(Design II) (Integrated Transom) SN# 0M815602 & UpFITTING, Female Quick Connect
(Design II) (Integrated Transom) SN# 0M815602 & Up -
48884359T1 MODULE ASSEMBLY, Trim SenderMODULE ASSEMBLY, Trim Sender
