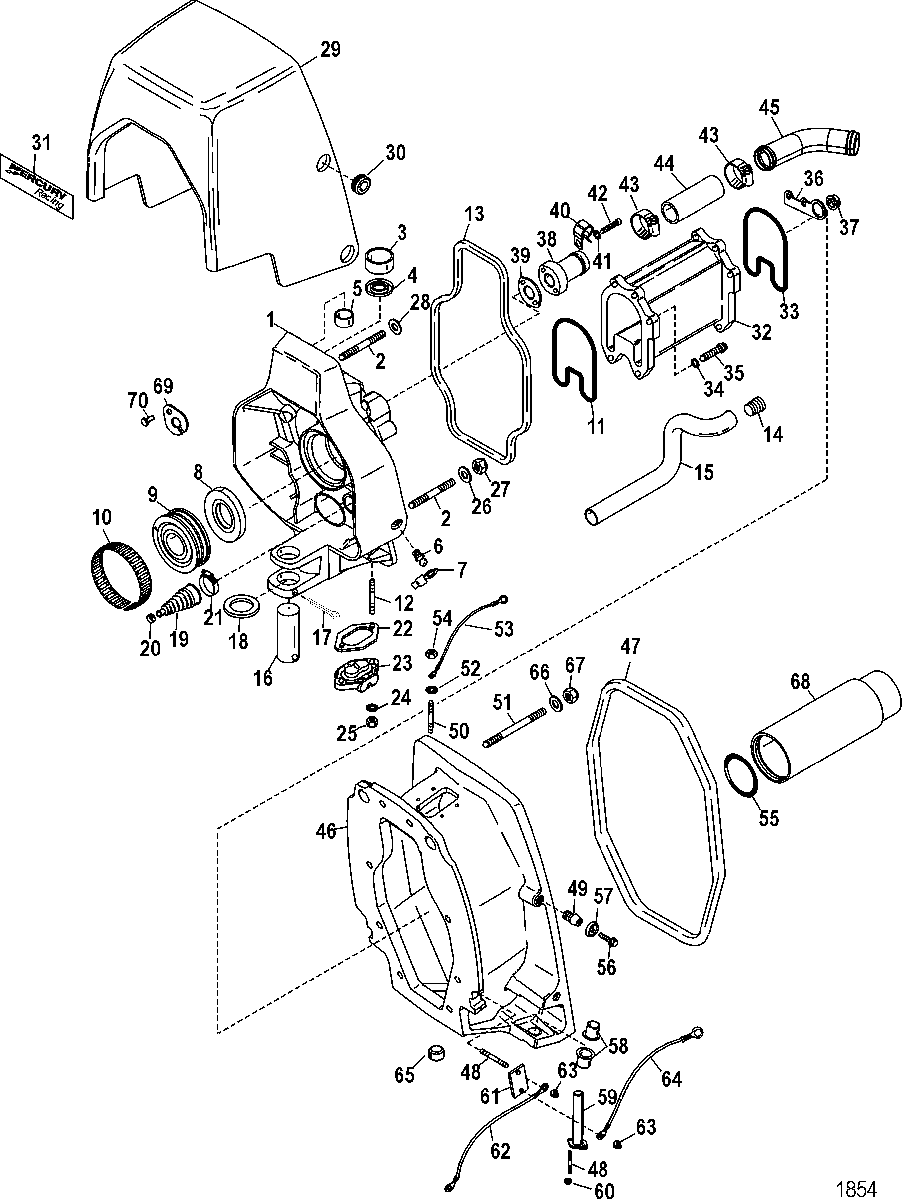

Gimbal Housing(Integrated Transom) для Mercruiser - INTEGRATED TRANSOM ALL THRU 0M052767
-
№АртикулНазвание
-
18M0062528 GIMBAL HOUSING ASSEMBLYGIMBAL HOUSING ASSEMBLY
-
216-57984 STUD, (.437-14/.437-20 x 2.380)STUD, (.437-14/.437-20 x 2.380)
-
323-983571 BUSHINGBUSHING
-
426-8M2005029 SEAL, OilSEAL, Oil
-
523-98356 BUSHINGBUSHING
-
622-74036 FITTING, GreaseFITTING, Grease
-
719-77633Q LUBRICAPLUBRICAP
-
826-88416 SEAL, OilSEAL, Oil
-
930-879194A01 BEARING ASSEMBLYBEARING ASSEMBLY
-
1061075 TOLERANCE RINGTOLERANCE RING
-
1141802 SEAL, RubberSEAL, Rubber
-
1216-56766 STUD, (.250-20/.250-28 x 1.380)STUD, (.250-20/.250-28 x 1.380)
-
1343713 SEALSEAL
-
1441674T INSERTINSERT
-
1532-8M0090859 HOSEHOSE
-
1617-8M0073409 SWIVEL PIN, LowerSWIVEL PIN, Lower
-
1718-54929 COTTER PINCOTTER PIN
-
1812-32518 WASHERWASHER
-
1974639A2 BELLOWS ASSEMBLY, Shift CableBELLOWS ASSEMBLY, Shift Cable
-
2054-8M0090424 CLAMPCLAMP
-
2154-815504320 CLAMP, Worm GearCLAMP, Worm Gear
-
2227-988231 GASKETGASKET
-
2398825A13 COVER KITCOVER KIT
-
2413-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
-
2511-8267119 NUT, (.250-28)NUT, (.250-28)
-
2612-35935 WASHER, (.435 x .875 x .105) Stainless SteelWASHER, (.435 x .875 x .105) Stainless Steel
-
2711-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2812-840848 WASHERWASHER
-
298M0056176 COWL ASSEMBLY, TransomCOWL ASSEMBLY, Transom
-
3025-840840 GROMMETGROMMET
-
3137-840359 DECAL, Mercury RacingDECAL, Mercury Racing
-
32840693A2 PLATE KIT, Exhaust ExtensionPLATE KIT, Exhaust Extension
-
3341802 SEAL, RubberSEAL, Rubber
-
3413-41471 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3510-8M0113174 SCREW, (.375-16 x 1.25)SCREW, (.375-16 x 1.25)
-
36840842 BRACKETBRACKET
-
3723-840847 BUSHING, SnapBUSHING, Snap
-
3822-8M0080097 CONNECTORCONNECTOR
-
3927-8M0109475 GASKETGASKET
-
4054-642351 J CLIPJ CLIP
-
4113-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
-
4210-816742 SCREW, (.250-20 x 1.250)SCREW, (.250-20 x 1.250)
-
4354-180766 CLAMP, Worm GearCLAMP, Worm Gear
-
4432-8M0062665 HOSE, (48.00 Inches Bulk) (Cut To 5.00 Inch Length)HOSE, (48.00 Inches Bulk) (Cut To 5.00 Inch Length)
-
4522-840831 TUBE, (60 Degree)TUBE, (60 Degree)
-
46840496A3 BOX ASSEMBLY, TransomBOX ASSEMBLY, Transom
-
47437131 SEALSEAL
-
4816-846345 STUD, (#10-32 x .750)STUD, (#10-32 x .750)
-
4916-8M0034447 STUDSTUD
-
5016-728091 STUD, (.250-20/.250-28 x 1.620)STUD, (.250-20/.250-28 x 1.620)
-
5016-843125 STUD, (.250-20 x 2.02)
(Bonding Strap)STUD, (.250-20 x 2.02)
(Bonding Strap) -
5116-866562 STUD, (.437-20 x 4.750) Stainless SteelSTUD, (.437-20 x 4.750) Stainless Steel
-
5116-866563 STUD, (.437-20 x 4.250) Stainless SteelSTUD, (.437-20 x 4.250) Stainless Steel
-
5213-93702 WASHER, (.250 External Star)
(Bonding Strap Stud)WASHER, (.250 External Star)
(Bonding Strap Stud) -
5388238A20 CABLE ASSEMBLY, Ground, Ground Strap (6.750 Inches)CABLE ASSEMBLY, Ground, Ground Strap (6.750 Inches)
-
5411-8267098 NUT, (.250-20) Stainless Steel
(Bonding Strap Stud)NUT, (.250-20) Stainless Steel
(Bonding Strap Stud) -
5525-94926 O-RING, (2.489 x .070)O-RING, (2.489 x .070)
-
5610-901921 SCREW, (.250-20 x .750) Stainless Steel With Nylon PatchSCREW, (.250-20 x .750) Stainless Steel With Nylon Patch
-
5712-840841 WASHERWASHER
-
5823-8159501 BUSHINGBUSHING
-
59840739 PINPIN
-
6011-8267096 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
61840801 PLATEPLATE
-
6288238A7 CABLE ASSEMBLY, Ground Strap (3.160 Inches)CABLE ASSEMBLY, Ground Strap (3.160 Inches)
-
6311-8267096 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
6488238A20 CABLE ASSEMBLY, Ground, Ground Strap (6.750 Inches)CABLE ASSEMBLY, Ground, Ground Strap (6.750 Inches)
-
6522-35052 PLUG, Pipe (.250-18 x .375)PLUG, Pipe (.250-18 x .375)
-
6612-34567 WASHERWASHER
-
6711-82670815 NUT, (.437-20)NUT, (.437-20)
-
68840689T TUBE, ExtensionTUBE, Extension
-
6954-12078 CLAMPCLAMP
-
7010-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
