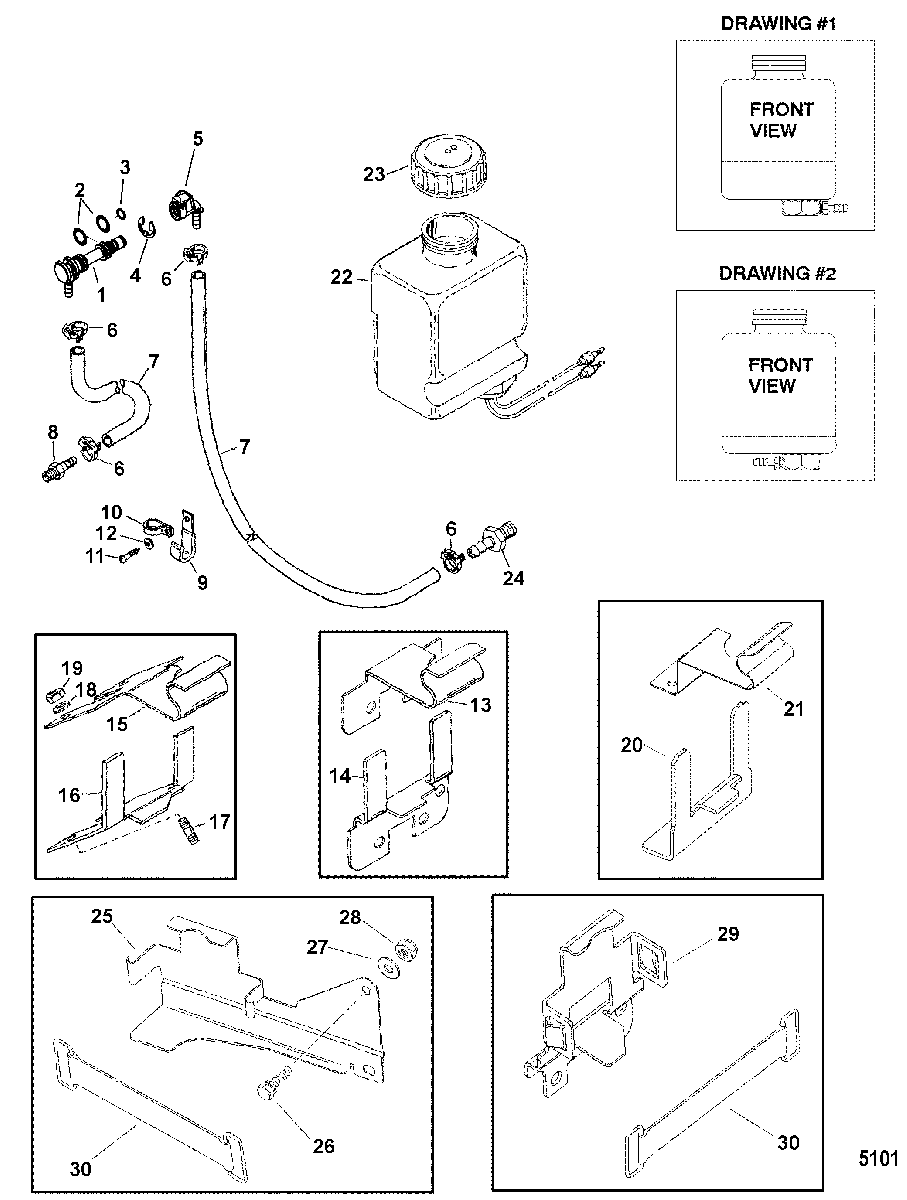

Oil Reservoir Components для Mercruiser - INTEGRATED TRANSOM ALL THRU 0M052767
-
№АртикулНазвание
-
122-861150T02 FITTING ASSEMBLY, Bulk HeadFITTING ASSEMBLY, Bulk Head
-
225-201951 O-RING, (.487 x .103)O-RING, (.487 x .103)
-
325-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
453-87843 E RINGE RING
-
522-861163 QUICK CONNECTOR, (90 Degree)QUICK CONNECTOR, (90 Degree)
-
654-415825 CLAMP, NylonCLAMP, Nylon
-
732-8M0040618 HOSE, (54.00 Inches Bulk)
(Cut To 9.50 Inch Length And 36.00 Inch Length)HOSE, (54.00 Inches Bulk)
(Cut To 9.50 Inch Length And 36.00 Inch Length) -
822-16739 CONNECTORCONNECTOR
-
954-642351 J CLIPJ CLIP
-
1054-23567 CLIPCLIP
-
1110-60605 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
128M0084613 C WASHERC WASHER
-
13860065A1 BRACKET, Clip (3.0L/3.6L4.2L Diesel 7.4L/7.4LX/454/502)
(See Oil Reservoir Components For Illustrations)BRACKET, Clip (3.0L/3.6L4.2L Diesel 7.4L/7.4LX/454/502)
(See Oil Reservoir Components For Illustrations) -
14860065A1 BRACKET KIT (3.0L/3.6L4.2L Diesel 7.4L/7.4LX/454/502)
(See Oil Reservoir Components For Illustrations)BRACKET KIT (3.0L/3.6L4.2L Diesel 7.4L/7.4LX/454/502)
(See Oil Reservoir Components For Illustrations) -
15806292T1 BRACKET
(See Oil Reservoir Components For Illustrations)BRACKET
(See Oil Reservoir Components For Illustrations) -
16807025T BRACKET
(See Oil Reservoir Components For Illustrations)BRACKET
(See Oil Reservoir Components For Illustrations) -
1716-8M2004610 STUD, (.375-16 x 2.130) (4.3LX/5.7L/5.7LX)
(Carb)STUD, (.375-16 x 2.130) (4.3LX/5.7L/5.7LX)
(Carb) -
1812-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
1911-32219 NUT, (.375-16)NUT, (.375-16)
-
20806649T BRACKET (262 Magnum EFI)
(See Oil Reservoir Components For Illustrations)BRACKET (262 Magnum EFI)
(See Oil Reservoir Components For Illustrations) -
21806650T BRACKET (5.7L/5.7LX/350 Magnum (EFI) 262 Magnum EFI)
(See Oil Reservoir Components For Illustrations)BRACKET (5.7L/5.7LX/350 Magnum (EFI) 262 Magnum EFI)
(See Oil Reservoir Components For Illustrations) -
228M0075708 MONITOR ASSEMBLY, Oil
(Fitting Pointing Toward Right Side) (See Drawing Number One)MONITOR ASSEMBLY, Oil
(Fitting Pointing Toward Right Side) (See Drawing Number One) -
228M0075709 RESERVOIR
(Fitting Pointing Toward Left Side) (See Drawing Number Two)RESERVOIR
(Fitting Pointing Toward Left Side) (See Drawing Number Two) -
2336-8067271 CAP, Drive Lube MonitorCAP, Drive Lube Monitor
-
2422-808624 CONNECTORCONNECTOR
-
25807839T1 BRACKET
(See Oil Reservoir Components For Illustrations) (4.3LX/4.3LXH/262 Magnum EFI 7.4L/454/7.4LX EFI)BRACKET
(See Oil Reservoir Components For Illustrations) (4.3LX/4.3LXH/262 Magnum EFI 7.4L/454/7.4LX EFI) -
2610-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
(4.3LX/4.3LXH/262 Magnum EFI 7.4L/454/7.4LX EFI)SCREW AND LOCKWASHER, (.250-20 x .625)
(4.3LX/4.3LXH/262 Magnum EFI 7.4L/454/7.4LX EFI) -
2712-69057 WASHER, (.281 x .734 x .063)
(4.3LX/4.3LXH/262 Magnum EFI 7.4L/454/7.4LX EFI)WASHER, (.281 x .734 x .063)
(4.3LX/4.3LXH/262 Magnum EFI 7.4L/454/7.4LX EFI) -
2811-8267088 NUT, (.250-20)
(4.3LX/4.3LXH/262 Magnum EFI 7.4L/454/7.4LX EFI)NUT, (.250-20)
(4.3LX/4.3LXH/262 Magnum EFI 7.4L/454/7.4LX EFI) -
NS806054A1 RELOCATION KIT, Oil ReservoirRELOCATION KIT, Oil Reservoir
-
29860065A1 BRACKET KIT
(See Note) (5.7L/5.7LX/350 Magnum) (Carb And EFI) (3.0L/3.6L4.2L Diesel/7.4L/7.4LX/454/502)BRACKET KIT
(See Note) (5.7L/5.7LX/350 Magnum) (Carb And EFI) (3.0L/3.6L4.2L Diesel/7.4L/7.4LX/454/502) -
30808023T STRAP, BracketSTRAP, Bracket
