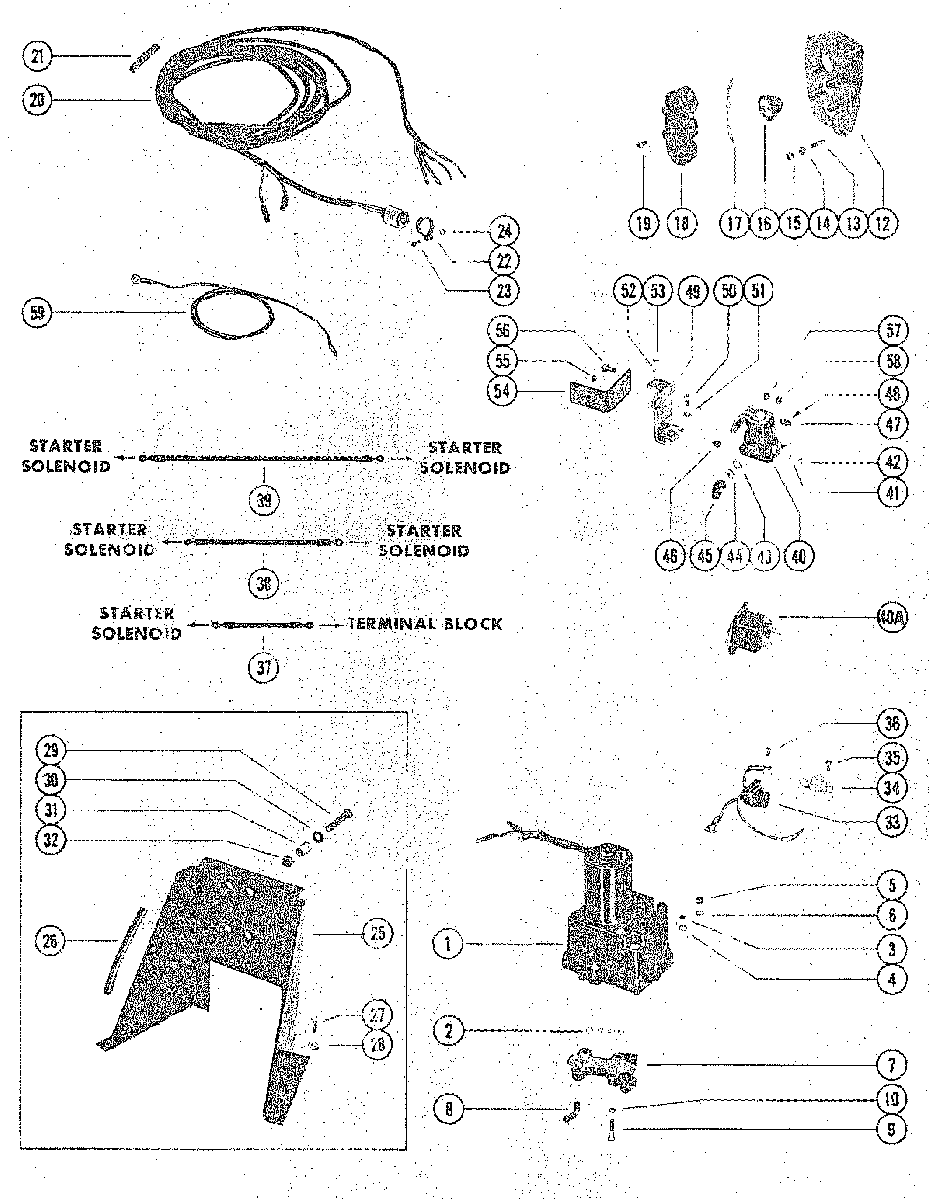

HYDRAULIC PUMP AND TRIM CONTROL PANEL для Mercruiser - II-TR 1973-1976 3377316 THRU 4794899

  • №
    Артикул
    Название
  • 1
    93247A7 HYDRAULIC PUMP ASSEMBLY(SEE G14 FOR BREAKDOWN)
    HYDRAULIC PUMP ASSEMBLY(SEE G14 FOR BREAKDOWN)
  • 2
    25-48171 "O" RING, HYDRAULIC PUMP TO CONTROL VALVE
    "O" RING, HYDRAULIC PUMP TO CONTROL VALVE
  • 3
    10-22028 SCREW, VENT - HYDRAULIC PUMP
    SCREW, VENT - HYDRAULIC PUMP
  • 4
    13-46917 LOCKWASHER, SEALING - VENT SCREW
    LOCKWASHER, SEALING - VENT SCREW
  • 5
    10-79953Q04 SCREW, FILLER - HYDRAULIC PUMP
    SCREW, FILLER - HYDRAULIC PUMP
  • 6
    12-191833 WASHER, SEALING - HYDRUALIC PUMP FILLER SCREW
    WASHER, SEALING - HYDRUALIC PUMP FILLER SCREW
  • 7
    48077A4 CONTROL VALVE ASSEMBLY
    SERIAL 00000000-03786859
    CONTROL VALVE ASSEMBLY
    SERIAL 00000000-03786859
  • 7
    48077T3 COMTROL VALVE ASSEMBLY
    SERIAL 03786860-04644609
    COMTROL VALVE ASSEMBLY
    SERIAL 03786860-04644609
  • 7
    25-48171 "O" RING, HYDRAULIC PUMP TO CONTROL VALVE
    "O" RING, HYDRAULIC PUMP TO CONTROL VALVE
  • 8
    22-52666 ELBOW, CONTROL VALVE
    ELBOW, CONTROL VALVE
  • 9
    10-21091 SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
    SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
  • 10
    13-26992 LOCKWASHER, CONTROL VALVE SCREW
    LOCKWASHER, CONTROL VALVE SCREW
  • 10
    55642A13 CONTROL PANEL ASSEMBLY, COMPLETE
    CONTROL PANEL ASSEMBLY, COMPLETE
  • 12
    2182-7927A8 PANEL ASSEMBLY, CONTROL
    PANEL ASSEMBLY, CONTROL
  • 13
    16-55422 STUD, CONTROL PANEL TO BOAT (2")
    STUD, CONTROL PANEL TO BOAT (2")
  • 14
    12-24676 WASHER, CONTROL PANEL STUD
    WASHER, CONTROL PANEL STUD
  • 15
    11-27164 NUT, CONTROL PANEL STUD
    NUT, CONTROL PANEL STUD
  • 16
    55738A1 SWITCH, PUSH BUTTON - CONTROL PANEL
    SWITCH, PUSH BUTTON - CONTROL PANEL
  • 17
    48078 JUMPER WIRE, PUSH BUTTON SWITCH (RED - 3 1/4")
    JUMPER WIRE, PUSH BUTTON SWITCH (RED - 3 1/4")
  • 17
    53107 JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE - 3")
    JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE - 3")
  • 18
    55641 RETAINER, PUSH BUTTON SWITCH
    RETAINER, PUSH BUTTON SWITCH
  • 19
    10-62568 SCREW, SWITCH RETAINER TO CONTROL PANEL (1/2")
    SCREW, SWITCH RETAINER TO CONTROL PANEL (1/2")
  • 20
    84-87394A20 HARNESS, CONTROL PANEL
    HARNESS, CONTROL PANEL
  • 21
    33865 BINDER, NYLON - CONTROL PANEL HARNESS
    BINDER, NYLON - CONTROL PANEL HARNESS
  • 22
    95814 CLAMP, HARNESS ATTACHING
    CLAMP, HARNESS ATTACHING
  • 23
    10-29227 SCREW, HARNESS ATTACHING CLAMP (1/2")
    SCREW, HARNESS ATTACHING CLAMP (1/2")
  • 24
    11-34388 NUT, HARNESSA ATTACHING CLAMP SCREW
    NUT, HARNESSA ATTACHING CLAMP SCREW
  • 25
    862548A1 BRACKET ASSEMBLY, MOUNTING - HYDRAULIC PUMP (FLOOR MOUNTING)
    BRACKET ASSEMBLY, MOUNTING - HYDRAULIC PUMP (FLOOR MOUNTING)
  • 26
    58491 BUMPER, RUBBER - PUMP MOUNTING BRACKET
    BUMPER, RUBBER - PUMP MOUNTING BRACKET
  • 27
    10-59784 SCREW, PUMP MOUNTING ATTCHING (1")
    SCREW, PUMP MOUNTING ATTCHING (1")
  • 28
    12-29245 WASHER, PUMP MOUNTING BRACKET SCREW
    WASHER, PUMP MOUNTING BRACKET SCREW
  • 29
    10-35386 SCREW, HYDRAULIC PUMP TO MOUNTING BRACKET (1")
    SCREW, HYDRAULIC PUMP TO MOUNTING BRACKET (1")
  • 30
    13-39107 LOCKWASHER, HYDRAULIC PUMP SCREW
    LOCKWASHER, HYDRAULIC PUMP SCREW
  • 31
    23-90523 /SPACER, MOUNTING BRACKET
    /SPACER, MOUNTING BRACKET
  • 32
    11-21908 NUT, HYDRAULIC PUMP SCREW
    NUT, HYDRAULIC PUMP SCREW
  • 33
    45325A1 CONNECTOR AND HARNESS
    SERIAL 00000000-04644609
    CONNECTOR AND HARNESS
    SERIAL 00000000-04644609
  • 33
    84-74023A1 CONNECTOR AND HARNESS
    SERIAL 04644610-09999999
    CONNECTOR AND HARNESS
    SERIAL 04644610-09999999
  • 34
    45559 TERMINAL BLOCK, HYDRAULIC PUMP
    SERIAL 00000000-04644609
    TERMINAL BLOCK, HYDRAULIC PUMP
    SERIAL 00000000-04644609
  • 35
    10-35519 SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
    SERIAL 00000000-04644609
    SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
    SERIAL 00000000-04644609
  • 36
    10-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")
    SERIAL 00000000-04644609
    SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")
    SERIAL 00000000-04644609
  • 37
    55990 JUMPER WIRE, SOLENOID TO TERMINAL BLOCK (GREEN - 4")
    SERIAL 00000000-04644609
    JUMPER WIRE, SOLENOID TO TERMINAL BLOCK (GREEN - 4")
    SERIAL 00000000-04644609
  • 38
    84-79139A2 JUMPER WIRE, SOLENOID TO SOLENOID (RED - 7")
    JUMPER WIRE, SOLENOID TO SOLENOID (RED - 7")
  • 39
    55992 JUMPER WIRE, SOLENOID TO SOLENOID (BLACK - 11 1/2")
    JUMPER WIRE, SOLENOID TO SOLENOID (BLACK - 11 1/2")
  • 40
    25561 STARTER SOLENOID(SERIAL#4644610 AND UP)
    STARTER SOLENOID(SERIAL#4644610 AND UP)
  • 40
    89-853654A1 STARTER SOLENOID(SERIAL#4644609 AND BELOW)
    STARTER SOLENOID(SERIAL#4644609 AND BELOW)
  • 41
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 42
    11-68219 NUT, STARTER SOLENOID TERMINAL (#10)
    NUT, STARTER SOLENOID TERMINAL (#10)
  • 43
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 44
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16"-24)
    SERIAL 00000000-04644609
    NUT, STARTER SOLENOID TERMINAL (5/16"-24)
    SERIAL 00000000-04644609
  • 44
    11-68292 NUT, STARTER SOLENOID TERMINAL (5/16:-18)
    SERIAL 04644610-09999999
    NUT, STARTER SOLENOID TERMINAL (5/16:-18)
    SERIAL 04644610-09999999
  • 45
    46265 BOOT, RUBBER - STARTER SOLENOID TERMINAL
    BOOT, RUBBER - STARTER SOLENOID TERMINAL
  • 46
    49342 BUMBER, STARTER SOLENOID TO MOUNTING BRACKET
    BUMBER, STARTER SOLENOID TO MOUNTING BRACKET
  • 47
    25661T1 BRACKET, STARTER SOLENOID TERMINAL (5/16")
    BRACKET, STARTER SOLENOID TERMINAL (5/16")
  • 48
    10-62568 SCREW, HYDRAULIC PUMP LEAD TO BRACKET (3/8")
    SCREW, HYDRAULIC PUMP LEAD TO BRACKET (3/8")
  • 49
    74407T BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 50
    10-21140 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
    SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
  • 51
    13-26992 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 52
    13-27660 LOCKWASHER, HYDRAULIC PUMP THRU BOLT
    LOCKWASHER, HYDRAULIC PUMP THRU BOLT
  • 53
    11-68219 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
    NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
  • 54
    74406 BRACKET, STARTER SOLENOID TO MOUNTING
    BRACKET, STARTER SOLENOID TO MOUNTING
  • 55
    269011 BUMPER, HYDRAULIC PUMP TO MOUNTING BRACKET
    BUMPER, HYDRAULIC PUMP TO MOUNTING BRACKET
  • 56
    10-34290 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
  • 56
    10-69028 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (3/4")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (3/4")
  • 57
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
  • 58
    11-21825 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 59
    84-79138A1 BATTERY LEAD (NEGATIVE)
    BATTERY LEAD (NEGATIVE)
  • 59
    84-79139A9 BATTERY LEAD (POSITIVE)
    BATTERY LEAD (POSITIVE)
