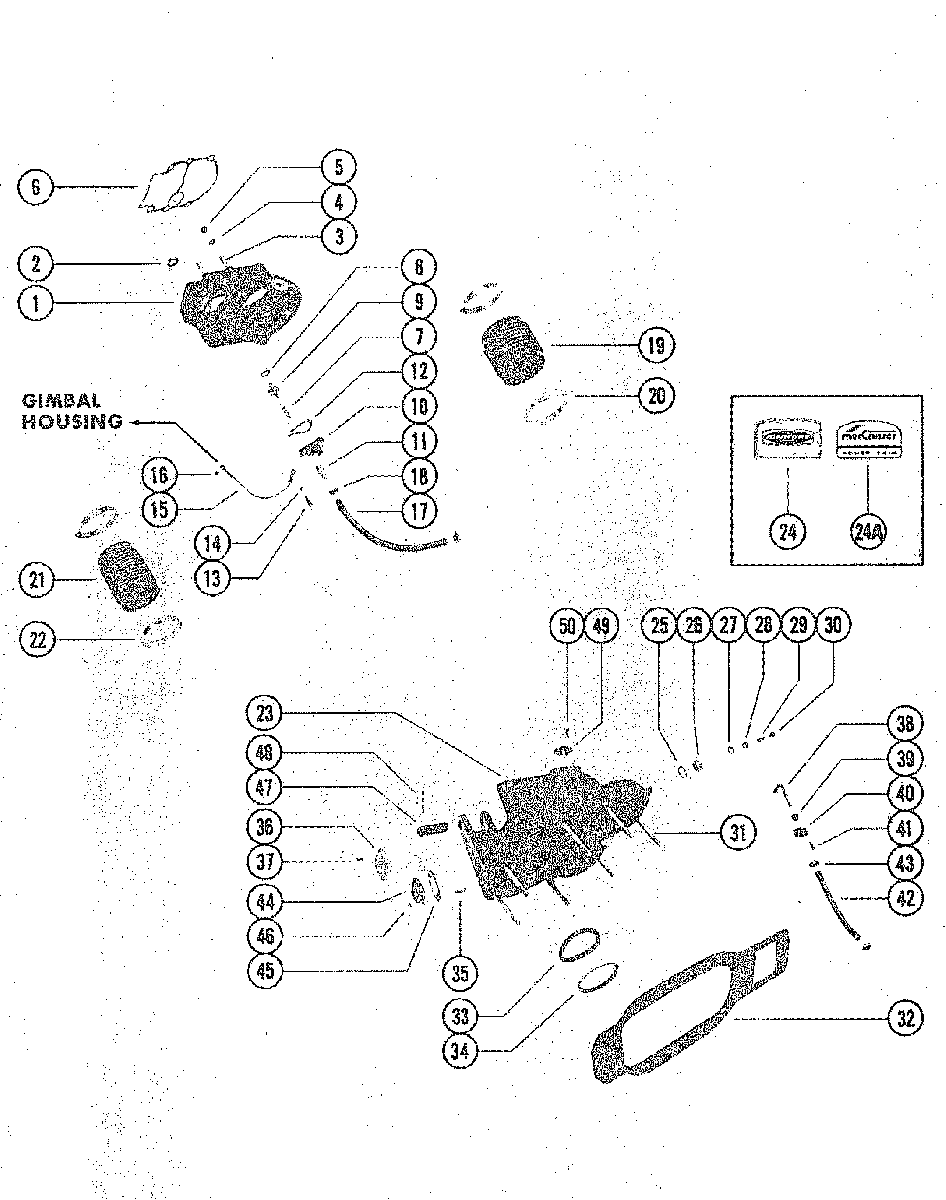

GIMBAL HOUSING AND BELL HOUSING для Mercruiser - II-TR 1973-1976 3377316 THRU 4794899

  • №
    Артикул
    Название
  • 1
    62814A3 BELL HOUSING ASSEMBLY
    BELL HOUSING ASSEMBLY
  • 2
    26-48443 OIL SEAL, BELL HOUSING
    OIL SEAL, BELL HOUSING
  • 3
    16-54011 STUD, BELL HOUSING TO DRIVE SHAFT HOUSING 93 1/4")
    STUD, BELL HOUSING TO DRIVE SHAFT HOUSING 93 1/4")
  • 4
    12-54012 WASHER, BELL HOUSING STUD
    WASHER, BELL HOUSING STUD
  • 5
    11-35000 NUT, BELL HOUSING STUD
    NUT, BELL HOUSING STUD
  • 6
    27-54014Q1 GASKET, BELL HOUSING TO DRIVE SHAFT HOUSING
    GASKET, BELL HOUSING TO DRIVE SHAFT HOUSING
  • 7
    24-48442 SPRING, TENSION - OIL RELEASE CHECK VALVE
    SPRING, TENSION - OIL RELEASE CHECK VALVE
  • 8
    25-48452 QUAD RING, OIL RELEASE CHECK VALVE
    QUAD RING, OIL RELEASE CHECK VALVE
  • 9
    20-48219 CHECK VALVE, OIL RELEASE
    CHECK VALVE, OIL RELEASE
  • 10
    54170A1 COVER ASSEMBLY, CHECK VALVVE GUIDE
    COVER ASSEMBLY, CHECK VALVVE GUIDE
  • 11
    22-34982 CONNECTOR, CHECK VALVE GUIDE COVER
    CONNECTOR, CHECK VALVE GUIDE COVER
  • 12
    27-540211 GASKET, CHECK VALVE GUIDE COVER
    GASKET, CHECK VALVE GUIDE COVER
  • 13
    10-36137 SCREW, CHECK VALVE GUIDE COVER TO BELL HOUSING (1")
    SCREW, CHECK VALVE GUIDE COVER TO BELL HOUSING (1")
  • 14
    13-26992 LOCKWASHER, CHECK VALVE GUIDE COVER SCREW
    LOCKWASHER, CHECK VALVE GUIDE COVER SCREW
  • 15
    57292 JUMPER CABLE, GIMBAL HOUSING TO CHECK VALVE GUIDE COVER
    JUMPER CABLE, GIMBAL HOUSING TO CHECK VALVE GUIDE COVER
  • 16
    10-47225 SCREW, JUMPER CABLE
    SCREW, JUMPER CABLE
  • 17
    32-34423 HOSE, OIL - BELL HOUSING TO GIMBAL HOUSING (12 5/8")
    HOSE, OIL - BELL HOUSING TO GIMBAL HOUSING (12 5/8")
  • 18
    54-815504104 CLAMP, HOSE TO BELL HOUSING AND GIMBAL HOUSING
    CLAMP, HOSE TO BELL HOUSING AND GIMBAL HOUSING
  • 19
    60932A4 BELLOWS ASSEMBLY, UNIVERSAL JOINT
    BELLOWS ASSEMBLY, UNIVERSAL JOINT
  • 20
    54-815504372 CLAMP, BELLOWS TO GIMBAL HOUSING AND BELL HOUSING
    CLAMP, BELLOWS TO GIMBAL HOUSING AND BELL HOUSING
  • 21
    54406A1 BELLOWS, EXHUAST
    BELLOWS, EXHUAST
  • 22
    54-815504360 CLAMP, EXHAUST BELLOWS ATTACHING
    CLAMP, EXHAUST BELLOWS ATTACHING
  • 23
    62720A4 GIMBAL HOUSING ASSEMBLY
    GIMBAL HOUSING ASSEMBLY
  • 24
    37-1368211 EMBLEM, GIMBAL HOUSING
    SEE PHOTO FOR CORRECT REPLACEMENT
    EMBLEM, GIMBAL HOUSING
    SEE PHOTO FOR CORRECT REPLACEMENT
  • 24
    37-87018 DECAL, GIMBAL HOUSING
    SEE PHOTO FOR CORRECT REPLACEMENT
    DECAL, GIMBAL HOUSING
    SEE PHOTO FOR CORRECT REPLACEMENT
  • 25
    26-31783 OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
    OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
  • 26
    31-54043 BEARING, ROLLER - GIMBAL HOUSING (LOWER)
    BEARING, ROLLER - GIMBAL HOUSING (LOWER)
  • 27
    26-54925 OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING
    OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING
  • 28
    31-21145 BEARING,ROLLER - GIMBAL HOUSING (UPPER)
    BEARING,ROLLER - GIMBAL HOUSING (UPPER)
  • 29
    22-69059 FITTING, GREASE - GIMBAL HOUSING
    FITTING, GREASE - GIMBAL HOUSING
  • 30
    19-77633Q LUBRICAP,GIMBAL HOUSING GREASE FITTING
    LUBRICAP,GIMBAL HOUSING GREASE FITTING
  • 31
    16-57988 STUD,GIMBAL HOUSING TO TRANSOM PLATE (5 3/8")
    STUD,GIMBAL HOUSING TO TRANSOM PLATE (5 3/8")
  • 32
    27-54395T GASKET, GIMBAL HOUSING TO TRANSOM
    GASKET, GIMBAL HOUSING TO TRANSOM
  • 33
    25-54521 "O" RING, GIMBAL HOUSING
    "O" RING, GIMBAL HOUSING
  • 34
    54068F1 PILOT RING, GIMBAL HOUSING
    PILOT RING, GIMBAL HOUSING
  • 35
    16-56766 STUD, GIMBAL HOUSING TO HYDRAULIC CONNECTOR (1 3/8")
    STUD, GIMBAL HOUSING TO HYDRAULIC CONNECTOR (1 3/8")
  • 36
    34762A1 PLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSING
    PLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSING
  • 37
    10-34763 SCREW, INHIBITOR PLATE TO GIMBAL HOUSING (3/4")
    SCREW, INHIBITOR PLATE TO GIMBAL HOUSING (3/4")
  • 38
    32-54392 TUBE, OIL - GIMBAL HOUSING
    TUBE, OIL - GIMBAL HOUSING
  • 39
    23-54421 BUSHING, SEALING - OIL TUBE
    BUSHING, SEALING - OIL TUBE
  • 40
    54422A1 COVER, SEALING BUSHING RETAINING
    COVER, SEALING BUSHING RETAINING
  • 41
    10-28636 SCREW, COVER TO GIMBAL HOUSING (3/4")
    SCREW, COVER TO GIMBAL HOUSING (3/4")
  • 42
    32-34423 HOSE, OIL - GIMBAL HOUSING TO TRANSOM PLATE (7 3/4")
    HOSE, OIL - GIMBAL HOUSING TO TRANSOM PLATE (7 3/4")
  • 43
    54-815504104 CLAMP, OIL HOSE TO GIMBAL HOUSING AND TRANSOM PLATE
    CLAMP, OIL HOSE TO GIMBAL HOUSING AND TRANSOM PLATE
  • 44
    47347 CONNECTOR, HYDRAULIC - GIMBAL HOUSING
    CONNECTOR, HYDRAULIC - GIMBAL HOUSING
  • 45
    27-476441 GASKET, HYDRALIC - GIMBAL HOUSING
    GASKET, HYDRALIC - GIMBAL HOUSING
  • 46
    11-35888 NUT, HYDRAULIC CONNECTOR STUD
    NUT, HYDRAULIC CONNECTOR STUD
  • 47
    17-54052T1 PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
    PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
  • 48
    18-54929 COTTER PIN, RETAINING - LOWER SWIVEL PIN
    COTTER PIN, RETAINING - LOWER SWIVEL PIN
  • 49
    57322T COVER, RETAINING - GIMBAL HOUSING
    COVER, RETAINING - GIMBAL HOUSING
  • 50
    10-28635 SCREW, RETAININGF COVER TO GIMBAL HOUSING (5/8")
    SCREW, RETAININGF COVER TO GIMBAL HOUSING (5/8")
