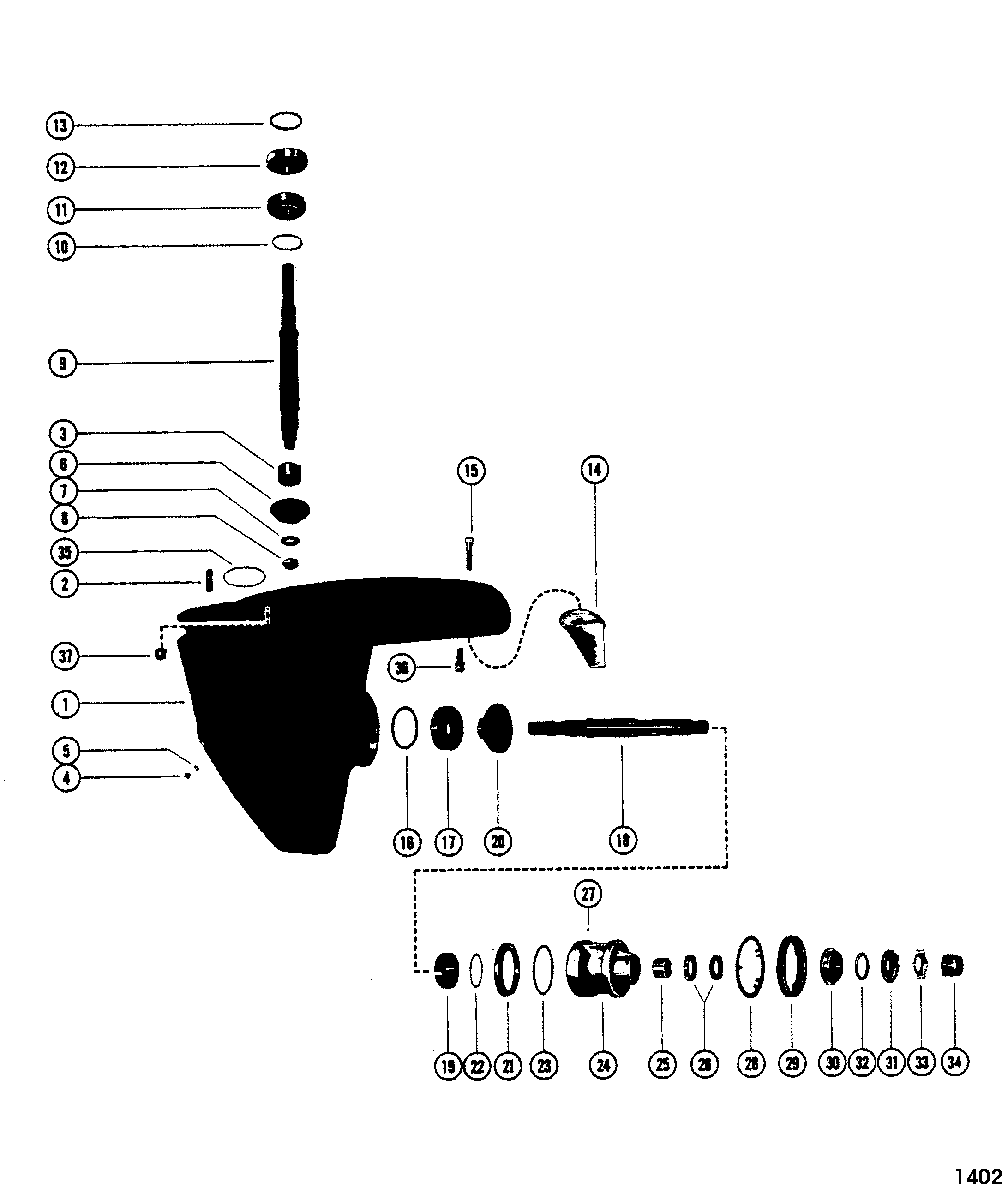

GEAR HOUSING ASSEMBLY, COMPLETE для Mercruiser - II-TR 1973-1976 3377316 THRU 4794899

  • №
    Артикул
    Название
  • 1641-4855A13 GEAR HOUSING ASSEMBLY, COMPLETE(LEFT HAND ROTATION)
    SERIAL 00000000-03786859
    GEAR HOUSING ASSEMBLY, COMPLETE(LEFT HAND ROTATION)
    SERIAL 00000000-03786859
  • 1641-4855A14 GEAR HOUSING ASSEMBLY, COMPLETE(RIGHT HAND ROTATION)
    SERIAL 00000000-03786859
    GEAR HOUSING ASSEMBLY, COMPLETE(RIGHT HAND ROTATION)
    SERIAL 00000000-03786859
  • 1641-4855A13 GEAR HOUSING ASSEMBLY, COMPLETE(LEFT HAND ROTATION)
    SERIAL 03786860-09999999
    GEAR HOUSING ASSEMBLY, COMPLETE(LEFT HAND ROTATION)
    SERIAL 03786860-09999999
  • 1641-4855A14 GEAR HOUSING ASSEMBLY, COMPLETE(RIGHT HAND ROTATION)
    SERIAL 03786860-09999999
    GEAR HOUSING ASSEMBLY, COMPLETE(RIGHT HAND ROTATION)
    SERIAL 03786860-09999999
  • 1
    1641-4855A6 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    16-8M0041668 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 7/8")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 7/8")
  • 3
    31-35246 ROLLER BEARING, DRIVE SHAFT
    ROLLER BEARING, DRIVE SHAFT
  • 4
    10-79953Q04 SCREW, VENT - GEAR HOUSING
    SCREW, VENT - GEAR HOUSING
  • 5
    12-191833 WASHER, SEAL - VENT SCREW
    WASHER, SEAL - VENT SCREW
  • 6
    43-62880T1 GEAR, PINION
    GEAR, PINION
  • 7
    12-54048 WASHER, PINION GEAR TO DRIVE SHAFT
    WASHER, PINION GEAR TO DRIVE SHAFT
  • 8
    11-55819 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 9
    45-62783T DRIVE SHAFT
    DRIVE SHAFT
  • 10
    15-26320A1 SHIM ASS'Y, ROLLER BEARING TO GEAR HOUSING (.002-3-5-10-20)
    SHIM ASS'Y, ROLLER BEARING TO GEAR HOUSING (.002-3-5-10-20)
  • 11
    31-48941A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
    TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
  • 12
    31-35990A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
    TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
  • 13
    25-54030 "O" RING, GEAR HOUSING TO DRIVE SHAFT HOUSING
    "O" RING, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 14
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 15
    10-41350 SCREW, TRIM TAB TO GEAR HOUSING (2 1/2")
    SCREW, TRIM TAB TO GEAR HOUSING (2 1/2")
  • 16
    15-55499A1 SHIM ASS'Y, ROLLER BEARING TO GEAR HSG. (.002-3-5-10-20)
    LEFT HAND ROTATION
    SHIM ASS'Y, ROLLER BEARING TO GEAR HSG. (.002-3-5-10-20)
    LEFT HAND ROTATION
  • 17
    31-8M0103475 TAPERED ROLLER BEARING ASSEMBLY, PROPELLER GEAR
    LEFT HAND ROTATION
    TAPERED ROLLER BEARING ASSEMBLY, PROPELLER GEAR
    LEFT HAND ROTATION
  • 18
    44-62820T1 PROPELLER SHAFT
    LEFT HAND ROTATION
    PROPELLER SHAFT
    LEFT HAND ROTATION
  • 19
    31-8M0103474 TAPERED ROLLER BEARING ASSEMBLY
    LEFT HAND ROTATION
    TAPERED ROLLER BEARING ASSEMBLY
    LEFT HAND ROTATION
  • 16
    15-47397A1 SHIM ASS'Y, ROLLER BEARING TO GEAR HSG. (.002-3-5-10)
    RIGHT HAND ROTATION
    SHIM ASS'Y, ROLLER BEARING TO GEAR HSG. (.002-3-5-10)
    RIGHT HAND ROTATION
  • 17
    31-62801A1 TAPERED ROLLER BEARING ASSEMBLY, PROPELLER GEAR
    RIGHT HAND ROTATION
    TAPERED ROLLER BEARING ASSEMBLY, PROPELLER GEAR
    RIGHT HAND ROTATION
  • 18
    44-62792 PROPELLER SHAFT
    RIGHT HAND ROTATION
    PROPELLER SHAFT
    RIGHT HAND ROTATION
  • 19
    31-62799A1 TAPERED ROLLER BEARING ASSEMBLY
    RIGHT HAND ROTATION
    TAPERED ROLLER BEARING ASSEMBLY
    RIGHT HAND ROTATION
  • 20
    43-62881T1 GEAR, DRIVE
    GEAR, DRIVE
  • 21
    66103A1 RING, THRUST - BEARING CARRIER
    SERIAL 00000000-03786859
    RING, THRUST - BEARING CARRIER
    SERIAL 00000000-03786859
  • 22
    15-54005A1 SHIM ASSEMBLY, ROLLER BEARING
    SERIAL 00000000-03786859
    SHIM ASSEMBLY, ROLLER BEARING
    SERIAL 00000000-03786859
  • 21
    66103A1 THRUST RING ASSEMBLY
    SERIAL 03786860-09999999
    THRUST RING ASSEMBLY
    SERIAL 03786860-09999999
  • 22
    23-66093T RING, LOAD - THRUST RING
    SERIAL 03786860-09999999
    RING, LOAD - THRUST RING
    SERIAL 03786860-09999999
  • 23
    25-34821 "O" RING, BEARING CARRIER TOM THRUST RING
    "O" RING, BEARING CARRIER TOM THRUST RING
  • 24
    863913A04 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 25
    31-54042T BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 26
    26-821092 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 27
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 28
    14-54167 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 29
    54163 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 30
    55074T THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 31
    12-55073A2 WASHER ASSEMBLY, SPLINED - PROPELLER SHAFT
    WASHER ASSEMBLY, SPLINED - PROPELLER SHAFT
  • 32
    12-55072 WASHER, THRUST - BEARING CARRIER
    WASHER, THRUST - BEARING CARRIER
  • 33
    14-34817 TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 34
    11-82671127 NUT,PROPELLER (1 1/4-7 THREAD)
    NUT,PROPELLER (1 1/4-7 THREAD)
  • 35
    25-54029 "O" RING, GEAR HOUSING TO DRIVE SHAFT HOUSING
    "O" RING, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 36
    10-47557 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 1/2")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 1/2")
  • 37
    11-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
