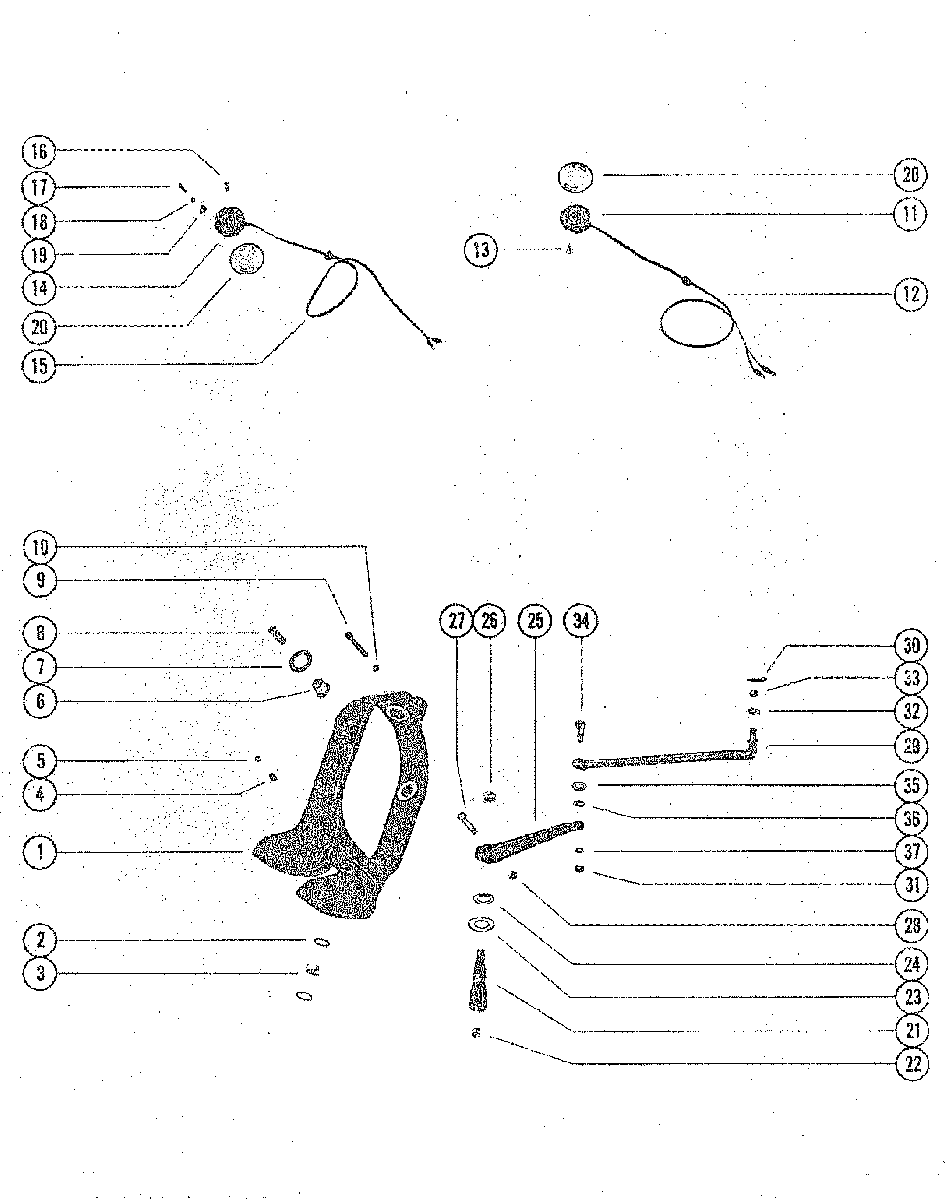

GIMBAL RING AND STEERING LEVER для Mercruiser - II-TR 1973-1976 3377316 THRU 4794899

  • №
    Артикул
    Название
  • 1
    42385A7 GIMBAL RING ASSEMBLY
    GIMBAL RING ASSEMBLY
  • 2
    26-54927 OIL SEAL, GIMBAL RING
    OIL SEAL, GIMBAL RING
  • 3
    31-54928 ROLLER BEARING, GIMBAL RING(SWIVEL PIN)
    ROLLER BEARING, GIMBAL RING(SWIVEL PIN)
  • 4
    22-69059 FITTING, GREASE - GIMBAL RING
    FITTING, GREASE - GIMBAL RING
  • 5
    19-77633Q LUBRICAP, GIMBAL RING GREASE FITTING
    LUBRICAP, GIMBAL RING GREASE FITTING
  • 6
    23-54002 BUSHING, GIMBAL RING (HINGE PIN)
    BUSHING, GIMBAL RING (HINGE PIN)
  • 7
    12-54019 WASHER, ANTI-GALLING-BELL HOUSING (HINGE PIN)
    WASHER, ANTI-GALLING-BELL HOUSING (HINGE PIN)
  • 8
    17-59812 PIN, HINGE - GIMBAL RING TO HOUSING (12 POINT SOCKET)
    PIN, HINGE - GIMBAL RING TO HOUSING (12 POINT SOCKET)
  • 9
    10-45833 SCREW, UPPER SWIVEL SHAFT RETAINING - GIMBAL RING (2 1/2")
    SCREW, UPPER SWIVEL SHAFT RETAINING - GIMBAL RING (2 1/2")
  • 10
    12-20546 WASHER, UPPER SWIVEL SHAFT RETAINING SCREW
    WASHER, UPPER SWIVEL SHAFT RETAINING SCREW
  • 11
    63115A2 SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
    SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
  • 12
    84-19279 HARNESS, TRIM LIMIT SWITCH
    HARNESS, TRIM LIMIT SWITCH
  • 13
    10-63400 SCREW, HARNESS ATTACHING (5/32")
    SCREW, HARNESS ATTACHING (5/32")
  • 14
    805320A2 SENDER ASSEMBLY, TRIM INDICATOR (STARBOARD SIDE)
    WITH TRIM GAUGE IN INSTRUMENT PANEL
    SENDER ASSEMBLY, TRIM INDICATOR (STARBOARD SIDE)
    WITH TRIM GAUGE IN INSTRUMENT PANEL
  • 15
    84-19276 HARNESS, TRIM INDICATOR SENDER
    WITH TRIM GAUGE IN INSTRUMENT PANEL
    HARNESS, TRIM INDICATOR SENDER
    WITH TRIM GAUGE IN INSTRUMENT PANEL
  • 16
    10-63400 SCREW, HARNESS ATTACHING (5/32")
    WITH TRIM GAUGE IN INSTRUMENT PANEL
    SCREW, HARNESS ATTACHING (5/32")
    WITH TRIM GAUGE IN INSTRUMENT PANEL
  • 14
    64947 SENDER, DUMMY (STARBOARD SIDE)
    WITH VACUUM GAUGE IN INSTRUMENT PANEL
    SENDER, DUMMY (STARBOARD SIDE)
    WITH VACUUM GAUGE IN INSTRUMENT PANEL
  • 15
    84-64987 HARNESS, DUMMY SENDER
    WITH VACUUM GAUGE IN INSTRUMENT PANEL
    HARNESS, DUMMY SENDER
    WITH VACUUM GAUGE IN INSTRUMENT PANEL
  • 16
    10-46942 SCREW, HARNESS ATTACHING (5/16")
    WITH VACUUM GAUGE IN INSTRUMENT PANEL
    SCREW, HARNESS ATTACHING (5/16")
    WITH VACUUM GAUGE IN INSTRUMENT PANEL
  • 17
    10-37978 SCREW, TRIM SENDER AND SWITCH TO GIMBAL RING (3/4")
    SCREW, TRIM SENDER AND SWITCH TO GIMBAL RING (3/4")
  • 18
    13-26996 LOCKWASHER, TRIM SENDER AND SWITCH SCREW
    LOCKWASHER, TRIM SENDER AND SWITCH SCREW
  • 19
    57008 RETAINER, TRIM SENDER AND SWITCH SCREW
    RETAINER, TRIM SENDER AND SWITCH SCREW
  • 20
    85-63990 INSULATOR, SWITCH AND SENDER TO GIMBAL RING
    INSULATOR, SWITCH AND SENDER TO GIMBAL RING
  • 21
    42385A7 SHAFT, UPPER SWIVEL - GIMBAL RING TO GIMBAL HOUSING
    SHAFT, UPPER SWIVEL - GIMBAL RING TO GIMBAL HOUSING
  • 22
    22-32561 PLUG, PIPE - UPPER SWIVEL SHAFT
    PLUG, PIPE - UPPER SWIVEL SHAFT
  • 23
    12-54026 WASHER, UPPER SWIVEL SHAFT (2"O.D.)
    WASHER, UPPER SWIVEL SHAFT (2"O.D.)
  • 24
    12-54027 WASHER, UPPER SWIVEL SHAFT (1 5/8" O.D.)
    WASHER, UPPER SWIVEL SHAFT (1 5/8" O.D.)
  • 25
    88433 LEVER, STEERING (USE WITH LINK ROD NOT DRILLED FOR COTTER PI)
    LEVER, STEERING (USE WITH LINK ROD NOT DRILLED FOR COTTER PI)
  • 25
    88433 LEVER, STEERING(USE WITH LINK ROD DRILLED FOR COTTER PIN)
    LEVER, STEERING(USE WITH LINK ROD DRILLED FOR COTTER PIN)
  • 26
    11-8M2014641 NUT, STEERING LEVERE TO UPPER SWIVEL SHAFT
    NUT, STEERING LEVERE TO UPPER SWIVEL SHAFT
  • 27
    10-68479 SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT (2 1/4")
    SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT (2 1/4")
  • 28
    11-34933 NUT, STEERING LEVER SCREW
    NUT, STEERING LEVER SCREW
  • 29
    67538A1 LINK ROD ASSEMBLY, STEERING
    LINK ROD NOT DRILLED FOR COTTER PIN
    LINK ROD ASSEMBLY, STEERING
    LINK ROD NOT DRILLED FOR COTTER PIN
  • 31
    11-8M0042636 NUT, LINK ROD BOLT
    LINK ROD NOT DRILLED FOR COTTER PIN
    NUT, LINK ROD BOLT
    LINK ROD NOT DRILLED FOR COTTER PIN
  • 32
    12-20086 WASHER, LINK ROD
    LINK ROD NOT DRILLED FOR COTTER PIN
    WASHER, LINK ROD
    LINK ROD NOT DRILLED FOR COTTER PIN
  • 33
    11-8M0042636 NUT, LINK ROD
    LINK ROD NOT DRILLED FOR COTTER PIN
    NUT, LINK ROD
    LINK ROD NOT DRILLED FOR COTTER PIN
  • 34
    10-54488 BOLT, LINK ROD TO STEERING LEVER
    LINK ROD NOT DRILLED FOR COTTER PIN
    BOLT, LINK ROD TO STEERING LEVER
    LINK ROD NOT DRILLED FOR COTTER PIN
  • 29
    67538A1 LINK ROD ASSEMBLY, STEERING
    LINK ROD DRILLED FOR COTTER PIN.
    LINK ROD ASSEMBLY, STEERING
    LINK ROD DRILLED FOR COTTER PIN.
  • 30
    18-45882 COTTER PIN, REATANING - STEERING LINK ROD
    LINK ROD DRILLED FOR COTTER PIN.
    COTTER PIN, REATANING - STEERING LINK ROD
    LINK ROD DRILLED FOR COTTER PIN.
  • 31
    11-55438 NUT, LINK ROD BOLT
    LINK ROD DRILLED FOR COTTER PIN.
    NUT, LINK ROD BOLT
    LINK ROD DRILLED FOR COTTER PIN.
  • 32
    12-20086 WASHER, LINK ROD
    LINK ROD DRILLED FOR COTTER PIN.
    WASHER, LINK ROD
    LINK ROD DRILLED FOR COTTER PIN.
  • 33
    11-55438 NUT, LINK ROD
    LINK ROD DRILLED FOR COTTER PIN.
    NUT, LINK ROD
    LINK ROD DRILLED FOR COTTER PIN.
  • 34
    10-66389 BOLT, LINK ROD TO STEERING LEVER
    LINK ROD DRILLED FOR COTTER PIN.
    BOLT, LINK ROD TO STEERING LEVER
    LINK ROD DRILLED FOR COTTER PIN.
  • 35
    12-34966 WASHER, NYLON - LINK ROD BOLT
    WASHER, NYLON - LINK ROD BOLT
  • 36
    13-54667 WASHER, WAVE - LINK ROD BOLT
    WASHER, WAVE - LINK ROD BOLT
  • 37
    12-20086 WASHER, LINK ROD BOLT
    WASHER, LINK ROD BOLT
