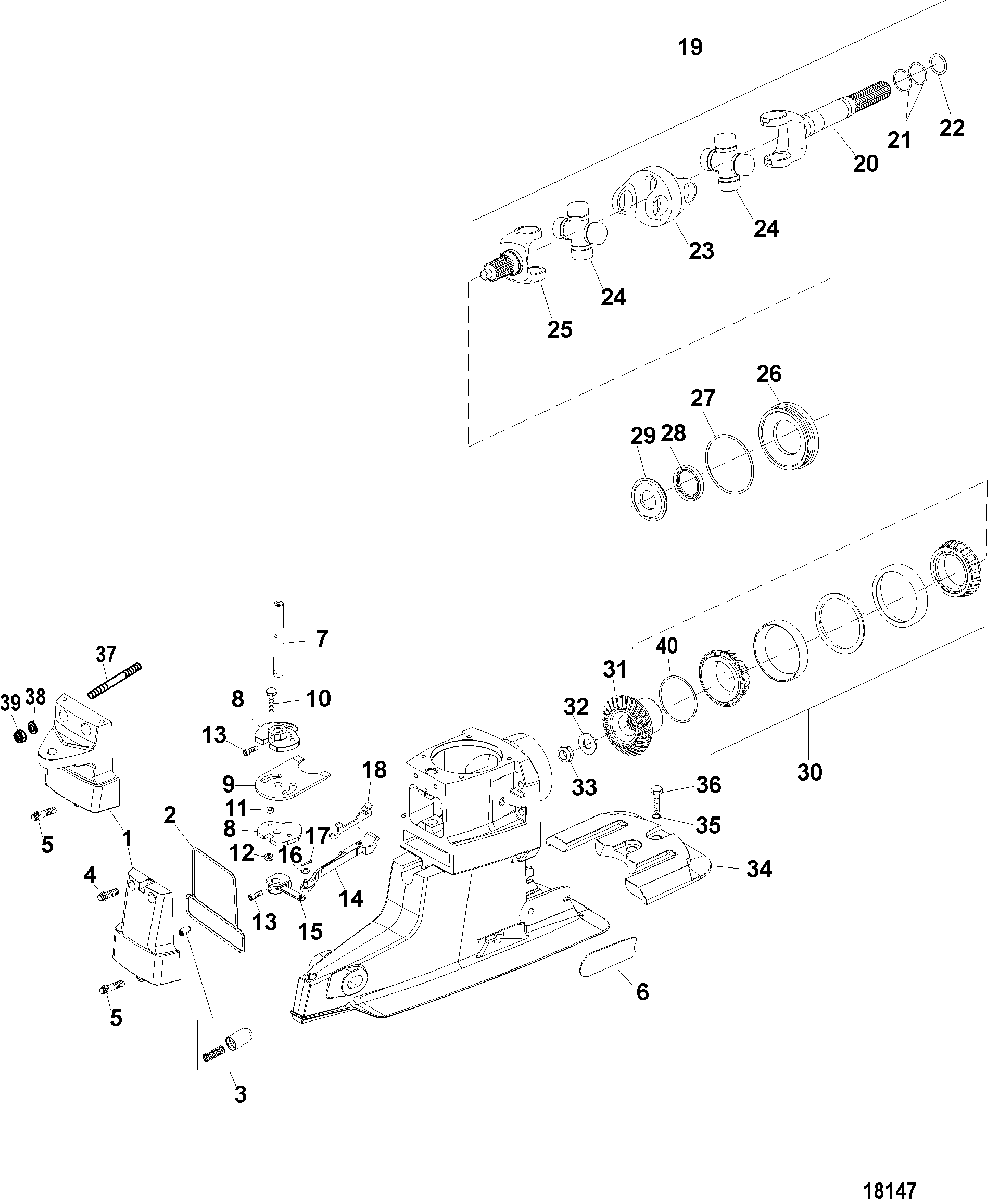

Universal Joint And Shifter Components(XR/XZ-Drive) для Mercruiser - BRAVO XR ONE 0L914990 THRU 0W239999
-
№АртикулНазвание
-
112717A1 COVER ASSEMBLY, BackCOVER ASSEMBLY, Back
-
1840839T1 COVER ASSEMBLY, Back
(Integrated Transom)COVER ASSEMBLY, Back
(Integrated Transom) -
212708 SEALSEAL
-
3865711A02 DETENT ASSEMBLYDETENT ASSEMBLY
-
410-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
510-87158 SCREW, (.375-16 x 1.875)SCREW, (.375-16 x 1.875)
-
6805261A1 WEAR PAD KITWEAR PAD KIT
-
712711 SHAFT, ShifterSHAFT, Shifter
-
8806552A1 YOKE AND CAM ASSEMBLYYOKE AND CAM ASSEMBLY
-
9806552 YOKE, Shifter, ShifterYOKE, Shifter, Shifter
-
1010-805733 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
1123-12706 SPACER, (.194 x .375)SPACER, (.194 x .375)
-
1211-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
1310-38615 SCREW, (.250-28 x .750)SCREW, (.250-28 x .750)
-
14861175A2 SHIFT LINKAGE ASSEMBLY, High Bump Shift LeverSHIFT LINKAGE ASSEMBLY, High Bump Shift Lever
-
15NSS NOT SOLD SEPARATE, Lever, ShiftNOT SOLD SEPARATE, Lever, Shift
-
1612-20583 WASHERWASHER
-
1718-26953 COTTER PINCOTTER PIN
-
1886776 LATCHLATCH
-
19865425A03 UNIVERSAL JOINT ASSEMBLYUNIVERSAL JOINT ASSEMBLY
-
19865425T02 UNIVERSAL JOINT ASSEMBLY, Long
(Integrated Transom)UNIVERSAL JOINT ASSEMBLY, Long
(Integrated Transom) -
20NSS NOT SOLD SEPARATE, Yoke Assembly, Coupler EndNOT SOLD SEPARATE, Yoke Assembly, Coupler End
-
2125-29845 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
2225-35027 O-RING, (1.046)O-RING, (1.046)
-
23NSS NOT SOLD SEPARATE, Socket, CenterNOT SOLD SEPARATE, Socket, Center
-
24865425A03 CROSS AND BEARINGCROSS AND BEARING
-
25NSS NOT SOLD SEPARATE, Yoke, Gear EndNOT SOLD SEPARATE, Yoke, Gear End
-
2611-841026A2 RETAINER/SEAL KIT
(XR And XZ Drives Only)RETAINER/SEAL KIT
(XR And XZ Drives Only) -
2725-861844 O-RINGO-RING
-
2826-807006 SEAL, Oil
SN# 0M158904 & BelowSEAL, Oil
SN# 0M158904 & Below -
2826-43993 SEAL, Oil
SN# 0M158905 & UpSEAL, Oil
SN# 0M158905 & Up -
2912-862134 WASHERWASHER
-
3031-8M0104357 BEARING ASSEMBLY, Tapered
SN# 0M198372 & BelowBEARING ASSEMBLY, Tapered
SN# 0M198372 & Below -
3031-8M0104358 BEARING ASSEMBLY, Tapered Roller
SN# 0M198373 & UpBEARING ASSEMBLY, Tapered Roller
SN# 0M198373 & Up -
3143-887906A1 GEAR SET, (29/27)
(See Sterndrive Unit Chart For Application)GEAR SET, (29/27)
(See Sterndrive Unit Chart For Application) -
3143-887903A1 GEAR SET, (32/27)
(See Sterndrive Unit Chart For Application)GEAR SET, (32/27)
(See Sterndrive Unit Chart For Application) -
3143-840898A3 GEAR SET, (16/19)
(See Sterndrive Unit Chart For Application)GEAR SET, (16/19)
(See Sterndrive Unit Chart For Application) -
3143-849320T GEAR, (16 Teeth), Pinion
(Bravo One XR 1.50:1 Ratio)GEAR, (16 Teeth), Pinion
(Bravo One XR 1.50:1 Ratio) -
3212-861832 WASHERWASHER
-
3311-22339 NUT, (.625-18)NUT, (.625-18)
-
3497-821630Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
3513-35479 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3610-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3610-94247 SCREW, (.375-16 x .750) Stainless Steel
(Sportmaster Models Only)SCREW, (.375-16 x .750) Stainless Steel
(Sportmaster Models Only) -
3716-8M0022145 STUD, (.375-16/.375-24 x 1.750)STUD, (.375-16/.375-24 x 1.750)
-
3812-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
3911-82671013 NUT, (.375-24)NUT, (.375-24)
-
4015-888927028 SHIM, (.028)
SN# 0M198373 & UpSHIM, (.028)
SN# 0M198373 & Up -
4015-888927029 SHIM, (.029)
SN# 0M198373 & UpSHIM, (.029)
SN# 0M198373 & Up -
4015-888927030 SHIM, (.030)
SN# 0M198373 & UpSHIM, (.030)
SN# 0M198373 & Up -
4015-888927031 SHIM, (.031)
SN# 0M198373 & UpSHIM, (.031)
SN# 0M198373 & Up -
4015-888927032 SHIM, (.032)
SN# 0M198373 & UpSHIM, (.032)
SN# 0M198373 & Up -
4015-888927033 SHIM, (.033)
SN# 0M198373 & UpSHIM, (.033)
SN# 0M198373 & Up -
4015-888927034 SHIM, (.034)
SN# 0M198373 & UpSHIM, (.034)
SN# 0M198373 & Up -
4015-888927035 SHIM, (.035)
SN# 0M198373 & UpSHIM, (.035)
SN# 0M198373 & Up -
4015-888927036 SHIM, (.036)
SN# 0M198373 & UpSHIM, (.036)
SN# 0M198373 & Up -
4015-888927037 SHIM, (.037)
SN# 0M198373 & UpSHIM, (.037)
SN# 0M198373 & Up -
4015-888927038 SHIM, (.038)
SN# 0M198373 & UpSHIM, (.038)
SN# 0M198373 & Up -
4015-888927039 SHIM, (.039)
SN# 0M198373 & UpSHIM, (.039)
SN# 0M198373 & Up -
4015-888927040 SHIM, (.040)
SN# 0M198373 & UpSHIM, (.040)
SN# 0M198373 & Up -
NS26-16709A2 SEAL KIT, Driveshaft HousingSEAL KIT, Driveshaft Housing
