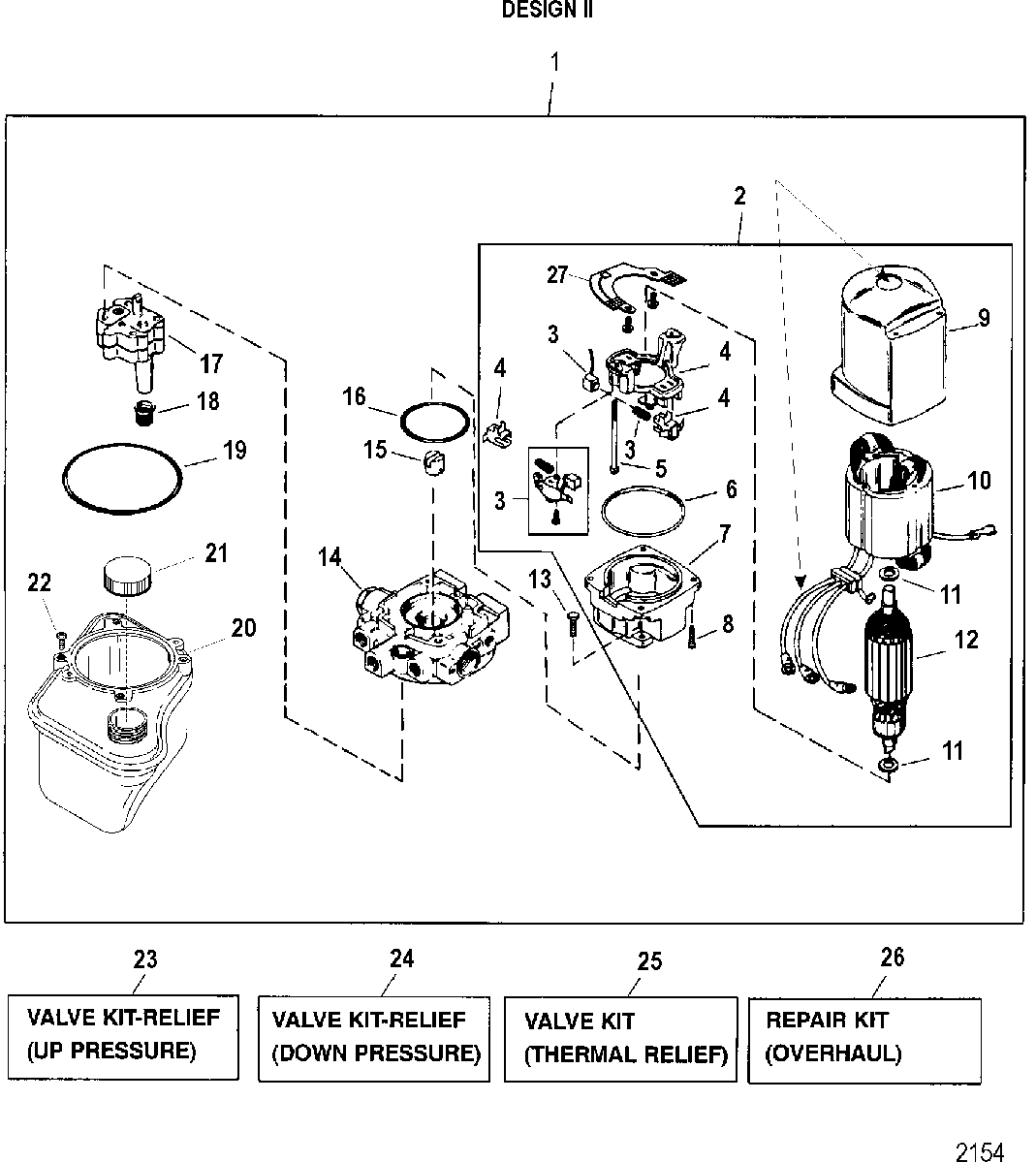

Pump/Motor(Top Mount Reservoir) (Design II - 14336A25) для Mercruiser - BRAVO XR ONE 0L914990 THRU 0W239999

  • №
    Артикул
    Название
  • 1
    865380A13 PUMP/MOTOR ASSEMBLY
    (Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
    PUMP/MOTOR ASSEMBLY
    (Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
  • 2
    891736T MOTOR ASSEMBLY, Complete
    (Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
    MOTOR ASSEMBLY, Complete
    (Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line)
  • 3
    891737 BRUSH KIT
    BRUSH KIT
  • 4
    891738 HOLDER ASSEMBLY, Brushes
    HOLDER ASSEMBLY, Brushes
  • 5
    10-891739 SCREW, Brush Holder
    SCREW, Brush Holder
  • 6
    25-891740 O-RING
    O-RING
  • 7
    NSS NOT SOLD SEPARATE, End Cap Assembly
    NOT SOLD SEPARATE, End Cap Assembly
  • 8
    10-891741 SCREW
    SCREW
  • 9
    NSS NOT SOLD SEPARATE, Cover Assembly - With Bearing
    NOT SOLD SEPARATE, Cover Assembly - With Bearing
  • 10
    NSS NOT SOLD SEPARATE, Field And Frame Assembly
    NOT SOLD SEPARATE, Field And Frame Assembly
  • 11
    NSS NOT SOLD SEPARATE, Thrust Washer
    NOT SOLD SEPARATE, Thrust Washer
  • 12
    NSS NOT SOLD SEPARATE, Armature
    NOT SOLD SEPARATE, Armature
  • 13
    10-823444 SCREW
    SCREW
  • 14
    808728T ADAPTER ASSEMBLY
    ADAPTER ASSEMBLY
  • 15
    803852 COUPLING
    COUPLING
  • 16
    25-89498 O-RING, Motor End
    O-RING, Motor End
  • 17
    18529 PUMP ASSEMBLY, Includes Screws
    PUMP ASSEMBLY, Includes Screws
  • 18
    35-89496 FILTER
    FILTER
  • 19
    25-17645 O-RING, Reservoir End
    O-RING, Reservoir End
  • 20
    883166A2 RESERVOIR KIT, With Filters And O-Ring
    (Reference 18 And Reference 19)
    RESERVOIR KIT, With Filters And O-Ring
    (Reference 18 And Reference 19)
  • 21
    36-865448A01 CAP, Standard
    CAP, Standard
  • 21
    36-865448A01 CAP, Oil Reservoir, Rough Water Application
    CAP, Oil Reservoir, Rough Water Application
  • 22
    10-883167 SCREW, (#8-32)
    SCREW, (#8-32)
  • 23
    812498A1 VALVE KIT, Relief, Up Pressure
    VALVE KIT, Relief, Up Pressure
  • 24
    812499A1 VALVE KIT, Relief, Down Pressure
    VALVE KIT, Relief, Down Pressure
  • 25
    95353A1 VALVE KIT, Relief, Thermal
    VALVE KIT, Relief, Thermal
  • 26
    18545A1 REPAIR KIT
    REPAIR KIT
  • 27
    892608 BOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
    BOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter
