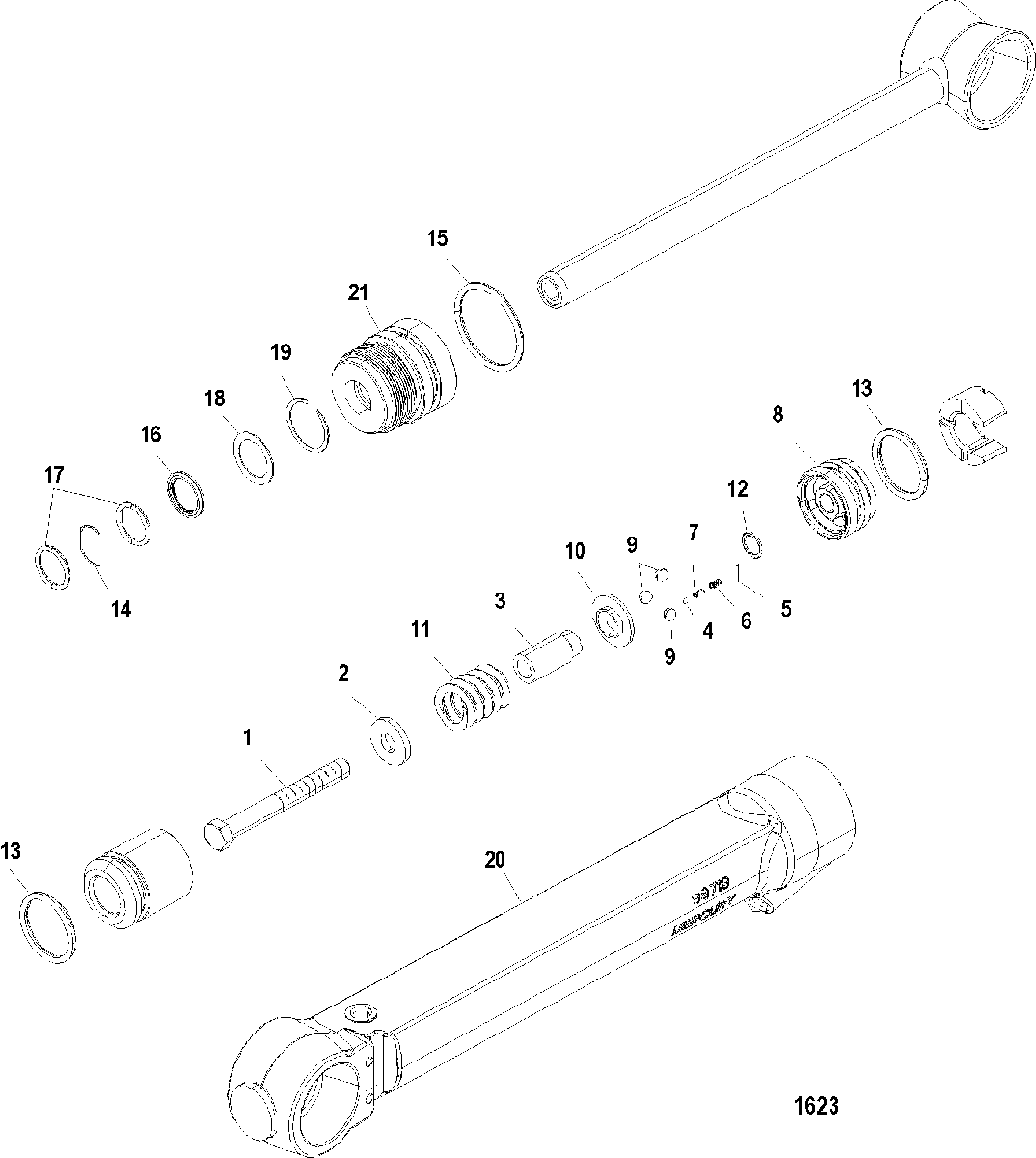

Power Trim Cylinder Repair Kits для Mercruiser - BRAVO XR ONE 0L914990 THRU 0W239999

  • №
    Артикул
    Название
  • _
    87399A2 OVERHAUL KIT
    OVERHAUL KIT
  • 1
    NSS NOT SOLD SEPARATE, Screw (M10 x 85)
    NOT SOLD SEPARATE, Screw (M10 x 85)
  • 2
    NSS NOT SOLD SEPARATE, Washer
    NOT SOLD SEPARATE, Washer
  • 3
    NSS NOT SOLD SEPARATE, Guide
    NOT SOLD SEPARATE, Guide
  • 4
    NSS NOT SOLD SEPARATE, Ball, Steel (.109 Diameter)
    NOT SOLD SEPARATE, Ball, Steel (.109 Diameter)
  • 5
    NSS NOT SOLD SEPARATE, Pin
    NOT SOLD SEPARATE, Pin
  • 6
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 7
    NSS NOT SOLD SEPARATE, Eyelet
    NOT SOLD SEPARATE, Eyelet
  • 8
    NSS NOT SOLD SEPARATE, Piston
    NOT SOLD SEPARATE, Piston
  • 9
    NSS NOT SOLD SEPARATE, Ball (.250 Diameter)
    NOT SOLD SEPARATE, Ball (.250 Diameter)
  • 10
    NSS NOT SOLD SEPARATE, Pusher
    NOT SOLD SEPARATE, Pusher
  • 11
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • -
    25-87400A2 SEAL KIT
    SEAL KIT
  • 12
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 13
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 14
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 15
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 16
    NSS NOT SOLD SEPARATE, Scraper Rod
    NOT SOLD SEPARATE, Scraper Rod
  • 17
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 18
    NSS NOT SOLD SEPARATE, Washer
    NOT SOLD SEPARATE, Washer
  • 19
    NSS NOT SOLD SEPARATE, Retaining Ring
    NOT SOLD SEPARATE, Retaining Ring
  • 20
    98703T TUBE, Port Cylinder
    (Casting # 98703 Or 98718)
    TUBE, Port Cylinder
    (Casting # 98703 Or 98718)
  • 20
    98704T TUBE, Starboard Cylinder
    (Casting # 98704 Or 98719)
    TUBE, Starboard Cylinder
    (Casting # 98704 Or 98719)
  • 21
    98-8M0118340 CAP
    CAP
