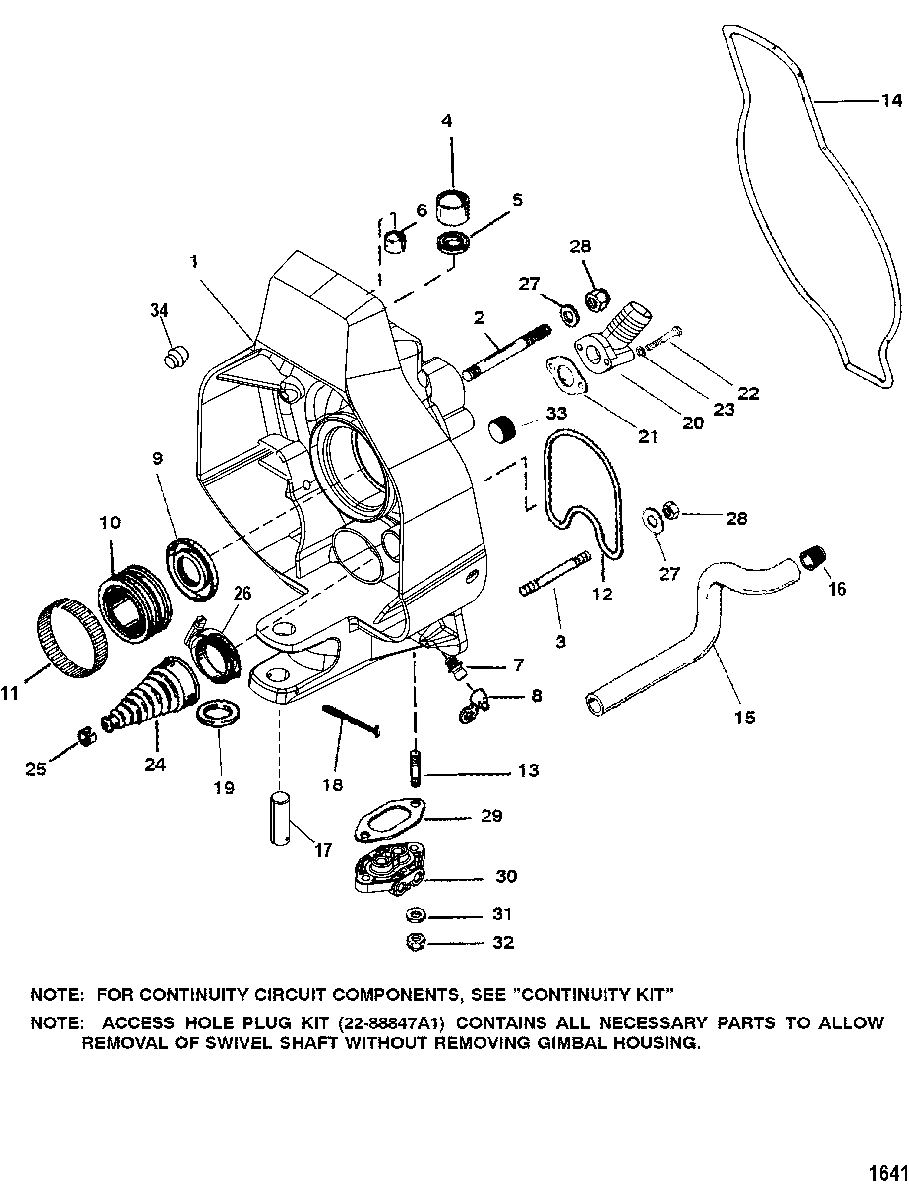

Gimbal Housing для Mercruiser - BRAVO XR ONE 0L914990 THRU 0W239999
-
№АртикулНазвание
-
18M0096216 GIMBAL HOUSING ASSEMBLYGIMBAL HOUSING ASSEMBLY
-
216-56296 STUD, (.437-20 x 4.750)STUD, (.437-20 x 4.750)
-
316-818834 STUD, (.437-20 x 4.250)STUD, (.437-20 x 4.250)
-
423-983571 BUSHINGBUSHING
-
526-8M2005029 SEAL, OilSEAL, Oil
-
623-98356 BUSHINGBUSHING
-
722-74036 FITTING, Grease
(Use with greased bearing)FITTING, Grease
(Use with greased bearing) -
710-8M2015913 PLUG, (.250-28 x .320)
(Use with non-greased bearing)PLUG, (.250-28 x .320)
(Use with non-greased bearing) -
819-77633Q LUBRICAPLUBRICAP
-
926-88416 SEAL, OilSEAL, Oil
-
1030-879194A01 BEARING ASSEMBLYBEARING ASSEMBLY
-
1161075 TOLERANCE RINGTOLERANCE RING
-
1241802 SEAL, Rubber, Exhaust PipeSEAL, Rubber, Exhaust Pipe
-
1316-56766 STUD, (.250-20/.250-28 x 1.380)STUD, (.250-20/.250-28 x 1.380)
-
1443713 SEALSEAL
-
1532-8M0090859 HOSEHOSE
-
1641674T INSERTINSERT
-
1717-8M0073409 SWIVEL PIN, LowerSWIVEL PIN, Lower
-
1818-54929 COTTER PINCOTTER PIN
-
1912-32518 WASHERWASHER
-
2022-8M0081543 CONNECTORCONNECTOR
-
2127-8M0109475 GASKETGASKET
-
2210-78038 SCREW, (.250-20 x 1.75)SCREW, (.250-20 x 1.75)
-
2313-21272 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
2474639A2 BELLOWS ASSEMBLY, Shift CableBELLOWS ASSEMBLY, Shift Cable
-
2554-8M0090424 CLAMPCLAMP
-
2654-815504320 CLAMP, Worm GearCLAMP, Worm Gear
-
2712-34567 WASHERWASHER
-
2811-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2927-988231 GASKETGASKET
-
308M0137703 MANIFOLD ASSEMBLYMANIFOLD ASSEMBLY
-
3113-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
-
3211-8267119 NUT, (.250-28)NUT, (.250-28)
-
3322-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
3419-861492 PLUG, Trim SwitchPLUG, Trim Switch
-
NS22-88847A1 PLUG KIT, Access Hole
(Kit Contains All Necessary Parts To Allow Removal Of Swivel Shaft Without Removing Gimbal Housing)PLUG KIT, Access Hole
(Kit Contains All Necessary Parts To Allow Removal Of Swivel Shaft Without Removing Gimbal Housing)
