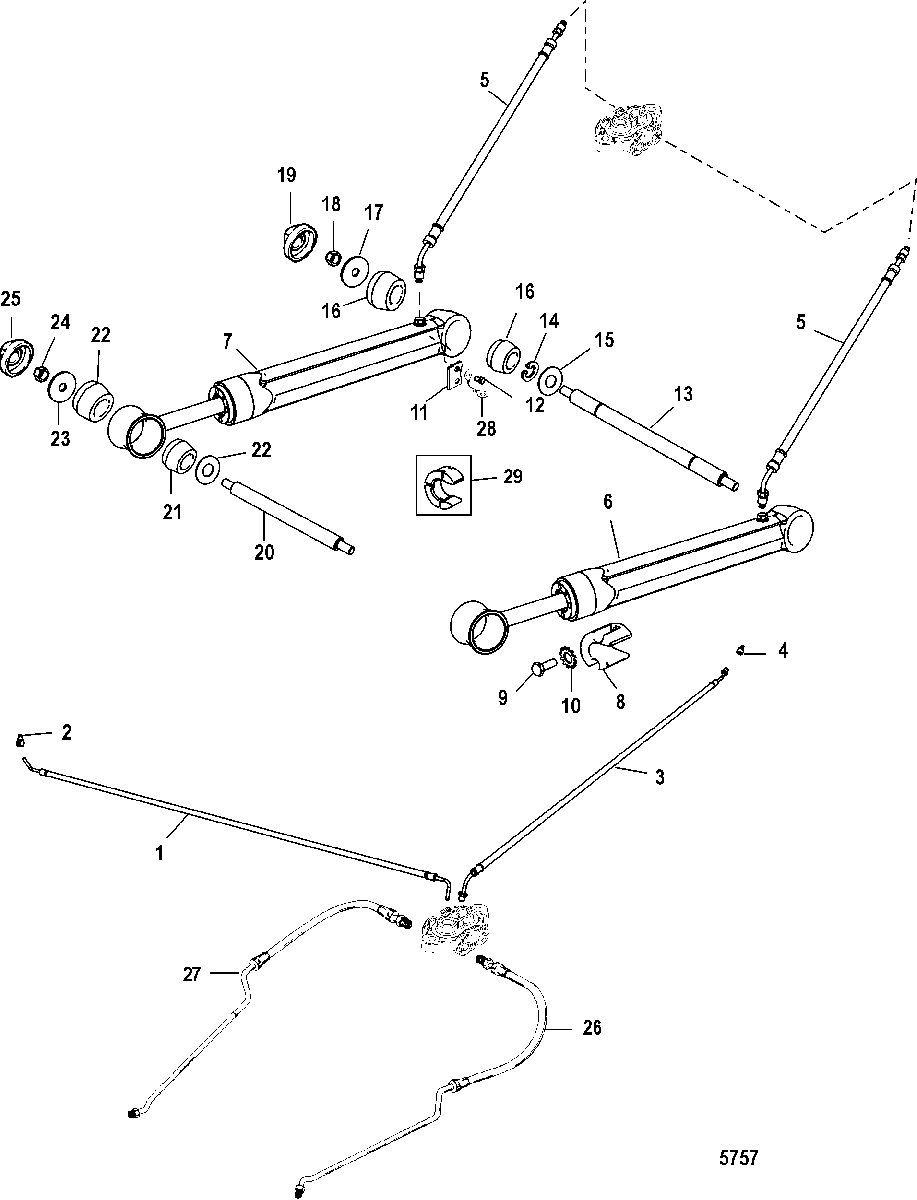

Trim Cylinders and Hydraulic Hoses(Standard Transoms) для Mercruiser - BRAVO X THREE 0W250000 & Up
-
№АртикулНазвание
-
132-865384001 HOSE, Black, Hydraulic Manifold to PumpHOSE, Black, Hydraulic Manifold to Pump
-
222-865410001 FITTING, Female Quick ConnectFITTING, Female Quick Connect
-
332-865385001 HOSE, Gray, Hydraulic Manifold to PumpHOSE, Gray, Hydraulic Manifold to Pump
-
422-865411001 FITTING, Male Quick ConnectFITTING, Male Quick Connect
-
532-99904Q HOSE, Trim Cylinder To ConnectorHOSE, Trim Cylinder To Connector
-
68M0132610 TRIM CYLINDER ASSEMBLY, Starboard
(See Power Trim Cylinder Repair Kits For Breakdown)TRIM CYLINDER ASSEMBLY, Starboard
(See Power Trim Cylinder Repair Kits For Breakdown) -
68M0128693 TRIM CYLINDER ASSEMBLY, Starboard
(SEACORE)(See Power Trim Cylinder Repair Kits For Breakdown)TRIM CYLINDER ASSEMBLY, Starboard
(SEACORE)(See Power Trim Cylinder Repair Kits For Breakdown) -
78M0132609 TRIM CYLINDER ASSEMBLY, Port
(See Power Trim Cylinder Repair Kits For Breakdown)TRIM CYLINDER ASSEMBLY, Port
(See Power Trim Cylinder Repair Kits For Breakdown) -
78M0128692 TRIM CYLINDER ASSEMBLY, Port
(SEACORE)(See Power Trim Cylinder Repair Kits For Breakdown)TRIM CYLINDER ASSEMBLY, Port
(SEACORE)(See Power Trim Cylinder Repair Kits For Breakdown) -
NS87399A2 OVERHAUL KITOVERHAUL KIT
-
NS25-87400A2 SEAL KITSEAL KIT
-
897-806190Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
910-806290 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
1013-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
1185060 PLATEPLATE
-
1210-85486 SCREW, (.250-20 x .380) Stainless SteelSCREW, (.250-20 x .380) Stainless Steel
-
1317-44167A1 PIN, Front AnchorPIN, Front Anchor
-
1453-805272 RING, RetainingRING, Retaining
-
1512-44164 WASHERWASHER
-
1623-807073 BUSHINGBUSHING
-
1712-44163 WASHER, (.450 x 1.75 x .12)WASHER, (.450 x 1.75 x .12)
-
1811-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1919-14842 CAPCAP
-
2017-44166 PIN, Rear AnchorPIN, Rear Anchor
-
2112-44164 WASHERWASHER
-
2223-807073 BUSHINGBUSHING
-
2312-44163 WASHER, (.450 x 1.75 x .12)WASHER, (.450 x 1.75 x .12)
-
2411-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2519-14842 CAPCAP
-
2632-864589 HOSE, Trim Cylinder
(Starboard)HOSE, Trim Cylinder
(Starboard) -
2732-864588 HOSE, Trim Cylinder
(Port)HOSE, Trim Cylinder
(Port) -
2888238A13 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
2915768A3 SPACER KIT, TILTSPACER KIT, TILT
