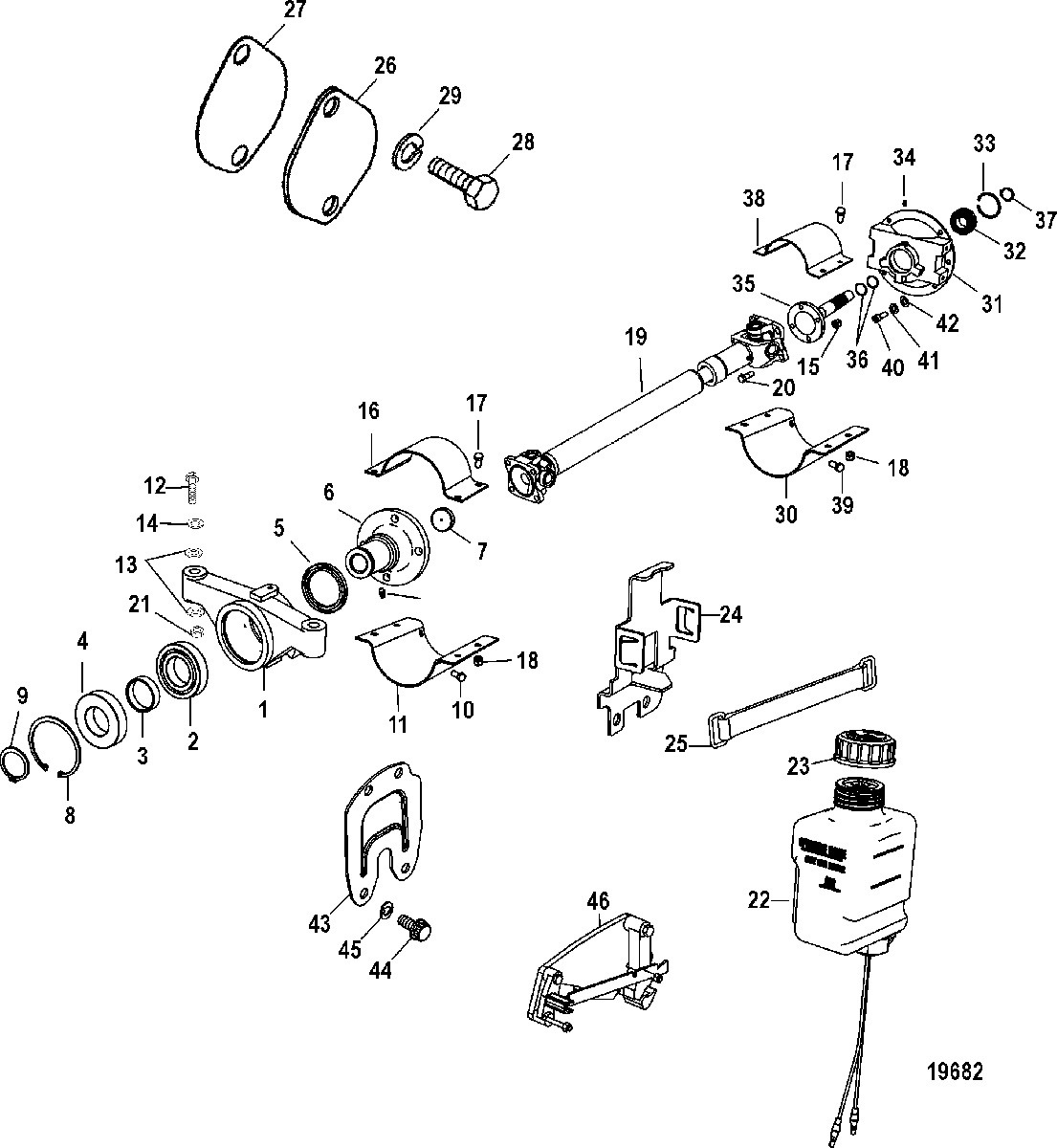

Driveshaft Extension Kit, QSB 5.9L для Mercruiser - BRAVO X THREE 0W250000 & Up

№

Артикул

Название
-

866274A01 EXTENSION KIT, Driveshaft

EXTENSION KIT, Driveshaft

215 780 ₽
1

817416A4 HOUSING ASSEMBLY

HOUSING ASSEMBLY

121 940 ₽
2

30-93944A2 BEARING SET, Ball (Includes Item 4)

BEARING SET, Ball (Includes Item 4)

13 590 ₽
3

23-817417 SPACER

SPACER

2 480 ₽
4

30-93944A2 BEARING SET, Ball (Includes Item 2)

BEARING SET, Ball (Includes Item 2)

13 590 ₽
5

26-93924 SEAL

SEAL

2 480 ₽
6

817415T SHAFT

SHAFT

104 010 ₽
7

19-93921 EXPANSION PLUG

EXPANSION PLUG

3 540 ₽
8

53-93914 RING, Retaining

RING, Retaining

8 030 ₽
9

53-93915 RING, Retaining

RING, Retaining

5 020 ₽
10

10-76926 SCREW, (.375-16 x .875)

SCREW, (.375-16 x .875)

100 ₽
11

93918A1 SHIELD, Lower

SHIELD, Lower

22 740 ₽
12

10-57053 SCREW, (.500-20 x 4.500)

SCREW, (.500-20 x 4.500)

420 ₽
13

12-42307 WASHER

WASHER

1 440 ₽
14

12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum

WASHER, (.5156 x 1.375 x .125) Aluminum

180 ₽
15

11-82670815 NUT, (.437-20)

NUT, (.437-20)

170 ₽
16

862873T SHIELD

SHIELD

9 640 ₽
17

10-76926 SCREW, (.375-16 x .875)

SCREW, (.375-16 x .875)

100 ₽
18

11-82670912 NUT, (.375-16)

NUT, (.375-16)

410 ₽
19

45-864286A1 DRIVESHAFT ASSEMBLY, (63.00 Inches)

DRIVESHAFT ASSEMBLY, (63.00 Inches)

170 960 ₽
19

8M2000586 DRIVESHAFT, (9.69 inch)

DRIVESHAFT, (9.69 inch)

130 400 ₽
20

10-805159 SCREW, (.437-20 x 1.500)

SCREW, (.437-20 x 1.500)

370 ₽
21

11-863332 NUT, (.500-20) Aluminum

NUT, (.500-20) Aluminum

450 ₽
22

8M0075708 MONITOR ASSEMBLY, Drive Lube

MONITOR ASSEMBLY, Drive Lube

2 500 ₽
23

36-8067271 CAP, Drive Lube Monitor

CAP, Drive Lube Monitor

1 040 ₽
24

860065A1 BRACKET KIT

BRACKET KIT

3 190 ₽
25

808023T STRAP

STRAP

360 ₽
-

8M0095447 BLOCK OFF KIT

BLOCK OFF KIT

4 140 ₽
26

8M0095447 COVER

COVER

4 140 ₽
27

27-818305 GASKET

GASKET

190 ₽
28

10-28636 SCREW, (.250-20 x .750)

SCREW, (.250-20 x .750)

90 ₽
29

13-26992 LOCKWASHER, (.250) Stainless Steel

LOCKWASHER, (.250) Stainless Steel

70 ₽
-

93911A15 TAILSTOCK KIT

TAILSTOCK KIT

270 110 ₽
30

93918A1 SHIELD, Lower

SHIELD, Lower

22 740 ₽
-

NSS NOT SOLD SEPARATE, Housing Assembly

NOT SOLD SEPARATE, Housing Assembly

0 ₽
31

NSS NOT SOLD SEPARATE, Housing

NOT SOLD SEPARATE, Housing

0 ₽
32

30-879194A03 BEARING, Ball

BEARING, Ball

15 450 ₽
33

53-94104 RING, Retaining

RING, Retaining

800 ₽
34

22-74036 FITTING, Grease
(Use with greased bearing)

FITTING, Grease
(Use with greased bearing)

340 ₽
34

10-8M2015913 PLUG, (.250-28 x .320)
(Use with non-greased bearing)

PLUG, (.250-28 x .320)
(Use with non-greased bearing)

510 ₽
35

NSS NOT SOLD SEPARATE, Shaft

NOT SOLD SEPARATE, Shaft

0 ₽
36

25-29845 O-RING, (.924 x .103)

O-RING, (.924 x .103)

190 ₽
37

53-8M0141818 RING, Retaining

RING, Retaining

0 ₽
38

93919A1 SHIELD, Upper

SHIELD, Upper

23 260 ₽
39

10-96995 SCREW, (.375-16 x .880)

SCREW, (.375-16 x .880)

120 ₽
40

10-29081 SCREW, (.437-14 x 1.250)

SCREW, (.437-14 x 1.250)

380 ₽
41

13-32993 LOCKWASHER, (.437)

LOCKWASHER, (.437)

120 ₽
42

12-878072 WASHER, (.469 x 1.125 x .063)

WASHER, (.469 x 1.125 x .063)

230 ₽
43

861776A2 PLATE KIT

PLATE KIT

8 610 ₽
44

10-8M0113180 SCREW, (.375-16 x 1.00)

SCREW, (.375-16 x 1.00)

420 ₽
45

13-41471 LOCKWASHER, (.375)

LOCKWASHER, (.375)

150 ₽
46

99237A27 BRACKET ASSEMBLY, Shift

BRACKET ASSEMBLY, Shift

33 270 ₽
