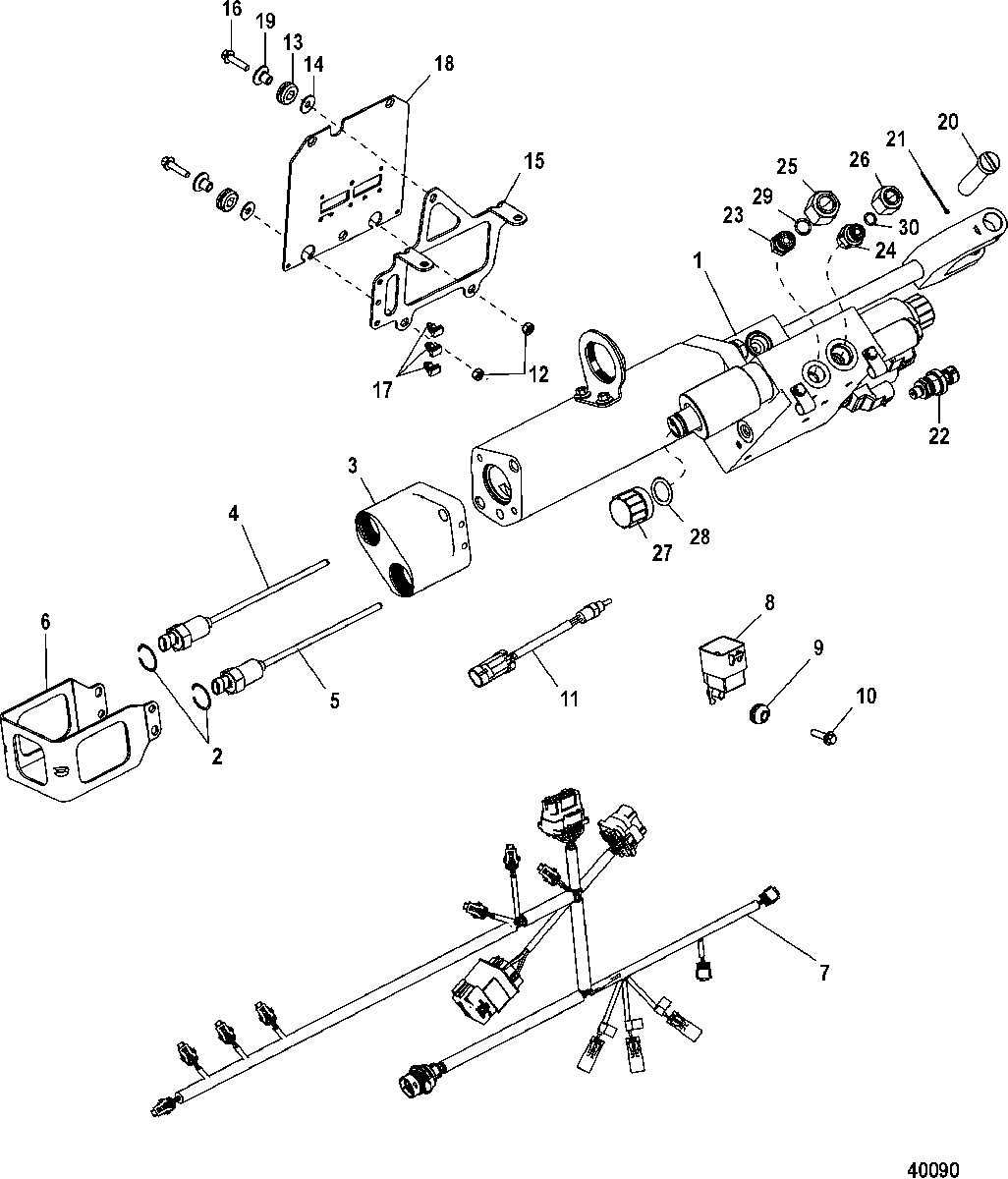

Steering Actuator, Axius (Gen I), Sensors w/ E-Clip/End Cap для Mercruiser - BRAVO X THREE 0W250000 & Up
-
№АртикулНазвание
-
18M0057416 STEERING ACTUATOR ASSEMBLY, Starboard
(Gas) (Refer to Service Bulletin SMC-09-06)STEERING ACTUATOR ASSEMBLY, Starboard
(Gas) (Refer to Service Bulletin SMC-09-06) -
18M0057416 STEERING ACTUATOR ASSEMBLY, Port
(Gas) (Refer to Service Bulletin SMC-09-06)STEERING ACTUATOR ASSEMBLY, Port
(Gas) (Refer to Service Bulletin SMC-09-06) -
18M0057413 STEERING ACTUATOR ASSEMBLY, Starboard
(Diesel)STEERING ACTUATOR ASSEMBLY, Starboard
(Diesel) -
18M0057413 STEERING ACTUATOR ASSEMBLY, Port
(Diesel)STEERING ACTUATOR ASSEMBLY, Port
(Diesel) -
2NSS NOT SOLD SEPARATE, E-ClipNOT SOLD SEPARATE, E-Clip
-
3NSS NOT SOLD SEPARATE, END CAP, Position SensorNOT SOLD SEPARATE, END CAP, Position Sensor
-
4879194A06 SENSOR, Position, Secondary-DecreasingSENSOR, Position, Secondary-Decreasing
-
5879194A07 SENSOR, Position, Primary-DecreasingSENSOR, Position, Primary-Decreasing
-
6NSS NOT SOLD SEPARATE, BRACKET, Position Sensor GuardNOT SOLD SEPARATE, BRACKET, Position Sensor Guard
-
784-879288A07 HARNESSHARNESS
-
8NSS NOT SOLD SEPARATE, RELAYNOT SOLD SEPARATE, RELAY
-
9NSS NOT SOLD SEPARATE, GROMMETNOT SOLD SEPARATE, GROMMET
-
10NSS NOT SOLD SEPARATE, SCREWNOT SOLD SEPARATE, SCREW
-
118M0142542 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
12NSS NOT SOLD SEPARATE, NUTNOT SOLD SEPARATE, NUT
-
1325-834985 GROMMETGROMMET
-
1412-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
15NSS NOT SOLD SEPARATE, BRACKETNOT SOLD SEPARATE, BRACKET
-
16NSS NOT SOLD SEPARATE, SCREWNOT SOLD SEPARATE, SCREW
-
1754-892448 CLIPCLIP
-
18NSS NOT SOLD SEPARATE, THRUST VECTOR MODULENOT SOLD SEPARATE, THRUST VECTOR MODULE
-
1923-856954 BUSHINGBUSHING
-
2017-8M2016468 PIN, ClevisPIN, Clevis
-
2118-8M2014663 PIN, CotterPIN, Cotter
-
228M6001284 TRANSDUCERTRANSDUCER
-
2322-8M2007090 FITTING, (-6) ORF TO ( -8) ORB, Straight
(Gas)FITTING, (-6) ORF TO ( -8) ORB, Straight
(Gas) -
2322-8M2008375 FITTING, Adapter (-6ORF TO -8ORB), 90 Degree
(Diesel)FITTING, Adapter (-6ORF TO -8ORB), 90 Degree
(Diesel) -
2422-8M2015982 FITTING, Adapter (-6ORF TO -8ORB)FITTING, Adapter (-6ORF TO -8ORB)
-
2519-8M2013299 CAPCAP
-
2619-8M2013298 CAPCAP
-
2711-8M2013313 NUTNUT
-
2825-8M2013312 O-RINGO-RING
-
2925-8M2001117 O-RING, (.489 X .070)O-RING, (.489 X .070)
-
3025-8M2004603 O-RINGO-RING
-
-879172A19 DUST CAP KIT
(Refer to Service Bulletin SMC-09-06)DUST CAP KIT
(Refer to Service Bulletin SMC-09-06)
