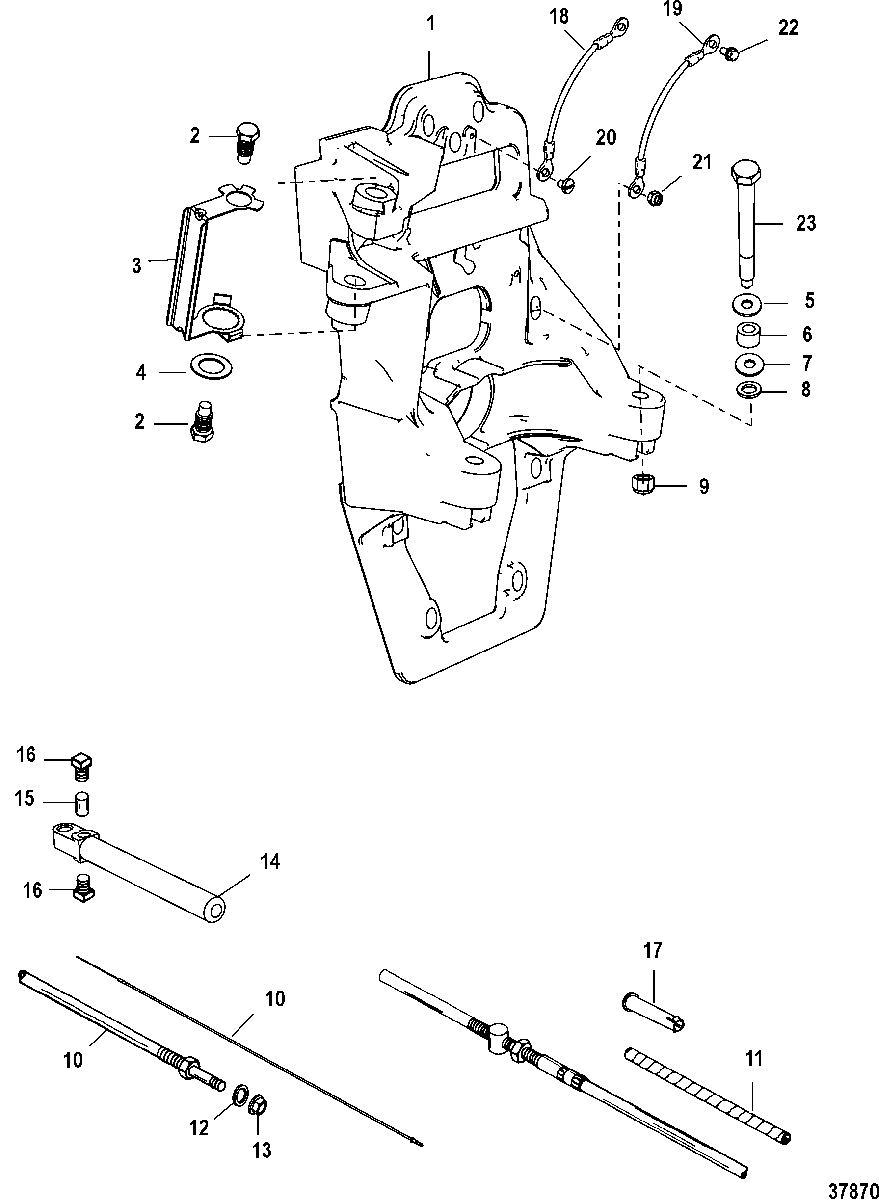

Transom Plate and Shift Cable для Mercruiser - BRAVO X THREE 0W250000 & Up

  • №
    Артикул
    Название
  • 1
    8M0138839 PLATE ASSEMBLY, Transom
    PLATE ASSEMBLY, Transom
  • 2
    10-8M0113173 BOLT, Pivot
    BOLT, Pivot
  • 3
    14-879150A34 WASHER ASSEMBLY, Pivot
    WASHER ASSEMBLY, Pivot
  • 4
    12-8M2010068 WASHER, (.78 x 1.25 x .05) Stainless Steel, Pivot (Bottom)
    WASHER, (.78 x 1.25 x .05) Stainless Steel, Pivot (Bottom)
  • 5
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 6
    23-99299 SPACER, (.520 x .870 x .630)
    SPACER, (.520 x .870 x .630)
  • 7
    12-32834 WASHER, (.9375 x 1.750 x .172)
    WASHER, (.9375 x 1.750 x .172)
  • 8
    12-54012 WASHER, (.530 x .870 x .105) Stainless Steel
    WASHER, (.530 x .870 x .105) Stainless Steel
  • 9
    11-863332 NUT, (.500-20) Aluminum
    NUT, (.500-20) Aluminum
  • 10
    865437A02 CABLE KIT, Shift
    CABLE KIT, Shift
  • 11
    90412 WRAPPING, (1.16 Feet Bulk)
    (Cut As Required)
    WRAPPING, (1.16 Feet Bulk)
    (Cut As Required)
  • 12
    12-815472 WASHER, Sealing
    WASHER, Sealing
  • 13
    11-49910 NUT, (.375-24)
    NUT, (.375-24)
  • -
    43433A01 GUIDE KIT
    GUIDE KIT
  • 14
    43433 GUIDE
    GUIDE
  • 15
    43436 ANCHOR
    ANCHOR
  • 16
    10-20518 SET SCREW, (#8-32)
    SET SCREW, (#8-32)
  • 17
    861632T INSERT
    INSERT
  • 18
    NSS NOT SOLD SEPARATE, CABLE ASSEMBLY-Grounding
    NOT SOLD SEPARATE, CABLE ASSEMBLY-Grounding
  • 19
    NSS NOT SOLD SEPARATE, CABLE ASSEMBLY-Grounding
    NOT SOLD SEPARATE, CABLE ASSEMBLY-Grounding
  • 20
    10-24231 SCREW, (#10-32 x .250)
    SCREW, (#10-32 x .250)
  • 21
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 22
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 23
    10-97934 SCREW, (.500-20 x 5.370) Special
    SCREW, (.500-20 x 5.370) Special
