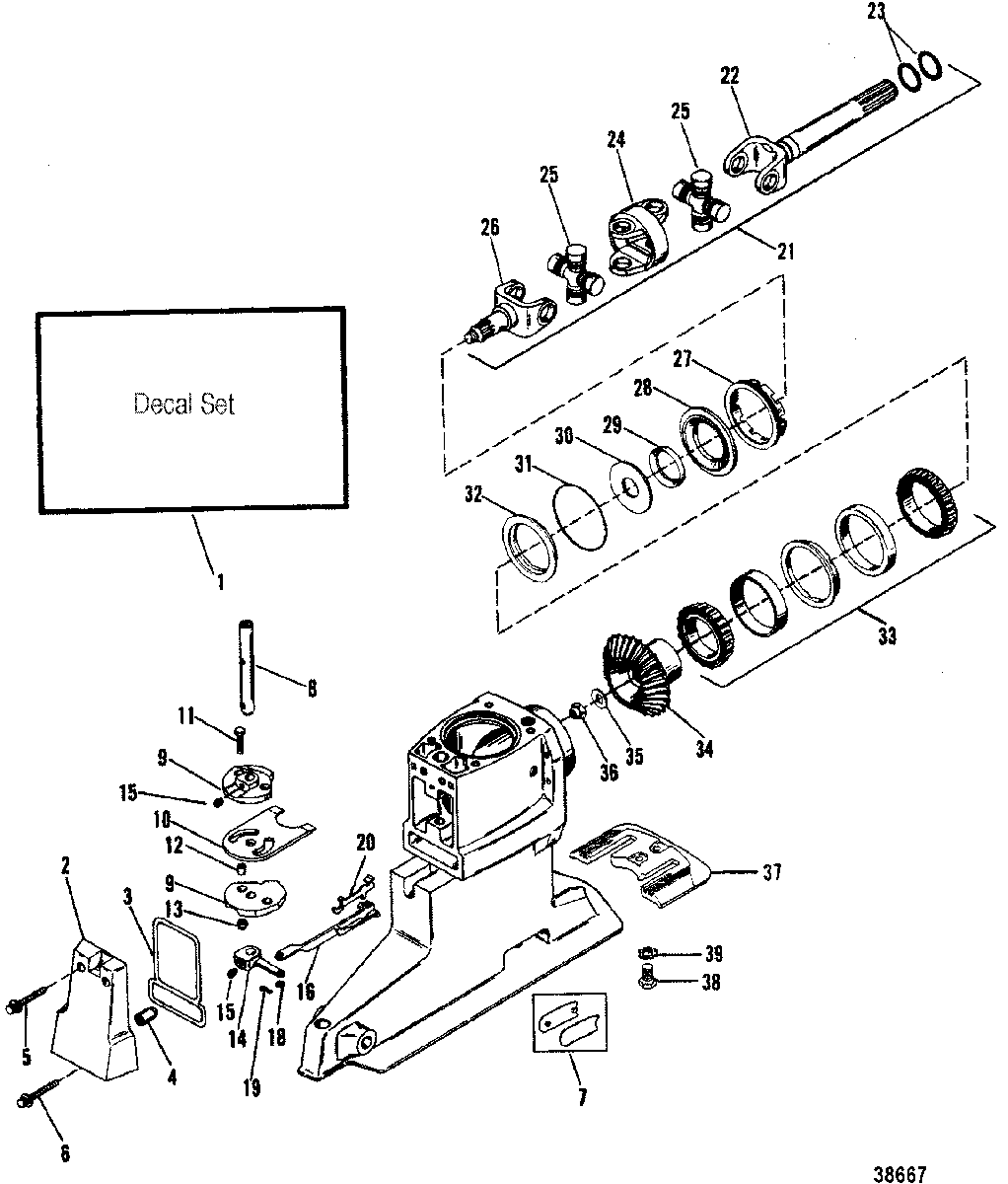

UNIVERSAL JOINT/SHIFTER COMPONENTS для Mercruiser - BRAVO THREE 0B664190 THRU 0F729999

  • №
    Артикул
    Название
  • 1
    37-15167A90 DECAL SET
    (BRAVO I)
    DECAL SET
    (BRAVO I)
  • 1
    37-13722A90 DECAL SET
    (BRAVO II)
    DECAL SET
    (BRAVO II)
  • 1
    37-805338A93 DECAL SET
    (BRAVO III)
    DECAL SET
    (BRAVO III)
  • 2
    12717A1 COVER ASSEMBLY, Rear
    COVER ASSEMBLY, Rear
  • 3
    12708 SEAL
    SEAL
  • 4
    865711A02 DETENT ASSEMBLY
    DETENT ASSEMBLY
  • 5
    10-8M0113174 SCREW, (.375-16 x 1.25)
    SCREW, (.375-16 x 1.25)
  • 6
    10-87158 SCREW, (.375-16 x 1.875)
    SCREW, (.375-16 x 1.875)
  • 7
    805261A1 WEAR PAD KIT
    WEAR PAD KIT
  • 8
    12711 SHAFT
    SHAFT
  • 9
    NSS NOT SOLD SEPARATE, Shifter Cam (Part of Gear Kit)
    SN# 0F345867 & Below
    NOT SOLD SEPARATE, Shifter Cam (Part of Gear Kit)
    SN# 0F345867 & Below
  • 9
    52-807375A1 CLUTCH AND CAM KIT
    (Refer to Service Bulletin 2001-17 for Replacement Parts) SN# 0F345868 & Up
    CLUTCH AND CAM KIT
    (Refer to Service Bulletin 2001-17 for Replacement Parts) SN# 0F345868 & Up
  • 10
    NSS NOT SOLD SEPARATE, Shifter Yoke (Part of Gear Kit)
    SN# 0F345867 & Below
    NOT SOLD SEPARATE, Shifter Yoke (Part of Gear Kit)
    SN# 0F345867 & Below
  • 10
    NSS NOT SOLD SEPARATE, Shifter Yoke
    SN# 0F345868 & Up
    NOT SOLD SEPARATE, Shifter Yoke
    SN# 0F345868 & Up
  • 11
    10-805733 SCREW, (.250-28 x 1.00)
    SCREW, (.250-28 x 1.00)
  • 11
    10-64253 SCREW, (.250-28 x 1.250)
    SCREW, (.250-28 x 1.250)
  • 12
    23-12706 SPACER, (.194 x .375)
    SPACER, (.194 x .375)
  • 13
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 14
    861175A2 LEVER, Shift
    LEVER, Shift
  • 15
    10-38615 SCREW, (.250-28 x .750)
    (Shift Lever)
    SCREW, (.250-28 x .750)
    (Shift Lever)
  • 15
    10-805543 SCREW, (1.25 inch)
    (Shift Cam)
    SCREW, (1.25 inch)
    (Shift Cam)
  • 16
    861175A2 LINK BAR
    LINK BAR
  • 18
    12-20583 WASHER
    WASHER
  • 19
    18-210711 COTTER PIN
    COTTER PIN
  • 20
    86776 LATCH
    LATCH
  • 21
    864244A2 UNIVERSAL JOINT, Coupling Yoke Has 2 O-Rings
    UNIVERSAL JOINT, Coupling Yoke Has 2 O-Rings
  • 22
    59830A7 YOKE ASSEMBLY, Coupling Yoke Has 2 O-Rings
    YOKE ASSEMBLY, Coupling Yoke Has 2 O-Rings
  • 23
    25-25439 O-RING, (.862 x .103), Coupling Yoke Has 2 O-Rings
    O-RING, (.862 x .103), Coupling Yoke Has 2 O-Rings
  • 24
    393831 SOCKET, Center, Coupling Yoke Has 2 O-Rings
    SOCKET, Center, Coupling Yoke Has 2 O-Rings
  • 25
    75832T1 CROSS AND BEARING, Coupling Yoke Has 2 O-Rings
    CROSS AND BEARING, Coupling Yoke Has 2 O-Rings
  • 26
    12784 YOKE, Gear End (Coupling Yoke Has 2 O-Rings)
    YOKE, Gear End (Coupling Yoke Has 2 O-Rings)
  • 21
    864244A2 UNIVERSAL JOINT ASSEMBLY, Coupling Yoke Has 2 O-Rings
    UNIVERSAL JOINT ASSEMBLY, Coupling Yoke Has 2 O-Rings
  • 22
    59830A7 YOKE ASSEMBLY, Coupling Yoke Has 2 O-Rings
    YOKE ASSEMBLY, Coupling Yoke Has 2 O-Rings
  • 23
    25-25439 O-RING, (.862 x .103), Coupling Yoke Has 2 O-Rings
    O-RING, (.862 x .103), Coupling Yoke Has 2 O-Rings
  • 23
    25-35027 O-RING, (1.046), Coupling Yoke Has 2 O-Rings
    O-RING, (1.046), Coupling Yoke Has 2 O-Rings
  • 24
    393831 SOCKET, Center, Coupling Yoke Has 2 O-Rings
    SOCKET, Center, Coupling Yoke Has 2 O-Rings
  • 25
    75832T1 CROSS AND BEARING (COUPLING YOKE HAS 3 O-RINGS)
    CROSS AND BEARING (COUPLING YOKE HAS 3 O-RINGS)
  • 26
    12784 YOKE, Gear End (Coupling Yoke Has 2 O-Rings)
    YOKE, Gear End (Coupling Yoke Has 2 O-Rings)
  • 27
    11-92004 RING NUT
    RING NUT
  • 28
    86779A1 CARRIER ASSEMBLY, Seal
    CARRIER ASSEMBLY, Seal
  • 29
    26-807006 SEAL, Oil
    SEAL, Oil
  • 30
    12-41613 WASHER
    WASHER
  • 31
    25-861844 O-RING, (3.609 x .139)
    O-RING, (3.609 x .139)
  • 32
    86780 RING, Sealing
    RING, Sealing
  • 33
    31-8M0103472 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 34
    43-826642T GEAR (1.50:1 - 2.00:1 Ratio) (1.65:1 Ratio/BRAVO III)
    (27 TEETH - MATES WITH 32 TOOTH DRIVE GEAR)
    GEAR (1.50:1 - 2.00:1 Ratio) (1.65:1 Ratio/BRAVO III)
    (27 TEETH - MATES WITH 32 TOOTH DRIVE GEAR)
  • 34
    43-815661T GEAR, Pinion (1.81:1 - 1.36:1 Ratio)
    (27 TEETH - MATES WITH 29 TOOTH DRIVE GEAR)
    GEAR, Pinion (1.81:1 - 1.36:1 Ratio)
    (27 TEETH - MATES WITH 29 TOOTH DRIVE GEAR)
  • 34
    43-818664 GEAR, Pinion (2.20:1 Ratio) (1.65:1 Ratio/BRAVO I)
    (23 TEETH - MATES WITH 30 TOOTH DRIVE GEAR)
    GEAR, Pinion (2.20:1 Ratio) (1.65:1 Ratio/BRAVO I)
    (23 TEETH - MATES WITH 30 TOOTH DRIVE GEAR)
  • 35
    12-44539 WASHER
    WASHER
  • 36
    11-22339 NUT, (.625-18)
    NUT, (.625-18)
  • 37
    97-821630Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 38
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 39
    13-35479 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • -
    26-16709A2 SEAL KIT
    SEAL KIT
