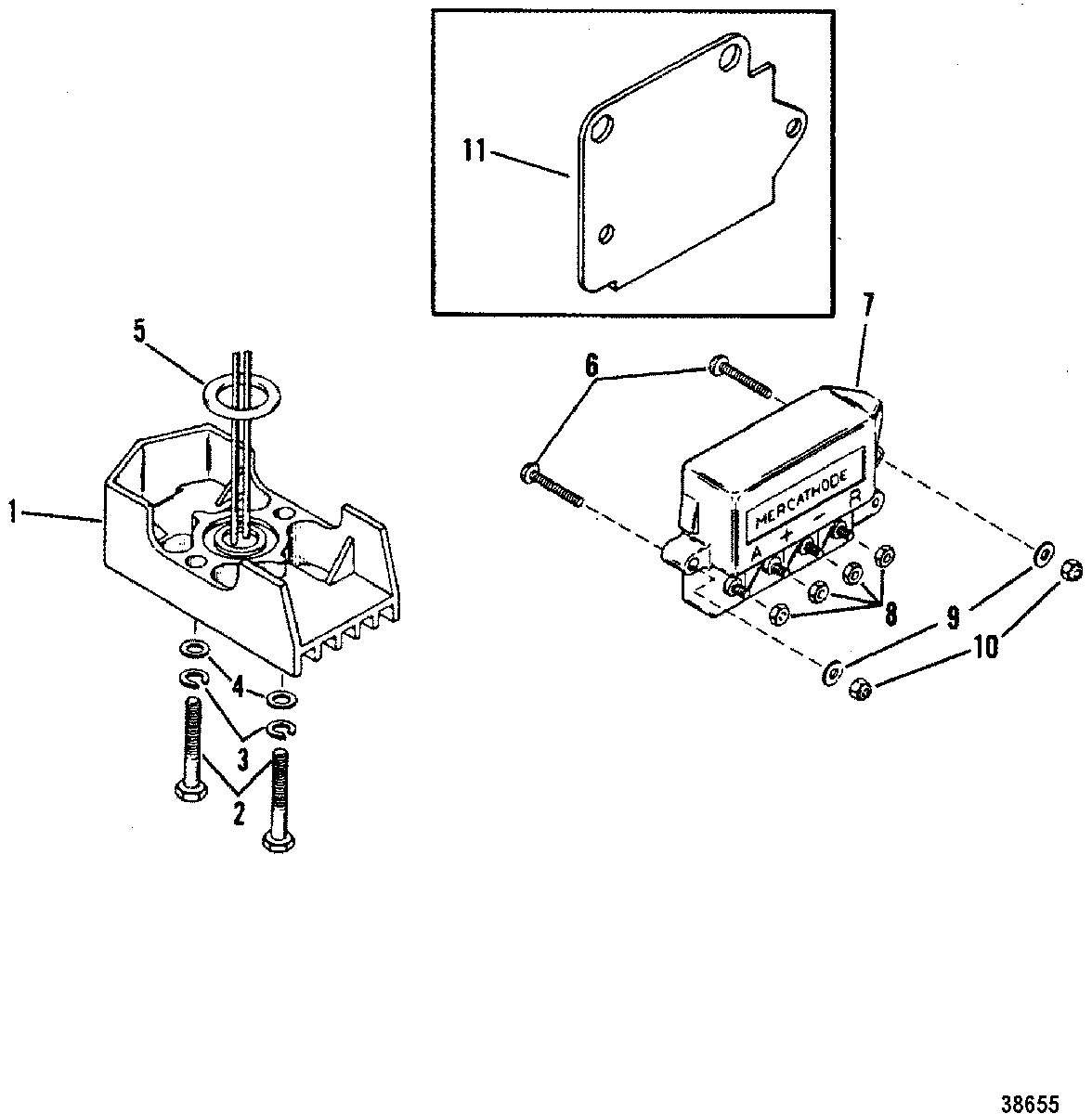

MERCATHODE KIT для Mercruiser - BRAVO THREE 0B664190 THRU 0F729999

  • №
    Артикул
    Название
  • 1
    8M0085692 ELECTRODE ASSEMBLY
    ELECTRODE ASSEMBLY
  • 2
    10-69067 SCREW, (.250-20 x 1.375)
    SCREW, (.250-20 x 1.375)
  • 3
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 4
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 5
    25-88388 O-RING
    (DESIGN 1)
    O-RING
    (DESIGN 1)
  • 5
    25-805294 GROMMET
    GROMMET
  • 6
    82202 SCREW, (1.25 inch)
    SCREW, (1.25 inch)
  • 6
    10-45862 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 7
    42600A09 CONTROLLER ASSEMBLY
    CONTROLLER ASSEMBLY
  • 8
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 9
    12-21273 WASHER
    WASHER
  • 10
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
  • 11
    806138T BRACKET
    (USED ON MCM 7.3L DIESEL)
    BRACKET
    (USED ON MCM 7.3L DIESEL)
