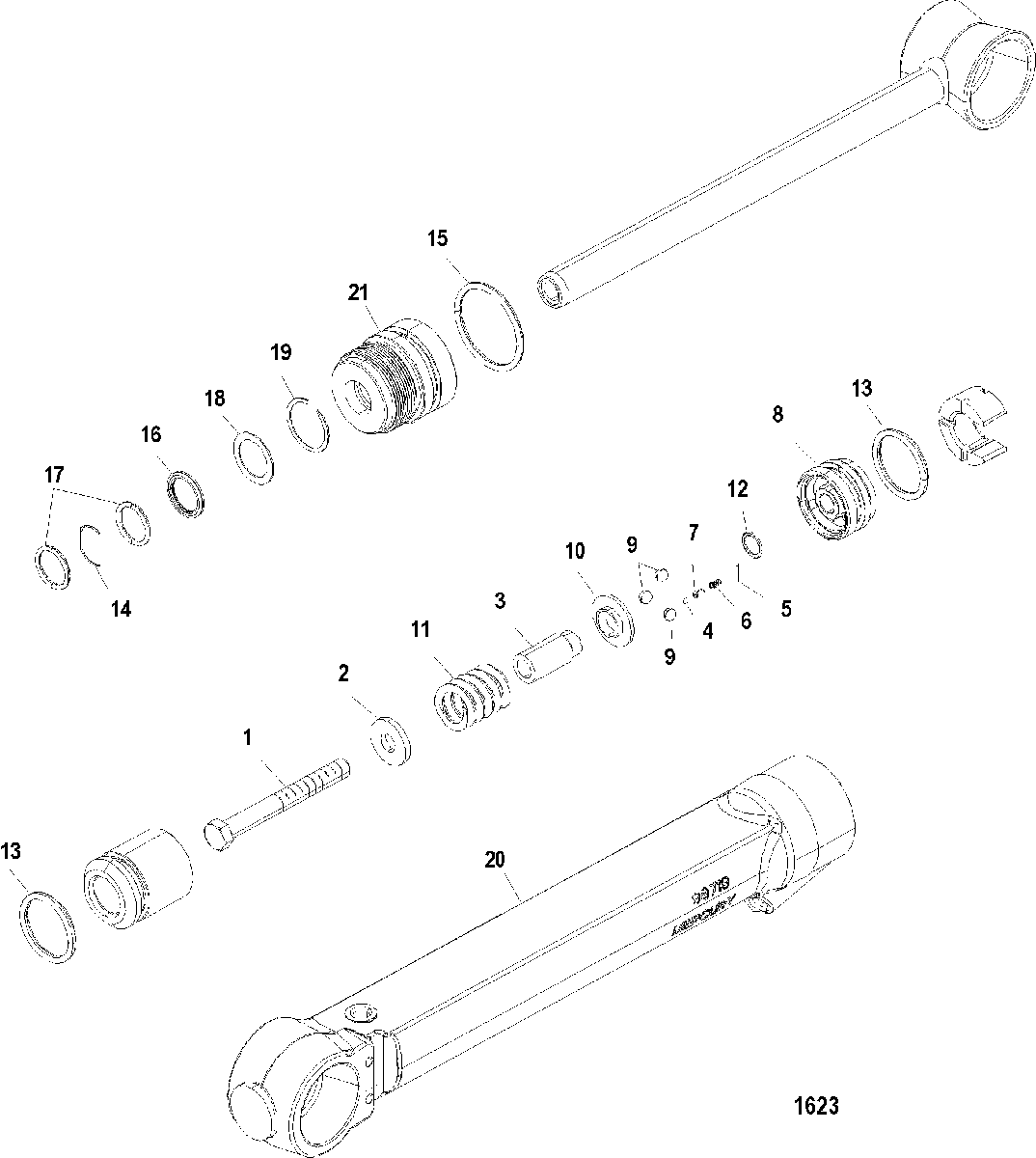

POWER TRIM CYLINDER REPAIR KITS для Mercruiser - BRAVO THREE 0B664190 THRU 0F729999

  • №
    Артикул
    Название
  • --
    87399A2 OVERHAUL KIT
    OVERHAUL KIT
  • 1
    N.S.S. Not Sold Separate, SCREW
    Not Sold Separate, SCREW
  • 2
    N.S.S. Not Sold Separate, WASHER
    Not Sold Separate, WASHER
  • 3
    N.S.S. Not Sold Separate, GUIDE
    Not Sold Separate, GUIDE
  • 4
    N.S.S. Not Sold Separate, STEEL BALL (.109 Diameter)
    Not Sold Separate, STEEL BALL (.109 Diameter)
  • 5
    N.S.S. Not Sold Separate, PIN
    Not Sold Separate, PIN
  • 6
    N.S.S. Not Sold Separate, SPRING
    Not Sold Separate, SPRING
  • 7
    N.S.S. Not Sold Separate, EYELET
    Not Sold Separate, EYELET
  • 8
    N.S.S. Not Sold Separate, PISTON
    Not Sold Separate, PISTON
  • 9
    N.S.S. Not Sold Separate, BALL (.250 Diameter)
    Not Sold Separate, BALL (.250 Diameter)
  • 10
    N.S.S. Not Sold Separate, PUSHER
    Not Sold Separate, PUSHER
  • 11
    N.S.S. Not Sold Separate, SPRING
    Not Sold Separate, SPRING
  • --
    25-87400A2 SEAL KIT
    SEAL KIT
  • 12
    N.S.S. Not Sold Separate, O-RING
    Not Sold Separate, O-RING
  • 13
    N.S.S. Not Sold Separate, O-RING
    Not Sold Separate, O-RING
  • 14
    N.S.S. Not Sold Separate, SPRING
    Not Sold Separate, SPRING
  • 15
    N.S.S. Not Sold Separate, O-RING
    Not Sold Separate, O-RING
  • 16
    N.S.S. Not Sold Separate, SCRAPER ROD
    Not Sold Separate, SCRAPER ROD
  • 17
    N.S.S. Not Sold Separate, O-RING
    Not Sold Separate, O-RING
  • 18
    N.S.S. Not Sold Separate, WASHER
    Not Sold Separate, WASHER
  • 19
    N.S.S. Not Sold Separate, RETAINING RING
    Not Sold Separate, RETAINING RING
  • 20
    98703T TUBE, Port Cylinder
    TUBE, Port Cylinder
  • 20
    98704T TUBE, Starboard Cylinder
    TUBE, Starboard Cylinder
  • 21
    98-8M0118340 CAP
    CAP
