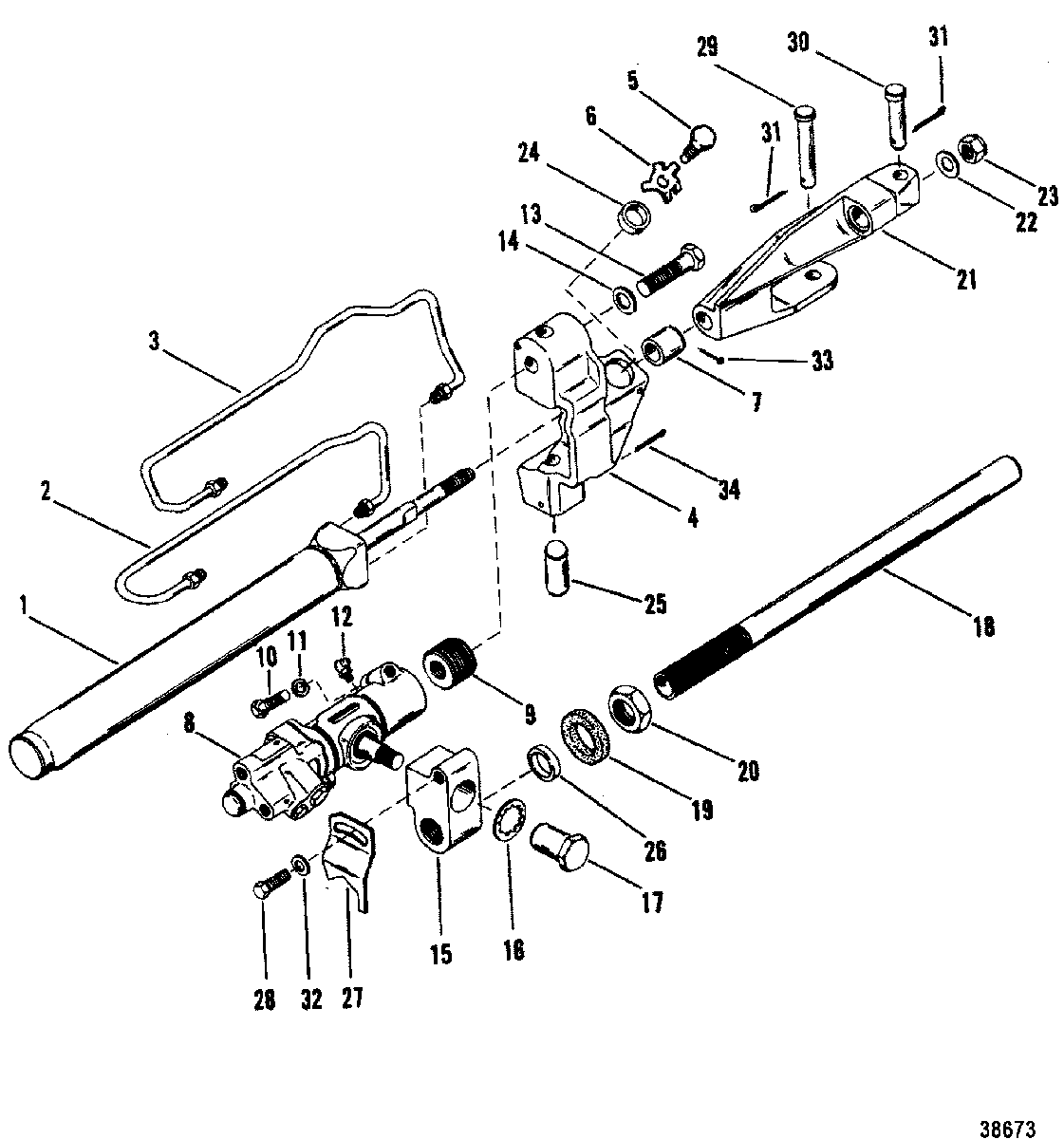

POWER STEERING COMPONENTS(OLD DESIGN) для Mercruiser - BRAVO THREE 0B664190 THRU 0F729999

  • №
    Артикул
    Название
  • 1
    57969A12 CYLINDER ASSEMBLY, Booster (25-58224A1 SEAL REPAIR KIT)
    CYLINDER ASSEMBLY, Booster (25-58224A1 SEAL REPAIR KIT)
  • 2
    32-92054 TUBE, Extending
    TUBE, Extending
  • 3
    32-92055 TUBE, Retracting
    TUBE, Retracting
  • 4
    94953A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 5
    10-8M0113173 BOLT
    BOLT
  • 6
    14-42254 WASHER
    WASHER
  • 7
    23-88282 SLEEVE
    SLEEVE
  • 8
    816458A1 VALVE ASSEMBLY (25-58226A1 SEAL REPAIR KIT)
    VALVE ASSEMBLY (25-58226A1 SEAL REPAIR KIT)
  • 9
    88280 ADAPTOR
    ADAPTOR
  • 10
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 1 1
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 12
    22-67305 FITTING, Grease
    FITTING, Grease
  • 13
    10-88281 SCREW, (.500-20 x 1.750)
    SCREW, (.500-20 x 1.750)
  • 14
    12-20959 WASHER
    WASHER
  • 15
    88285 ADAPTOR
    ADAPTOR
  • 16
    13-76629 LOCKWASHER, Internal Tooth (.750)
    LOCKWASHER, Internal Tooth (.750)
  • 17
    11-55111 NUT
    NUT
  • 18
    96511 TUBE ASSEMBLY, Steering
    TUBE ASSEMBLY, Steering
  • 19
    88287 GUIDE
    GUIDE
  • 20
    11-32882 NUT, (.875-14)
    NUT, (.875-14)
  • 21
    95848A1 CLEVIS ASSEMBLY
    CLEVIS ASSEMBLY
  • 22
    12-20086 WASHER, (.390 x .620 x .060)
    WASHER, (.390 x .620 x .060)
  • 23
    11-53300 NUT, (.375-24)
    NUT, (.375-24)
  • 24
    23-95803 BUSHING
    BUSHING
  • 25
    17-88283 PIN, Retaining
    PIN, Retaining
  • 26
    23-88286 BUSHING
    BUSHING
  • 27
    92766 LOCK
    LOCK
  • 28
    10-41209 SCREW
    SCREW
  • 29
    17-89229 PIN, Clevis
    PIN, Clevis
  • 30
    17-52798 PIN, Clevis
    PIN, Clevis
  • 31
    18-46950 COTTER PIN
    COTTER PIN
  • 32
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 33
    18-34212 COTTER PIN
    COTTER PIN
  • 34
    8M0063381 ACTUATOR ASSEMBLY, Power Steering
    ACTUATOR ASSEMBLY, Power Steering
