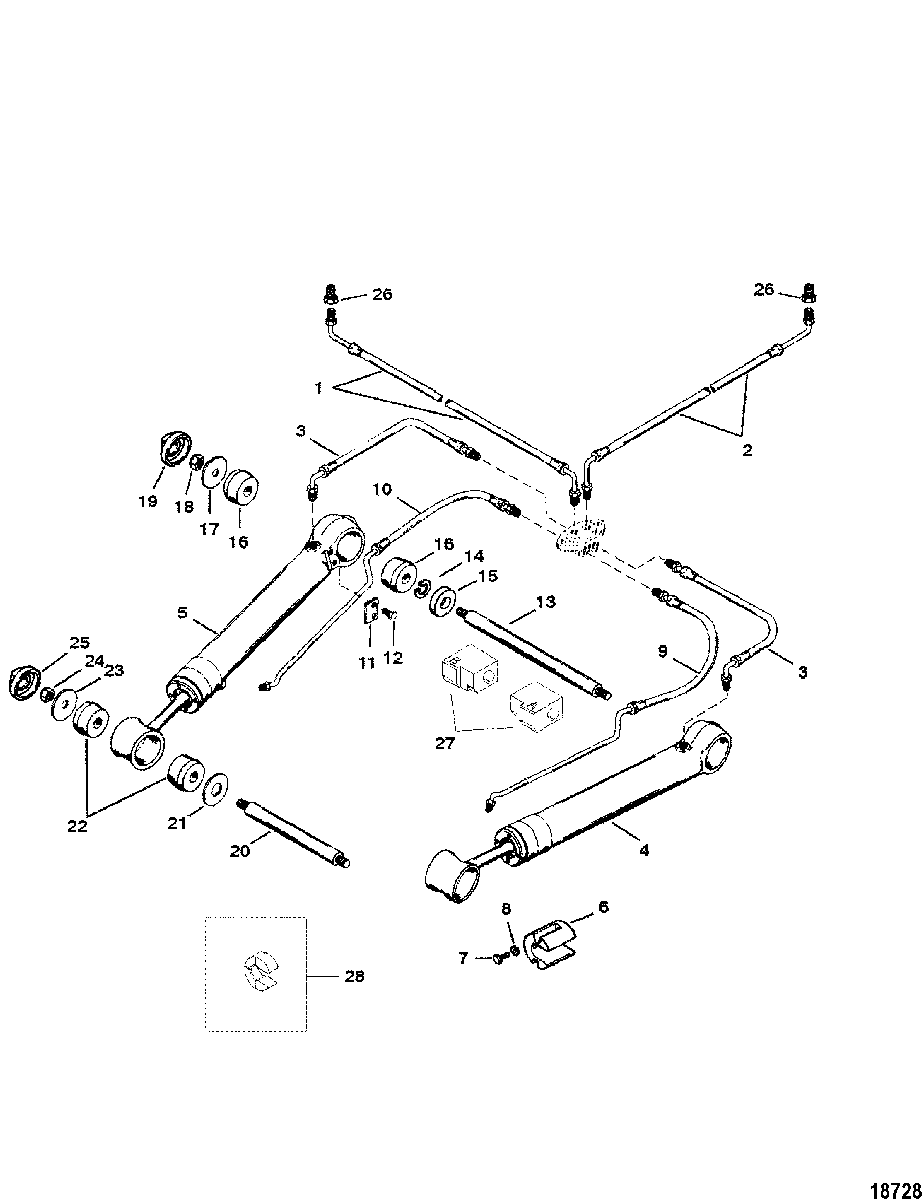

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercruiser - BRAVO ONE 0B664190 THRU 0F729999

  • №
    Артикул
    Название
  • 1
    32-861127 HOSE, Black, Hydraulic
    (CONNECTOR TO PUMP)
    HOSE, Black, Hydraulic
    (CONNECTOR TO PUMP)
  • 2
    32-861128 HOSE, Gray, Hydraulic
    (CONNECTOR TO PUMP)
    HOSE, Gray, Hydraulic
    (CONNECTOR TO PUMP)
  • 3
    32-99904Q HOSE
    (TRIM CYLINDER TO CONNECTOR)
    HOSE
    (TRIM CYLINDER TO CONNECTOR)
  • 4
    8M0132610 TRIM CYLINDER, Starboard
    TRIM CYLINDER, Starboard
  • 5
    8M0132609 TRIM CYLINDER, Port
    TRIM CYLINDER, Port
  • 6
    97-806190Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 7
    10-806290 SCREW, (#10-32 x .625)
    SCREW, (#10-32 x .625)
  • 8
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
  • --
    87399A2 OVERHAUL KIT
    OVERHAUL KIT
  • --
    25-87400A2 SEAL KIT
    SEAL KIT
  • 9
    32-864589 HOSE, Trim Cylinder, Starboard
    HOSE, Trim Cylinder, Starboard
  • 10
    32-864588 HOSE, Trim Cylinder, Port
    HOSE, Trim Cylinder, Port
  • 11
    85060 PLATE
    PLATE
  • 12
    10-85486 SCREW, (.250-20 x .380) Stainless Steel
    SCREW, (.250-20 x .380) Stainless Steel
  • 13
    17-44167A1 PIN
    PIN
  • 14
    53-805272 RING, Retaining
    RING, Retaining
  • 15
    12-44164 WASHER
    WASHER
  • 16
    23-807073 BUSHING
    BUSHING
  • 17
    12-44163 WASHER, (.450 x 1.75 x .12)
    WASHER, (.450 x 1.75 x .12)
  • 18
    11-859116 NUT, (.4375-20)
    NUT, (.4375-20)
  • 19
    19-14842 CAP
    CAP
  • 20
    17-44166 PIN
    PIN
  • 21
    12-44164 WASHER
    WASHER
  • 22
    23-807073 BUSHING
    BUSHING
  • 23
    12-44163 WASHER, (.450 x 1.75 x .12)
    WASHER, (.450 x 1.75 x .12)
  • 24
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 25
    19-14842 CAP
    CAP
  • 26
    22-805118 FITTING, (.4375 UNS x .4375 Inverted Flare), Without Screen
    FITTING, (.4375 UNS x .4375 Inverted Flare), Without Screen
  • 26
    22-808727 CONNECTOR, (.50-20 UNF To .4375-24 Inverted Flare), With Screen
    CONNECTOR, (.50-20 UNF To .4375-24 Inverted Flare), With Screen
