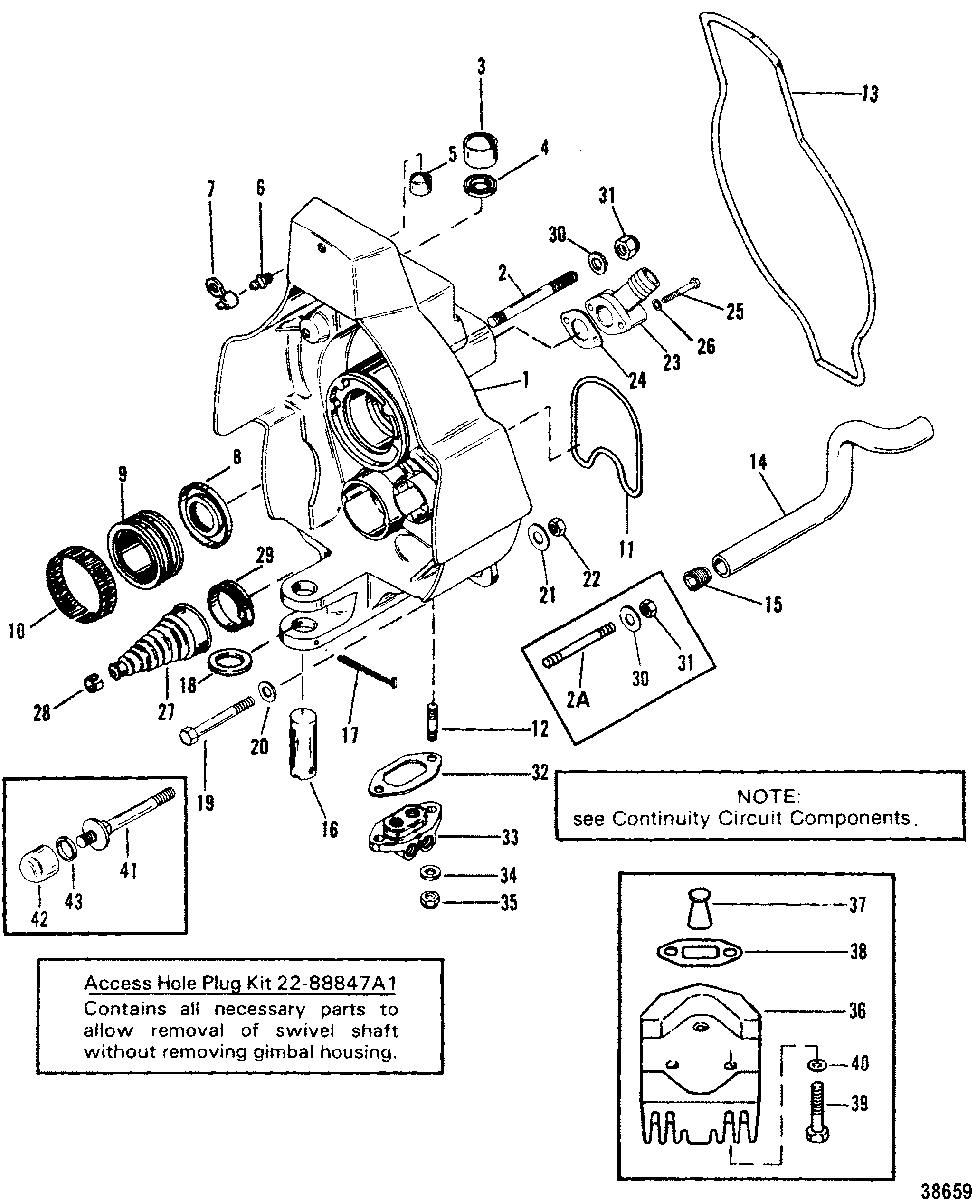

GIMBAL HOUSING для Mercruiser - BRAVO ONE 0B664190 THRU 0F729999

  • №
    Артикул
    Название
  • 1
    8M0096216 GIMBAL HOUSING ASSEMBLY
    GIMBAL HOUSING ASSEMBLY
  • 2
    16-56296 STUD, (.437-20 x 4.750)
    STUD, (.437-20 x 4.750)
  • 2A
    16-818834 STUD, (.437-20 x 4.250)
    (NEW DESIGN)
    STUD, (.437-20 x 4.250)
    (NEW DESIGN)
  • 3
    23-983571 BUSHING, Lower
    BUSHING, Lower
  • 4
    26-8M2005029 SEAL, Oil
    SEAL, Oil
  • 5
    23-98356 BUSHING, Upper
    BUSHING, Upper
  • 6
    22-74036 FITTING, Grease
    (Use with greased bearing)
    FITTING, Grease
    (Use with greased bearing)
  • 6
    10-8M2015913 PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
    PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
  • 7
    19-77633Q LUBRICAP
    LUBRICAP
  • 8
    26-88416 SEAL, Oil
    SEAL, Oil
  • 9
    30-879194A02 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 10
    61075 TOLERANCE RING
    TOLERANCE RING
  • 11
    41802 SEAL, Rubber, Exhaust Pipe
    SEAL, Rubber, Exhaust Pipe
  • 12
    16-56766 STUD, (.250-20/.250-28 x 1.380)
    STUD, (.250-20/.250-28 x 1.380)
  • 13
    43713 SEAL
    SEAL
  • 14
    32-8M0090859 HOSE
    HOSE
  • 15
    41674T INSERT
    INSERT
  • 16
    17-8M0073409 SWIVEL PIN, Lower
    SWIVEL PIN, Lower
  • 17
    18-54929 COTTER PIN
    COTTER PIN
  • 18
    12-32518 WASHER
    WASHER
  • 19
    10-43691 BOLT, (.500-13 x 4.00)
    (OLD DESIGN)
    BOLT, (.500-13 x 4.00)
    (OLD DESIGN)
  • 20
    12-32620 WASHER
    (OLD DESIGN)
    WASHER
    (OLD DESIGN)
  • 21
    12-21900 WASHER
    (OLD DESIGN)
    WASHER
    (OLD DESIGN)
  • 22
    11-34087 NUT
    (OLD DESIGN)
    NUT
    (OLD DESIGN)
  • 23
    22-8M0081543 CONNECTOR
    CONNECTOR
  • 24
    27-8M0109475 GASKET
    GASKET
  • 25
    10-78038 SCREW, (.250-20 x 1.75)
    SCREW, (.250-20 x 1.75)
  • 26
    13-21272 LOCKWASHER, (.250)
    LOCKWASHER, (.250)
  • 27
    74639A2 BELLOWS, Shift Cable
    BELLOWS, Shift Cable
  • 28
    54-8M0090424 CLAMP
    CLAMP
  • 29
    54-815504320 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 30
    12-34567 WASHER
    WASHER
  • 31
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 32
    27-988231 GASKET
    GASKET
  • 33
    8M0137703 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 34
    13-78968 LOCKWASHER, Internal (.250)
    LOCKWASHER, Internal (.250)
  • 35
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 36
    97-821631Q1 ANODE ASSEMBLY
    (OLD DESIGN)
    ANODE ASSEMBLY
    (OLD DESIGN)
  • 37
    12077 SEAL
    (OLD DESIGN)
    SEAL
    (OLD DESIGN)
  • 38
    27-995061 GASKET
    (OLD DESIGN)
    GASKET
    (OLD DESIGN)
  • 39
    10-86885 SCREW, (.250-20 x 1.500) Stainless Steel
    (OLD DESIGN)
    SCREW, (.250-20 x 1.500) Stainless Steel
    (OLD DESIGN)
  • 40
    13-78968 LOCKWASHER, Internal (.250)
    (OLD DESIGN)
    LOCKWASHER, Internal (.250)
    (OLD DESIGN)
  • 41
    8M0030655 BOLT ASSEMBLY, Anodic
    (OLD DESIGN)
    BOLT ASSEMBLY, Anodic
    (OLD DESIGN)
  • 42
    97-55989Q9 ANODE KIT
    (OLD DESIGN)
    ANODE KIT
    (OLD DESIGN)
  • 43
    12-56085 WASHER
    (OLD DESIGN)
    WASHER
    (OLD DESIGN)
