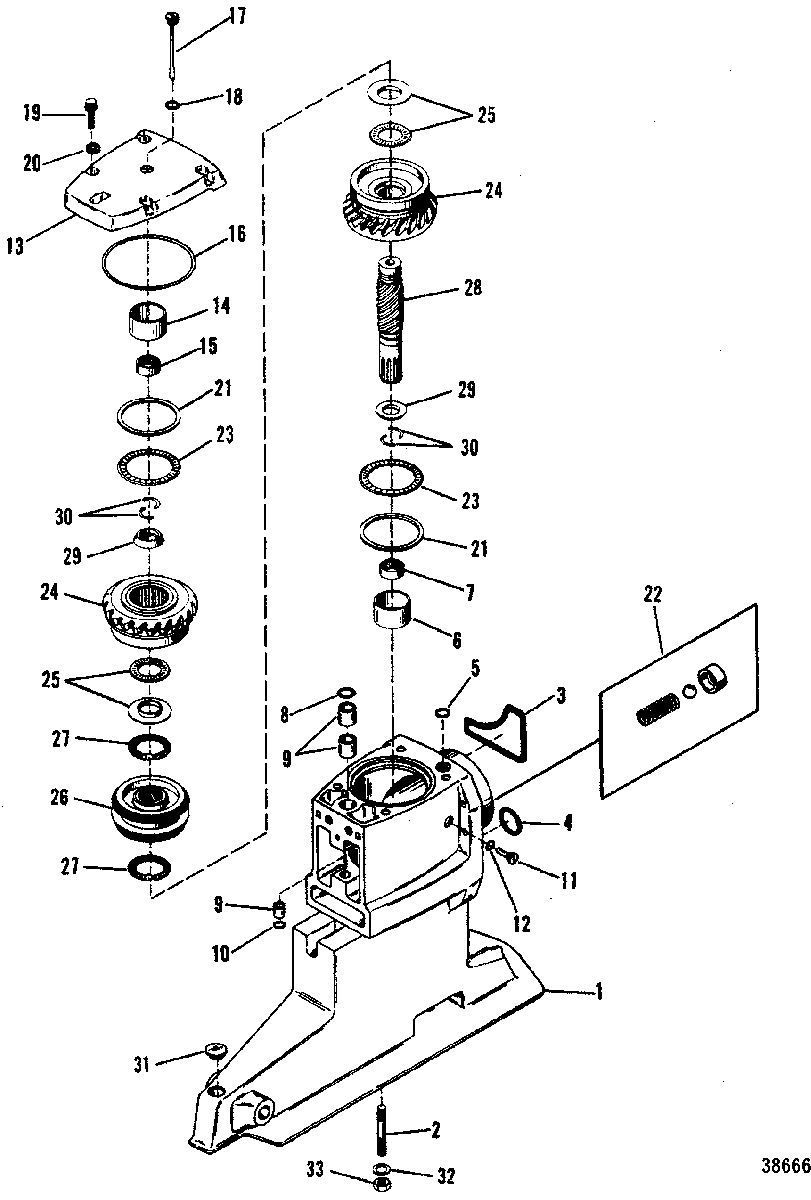

DRIVESHAFT HOUSING AND DRIVE GEARS для Mercruiser - BRAVO ONE 0B664190 THRU 0F729999

  • №
    Артикул
    Название
  • 1
    1589-8868A15 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 1
    1589-8868G21 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    16-8M0133358 STUD, (.437-14/.437-20 x 2.060)
    STUD, (.437-14/.437-20 x 2.060)
  • 3
    16755Q1 SEAL
    SEAL
  • 4
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
  • 5
    25-62706 O-RING, (.426 x .070)
    (OLD DESIGN)
    O-RING, (.426 x .070)
    (OLD DESIGN)
  • 6
    31-815900 BEARING
    BEARING
  • 7
    31-87156 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 8
    25-62705 O-RING
    O-RING
  • 9
    23-861209A1 BUSHING KIT
    BUSHING KIT
  • 10
    26-127091 SEAL, Oil
    SEAL, Oil
  • 11
    22-8M0058389 SCREW
    SCREW
  • 12
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 13
    92068A2 TOP COVER, O-Ring on DSH
    TOP COVER, O-Ring on DSH
  • 13
    92068A6 TOP COVER, O-Ring on Top Cover
    TOP COVER, O-Ring on Top Cover
  • 14
    31-815900 BEARING
    BEARING
  • 15
    31-87156 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 16
    25-97387 O-RING
    O-RING
  • 17
    86774A1 DIPSTICK ASSEMBLY
    (OLD DESIGN)
    DIPSTICK ASSEMBLY
    (OLD DESIGN)
  • 18
    12-191833 WASHER, Fiber
    (OLD DESIGN)
    WASHER, Fiber
    (OLD DESIGN)
  • 19
    10-8M0113174 SCREW, (.375-16 x 1.25)
    SCREW, (.375-16 x 1.25)
  • 21
    23-87560091 BEARING, Thrust (.091), Red
    BEARING, Thrust (.091), Red
  • 21
    23-87560094 BEARING, Thrust (.094), Light Blue
    BEARING, Thrust (.094), Light Blue
  • 21
    23-87560097 BEARING, Thrust (.097), Green
    BEARING, Thrust (.097), Green
  • 22
    24-17997A1 SPRING KIT
    SPRING KIT
  • 23
    31-86771 BEARING, Thrust
    BEARING, Thrust
  • 24
    43-883473A4 GEAR KIT, 32 TEETH:(1.5:1 - 2.00:1 Ratio) (1.65:1 Ratio/BRAVO III)
    SN# 0F345867 & Below
    GEAR KIT, 32 TEETH:(1.5:1 - 2.00:1 Ratio) (1.65:1 Ratio/BRAVO III)
    SN# 0F345867 & Below
  • 24
    43-883476A4 GEAR KIT, 29 TEETH: (1.81:1 - 1.36:1 Ratio)
    SN# 0F345867 & Below
    GEAR KIT, 29 TEETH: (1.81:1 - 1.36:1 Ratio)
    SN# 0F345867 & Below
  • 24
    43-883479A4 GEAR KIT, 30 TEETH: (2.20:1 Ratio) (1.65:1 Ratio/BRAVO III)
    SN# 0F345867 & Below
    GEAR KIT, 30 TEETH: (2.20:1 Ratio) (1.65:1 Ratio/BRAVO III)
    SN# 0F345867 & Below
  • 24
    43-883473A3 GEAR, 32 Teeth:(1.50-2.00:1 Ratio) (1.65:1 Ratio Bravo III)
    SN# 0F345868 & Up
    GEAR, 32 Teeth:(1.50-2.00:1 Ratio) (1.65:1 Ratio Bravo III)
    SN# 0F345868 & Up
  • 24
    43-883476A3 GEAR, 29 Teeth:(1.81:1-1.36.1 Ratio)
    SN# 0F345868 & Up
    GEAR, 29 Teeth:(1.81:1-1.36.1 Ratio)
    SN# 0F345868 & Up
  • 24
    43-883479A3 GEAR, 30 Teeth:(2.20:1 Ratio) (1.65:1 Ratio Bravo I)
    SN# 0F345868 & Up
    GEAR, 30 Teeth:(2.20:1 Ratio) (1.65:1 Ratio Bravo I)
    SN# 0F345868 & Up
  • 25
    31-86768A2 BEARING ASSEMBLY, Thrust
    BEARING ASSEMBLY, Thrust
  • 26
    NSS NOT SOLD SEPARATE, CLUTCH AND CAM KIT
    NOT SOLD SEPARATE, CLUTCH AND CAM KIT
  • 26
    52-807375A1 CLUTCH AND CAM KIT, Refer To Service Bulletin 2001-17 For Replacement Parts
    SN# 0F345868 & Up
    CLUTCH AND CAM KIT, Refer To Service Bulletin 2001-17 For Replacement Parts
    SN# 0F345868 & Up
  • 27
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 28
    45-812773T DRIVESHAFT, Upper
    (Must Use 2 Thrust Collars and 4 Keepers)
    DRIVESHAFT, Upper
    (Must Use 2 Thrust Collars and 4 Keepers)
  • 28
    45-812773T DRIVESHAFT, Upper
    (Must Use 2 Thrust Collars and 4 Keepers)
    DRIVESHAFT, Upper
    (Must Use 2 Thrust Collars and 4 Keepers)
  • 29
    23-86770 COLLAR
    (Must Use 2 Thrust Collars and 4 Keepers)
    COLLAR
    (Must Use 2 Thrust Collars and 4 Keepers)
  • 29
    23-86770 COLLAR
    (Must Use 2 Thrust Collars and 4 Keepers)
    COLLAR
    (Must Use 2 Thrust Collars and 4 Keepers)
  • 30
    97351 KEEPER
    (Must Use 2 Thrust Collars and 4 Keepers)
    KEEPER
    (Must Use 2 Thrust Collars and 4 Keepers)
  • 30
    97351 KEEPER
    (Must Use 2 Thrust Collars and 4 Keepers)
    KEEPER
    (Must Use 2 Thrust Collars and 4 Keepers)
  • 31
    19-824928001 PLUG
    PLUG
  • 32
    12-861854 WASHER
    WASHER
  • 33
    11-35053 NUT, (.437-20)
    NUT, (.437-20)
